Spitfire – Maintenance Manual
94
AP-74096, Rev. 1.0, 09/06/05

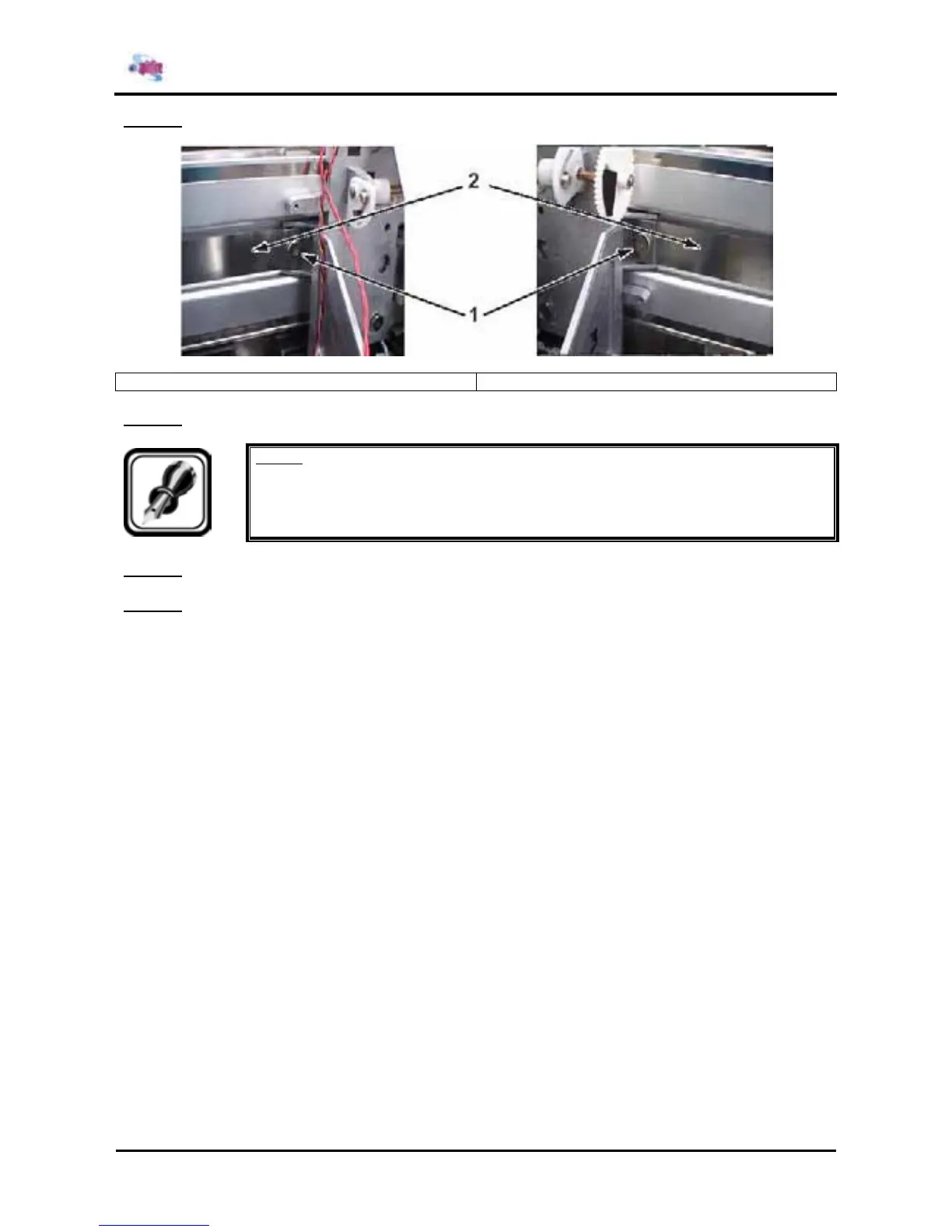

Step 4 : Remove the 2 screws fixing the steel belt.
1 = Screws fixing the steel belt 2 = Steel belt
Step 5 : Replace the steel belt.
Notes :
¾ Be careful when handling the steel belt. The steel belt may be cut off when
accreting dust to it or creasing it.
Step 6 : Reinstall all parts in the opposite order of the removal procedure.
Step 7 : Perform steel belt tension adjustment according to "Steel belt tension adjustment".
