Spitfire – Maintenance Manual
226
AP-74096, Rev. 1.0, 09/06/05
Notes :

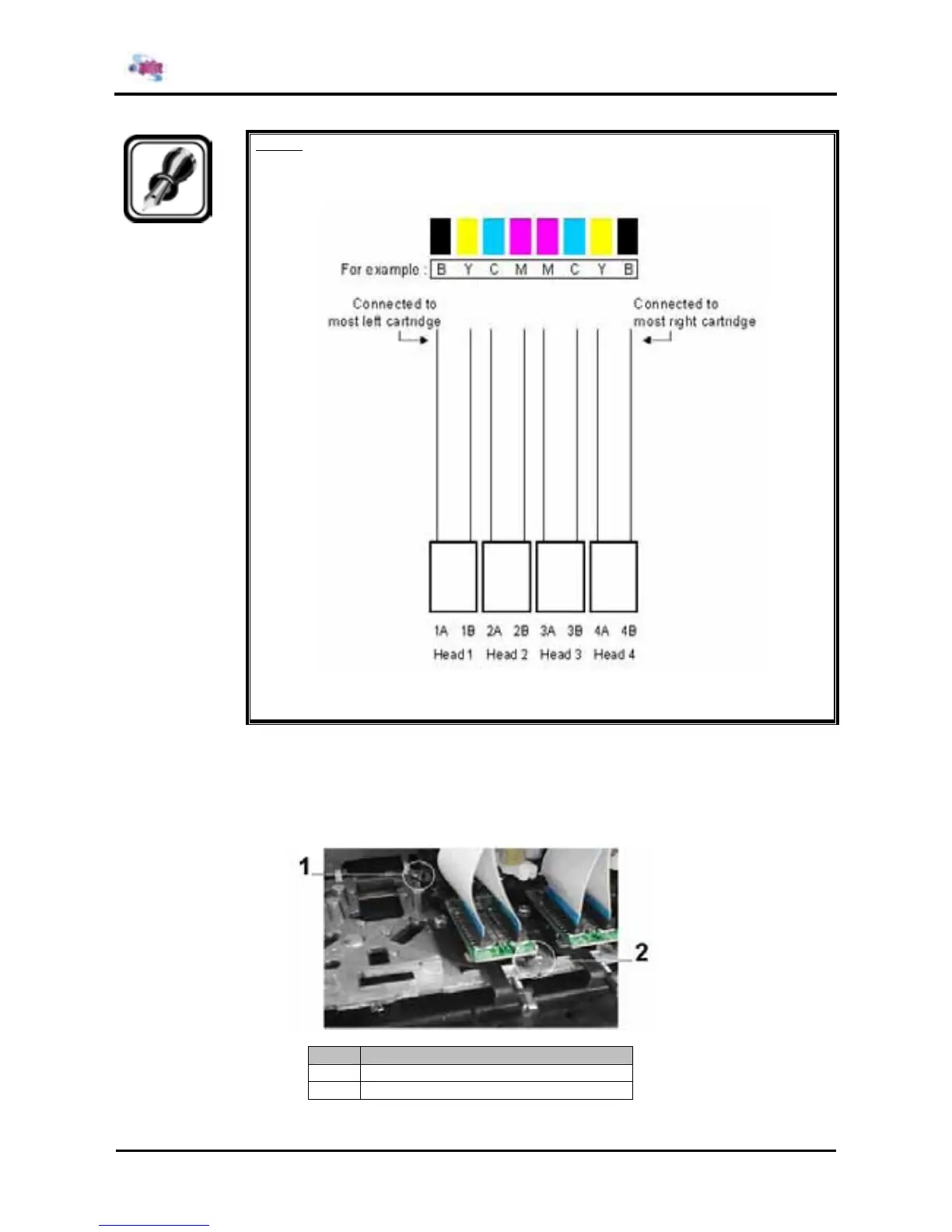

To help you identify the print heads on the test pattern please refer to the diagram
below.
Know you see, 1A is Black, 1B is Yellow, etc (in our color combination).
Step 4 : Check if all nozzles are in 1 row by using a magnifying glass with an enlargement of at least 10.
If not, please proceed to step 5.
Step 5 : Loosen the screw with 1 turn, which secures the Head Fixing Plate.
No. Part
1 Head Fixing plate securing screw
2 Front/Back Adjustment Screw
