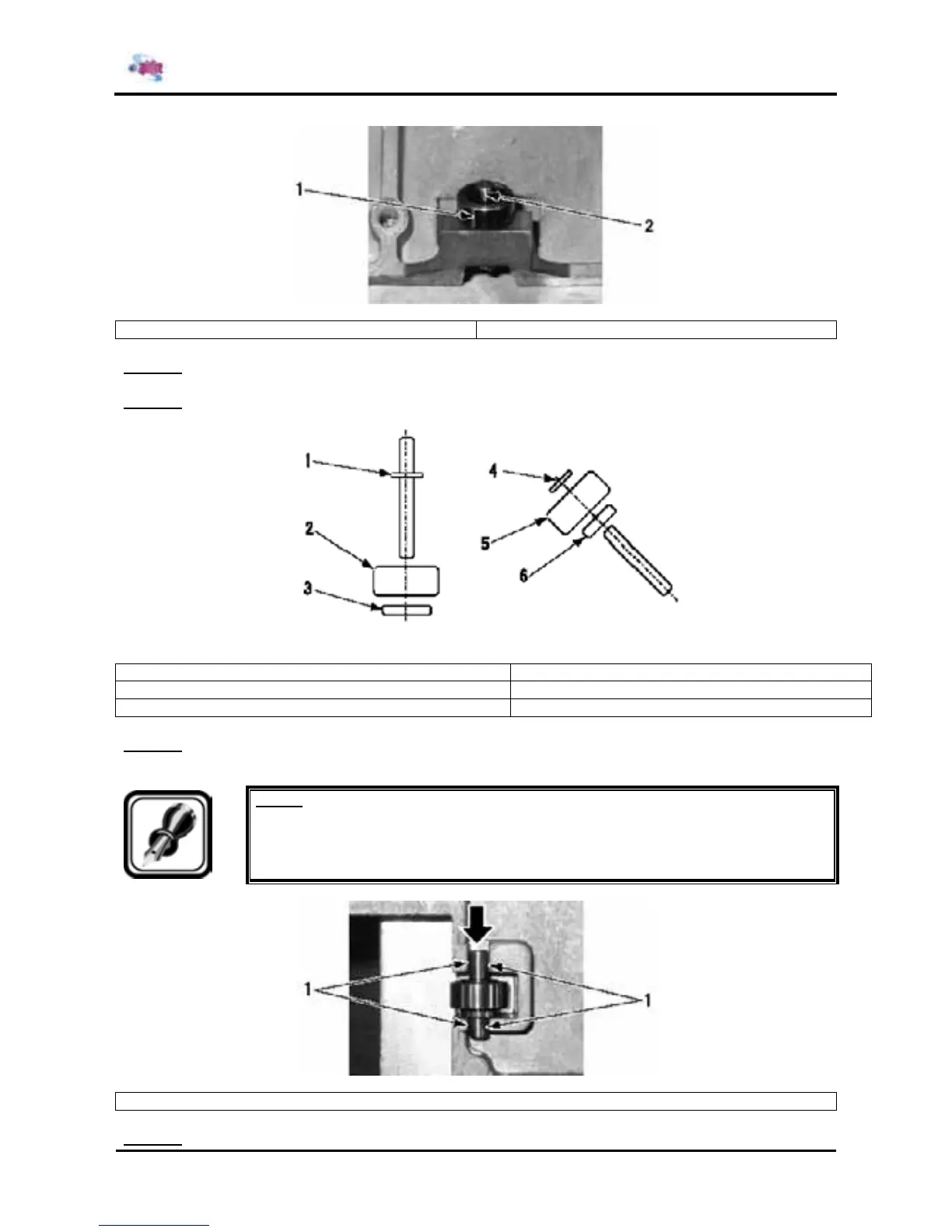

1 = CR cursor assembly 2 = E ring fixing the cursor roller assembly.
Step 4 : Replace the cursor roller assembly.
Step 5 : Install the spacers and the other parts as shown in the following figure.
1 = E ring fixing the side cursor roller assy 2 = High-load bearing of the side cursor roller assy
3 = Brass spacer of the side cursor roller assy 4 = E ring of the cursor roller assy
5 = High-load bearing of the cursor roller assy of downside 6 = Brass spacer of the cursor roller assy
Step 6 : Apply the screw lock to the cursor axis, and install the cursor roller assembly with the axis at the
lower position.
Notes :
¾ Be sure that the screw lock does not contaminate the cursor roller or the spacer.
1 = Applying position of the screw lock
Step 7 : Perform head height adjustment according to "Head height adjustment".
