Spitfire – Maintenance Manual
139
AP-74096, Rev. 1.0, 09/06/05

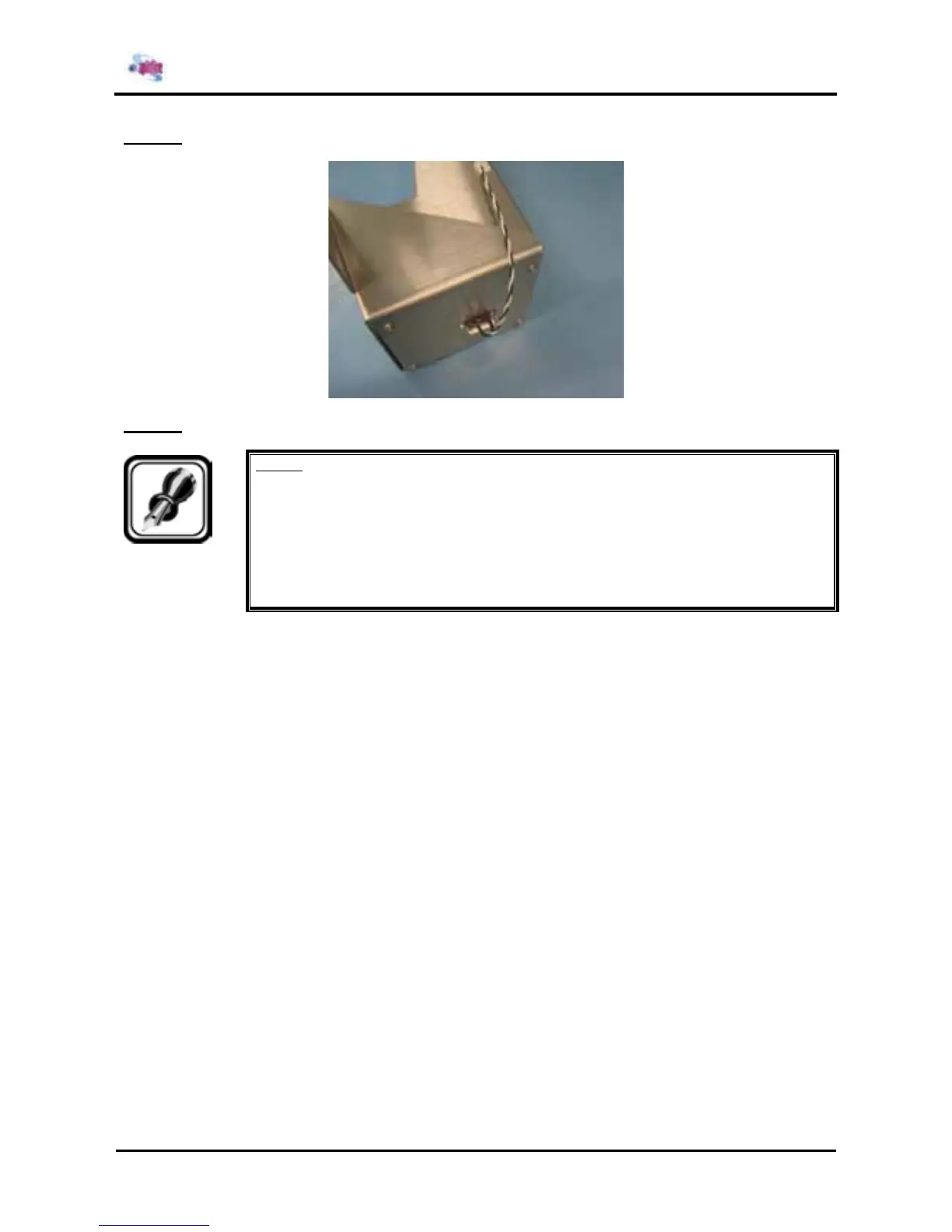

Step 4 : Remove the screws fixing the waste liquid sensor assembly.
Step 5 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ When installing the waste liquid BOX sensor assembly, pay attention to following
points :
Adjust the waste liquid BOX sensor assembly before installing the waste
liquid bottle cover.
Position and install it so that "Sensor : Waste liquid tank" is properly
switched in "Sensor Menu".
