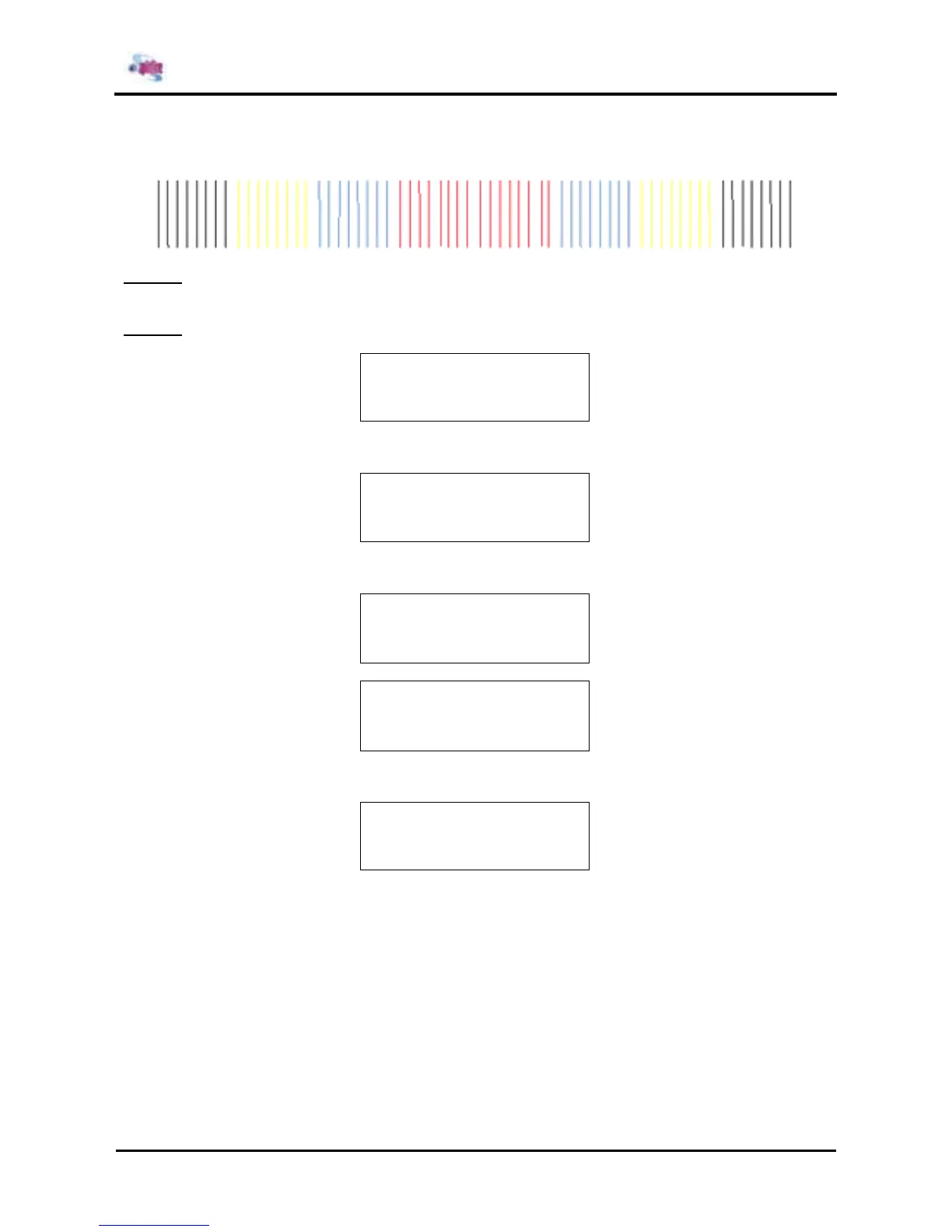

Nozzle alignment in horizontal direction (CCW): Prints out patterns in the order of 1A, 1B, 2A, 2B,
3A, 3B, 4A, 4B.
Step 4 : If any abnormal conditions are found in the ink discharge status of the head nozzles, perform ink
purge on the relevant heads.
Step 5 : After the ink purge, the system returns to the purge selection menu.
* ChkNozzle *
Set Paper If media is not set
↓ Media set
* ChkNozzle *
Paper Initial
↓ End Media initialization
* ChkNozzle *
F1 →
End Output Pattern
← F2
(1/2)
* ChkNozzle *
F1 →
Normal Powerful
← F2
F3 →
Little
(2/2)
If Normal cleaning is selected
* Normal *
Cleaning
