Spitfire – Maintenance Manual
221
AP-74096, Rev. 1.0, 09/06/05
Step 2 : If the tension of the steel belt is not within the range of regulated values, adjust the steel belt
tension screws.

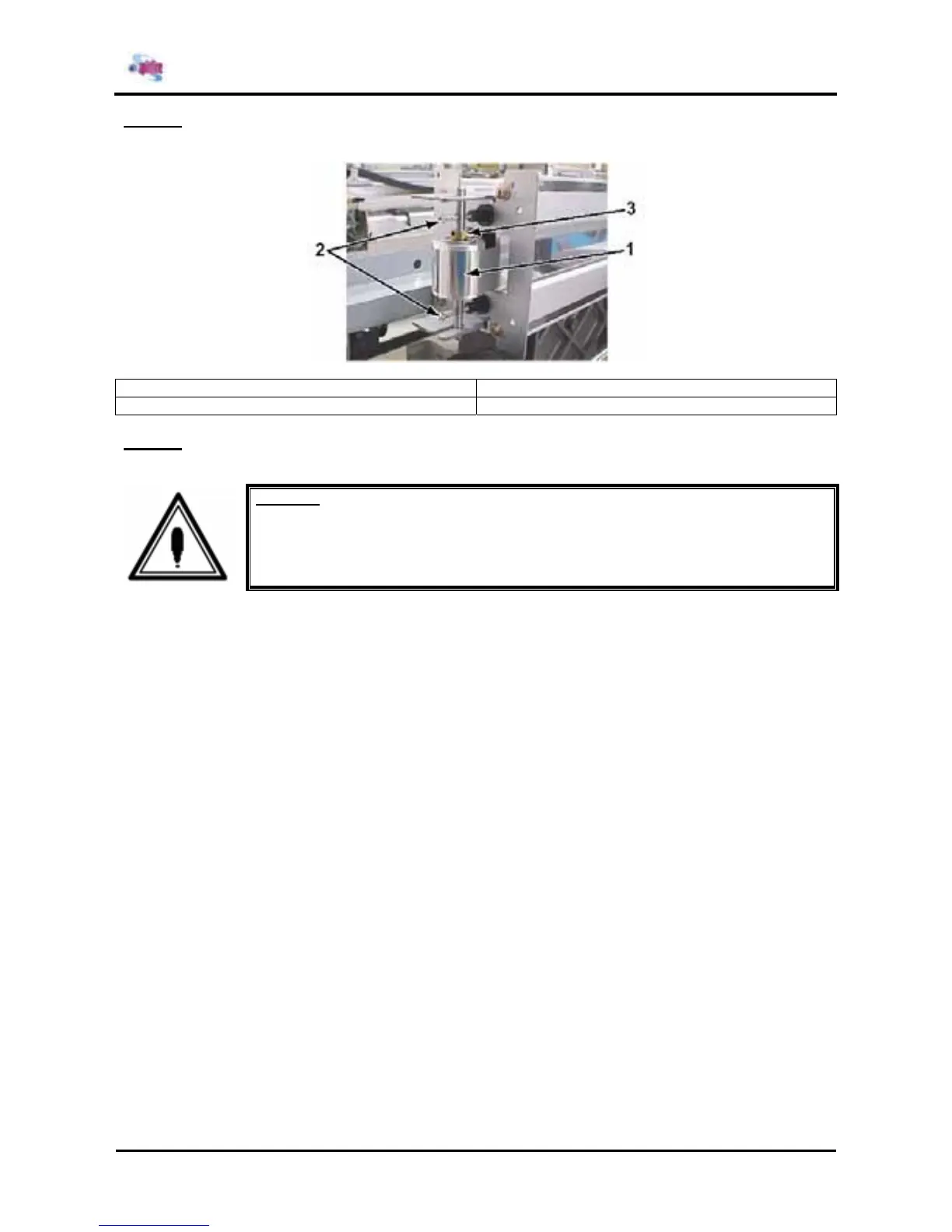

1 = Steel belt 2 = Steel belt tension screw
3 = CR slave pulley
Step 3 : Move the CR cursor to the left and right once or twice. Adjust the CR driven pulley until the
upper and lower margins are identical.
Caution :
If the tension is not equivalent across the entire belt, it could snap during operation.
