Spitfire – Maintenance Manual
233
AP-74096, Rev. 1.0, 09/06/05

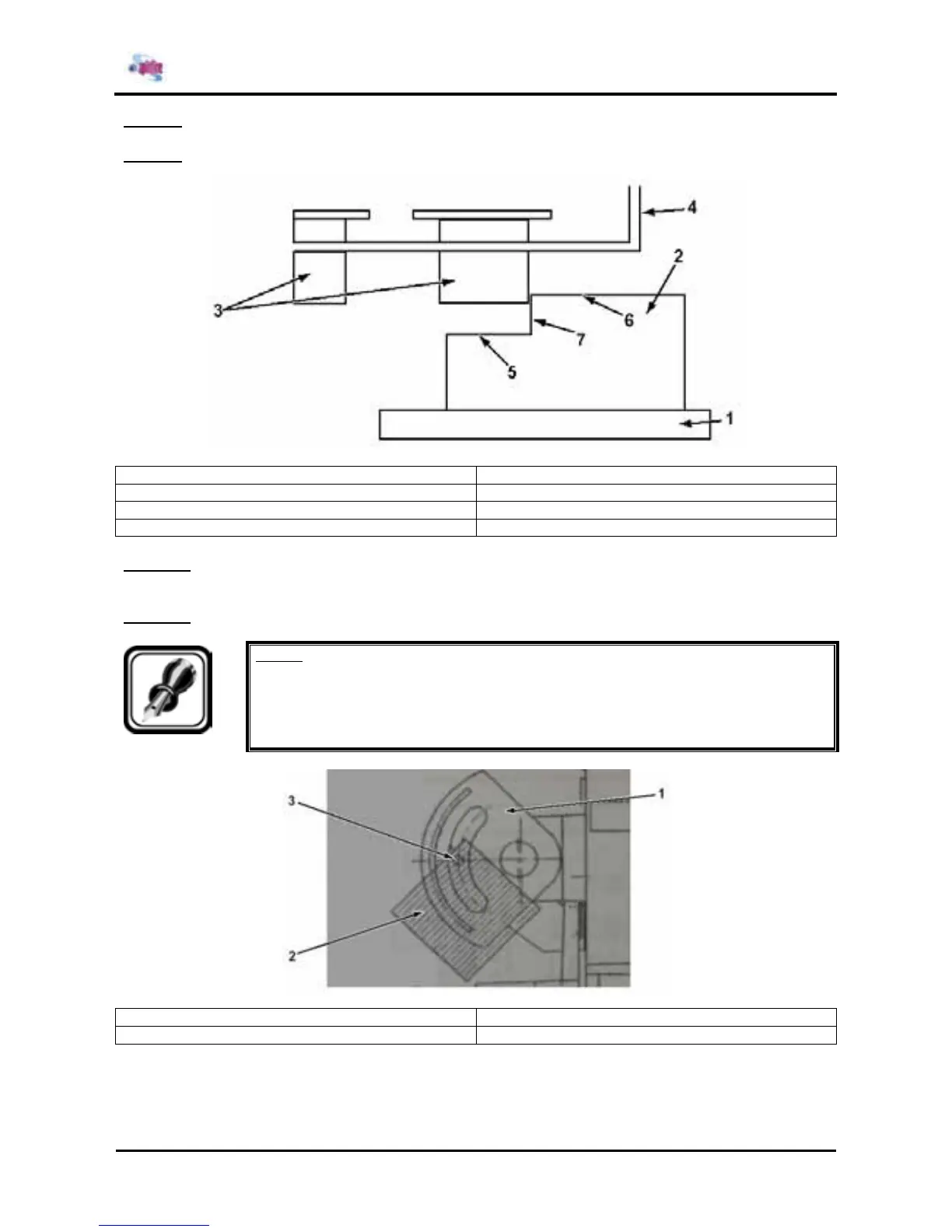

Step 8 : Adjust head U/D eccentric shaft lever so that CR gap adjustment jig can move freely.
Step 9 : Perform CR cursor right/left adjustment.
1 = Platen 2 = CR gap check jig
3 = Print head 4 = CR cursor
5 = Height 1.2 mm 6 = Height 1.3 mm
7 = CR gap adjustment jig 1.2 mm side
Step 10 : Fasten the screws (2, one on the right, one on the left) that fasten the head U/D eccentric shaft
lever.
Step 11 : Apply non reflective tape to the head U/D eccentric shaft lever as shown in the following printing:
Notes :
¾ Completely cover the screw heads with non reflective tape. If non reflective tape
cannot be applied to chosen location, the head slide sensor may not detect screw
head properly.
1 = Head U/D eccentric shaft cover 2 = Nonreflective tape
3 = Screw fixing the head U/D eccentric shaft cover
