Spitfire – Maintenance Manual
248
AP-74096, Rev. 1.0, 09/06/05

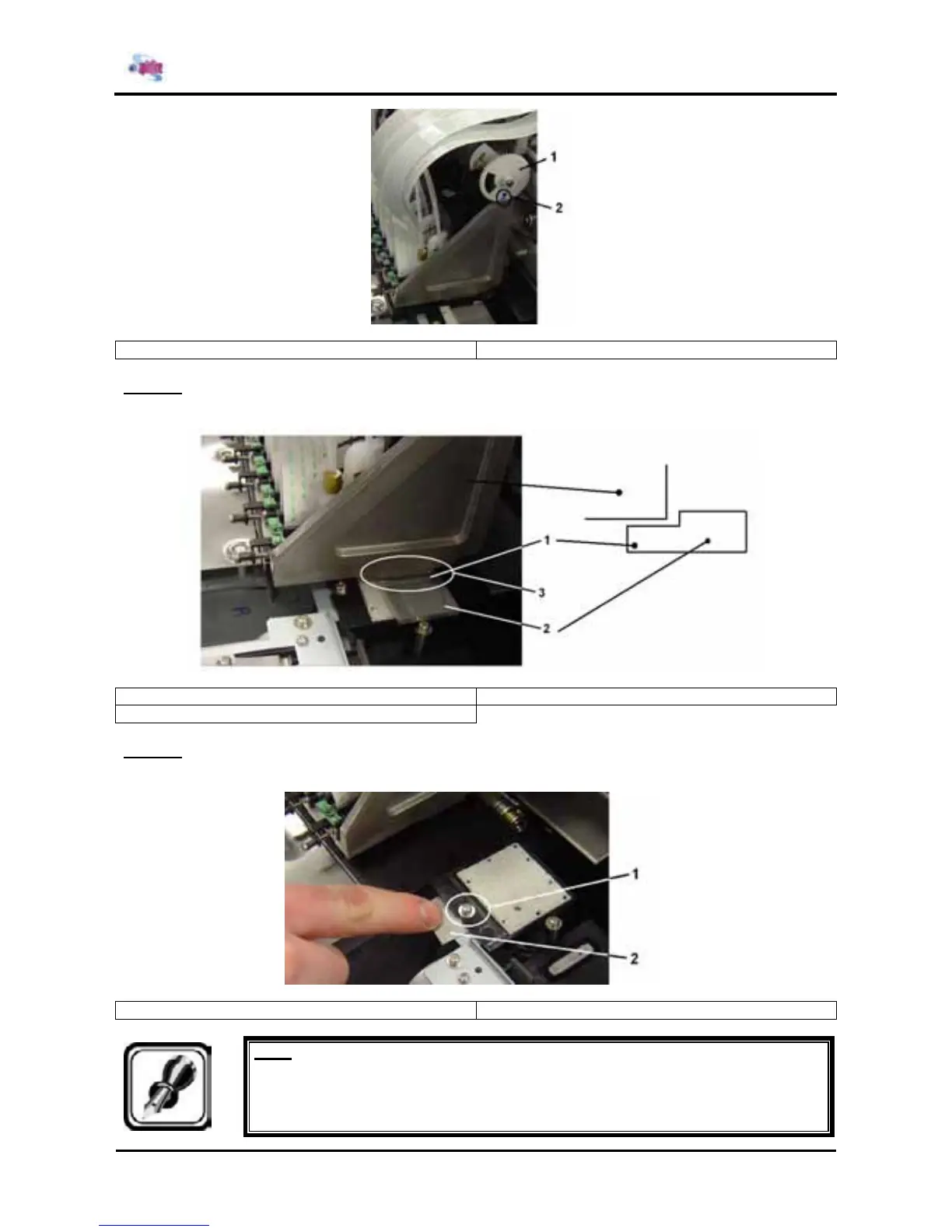

1 = Carriage wheel 2 = Arrow
Step 8 : Carefully move the carriage to the right. The carriage should pass the first interval but not the
second.
1 = Interval 1 3 = Reference of the head
2 = Interval 2
Step 9 : When the carriage pass both intervals, move the carriage to the left. Loosen the screw of the
flushing box a bit and install one or more spacers.
1 = Screw 2 = Spacer (0,5 mm or 1 mm)
Note:
The “Spacer kit flush box” (KY-80002) consists out of 10 spacers with thickness 0,5 mm
and 10 with thickness 1,0 mm.
