Spitfire – Maintenance Manual
55
AP-74096, Rev. 1.0, 09/06/05

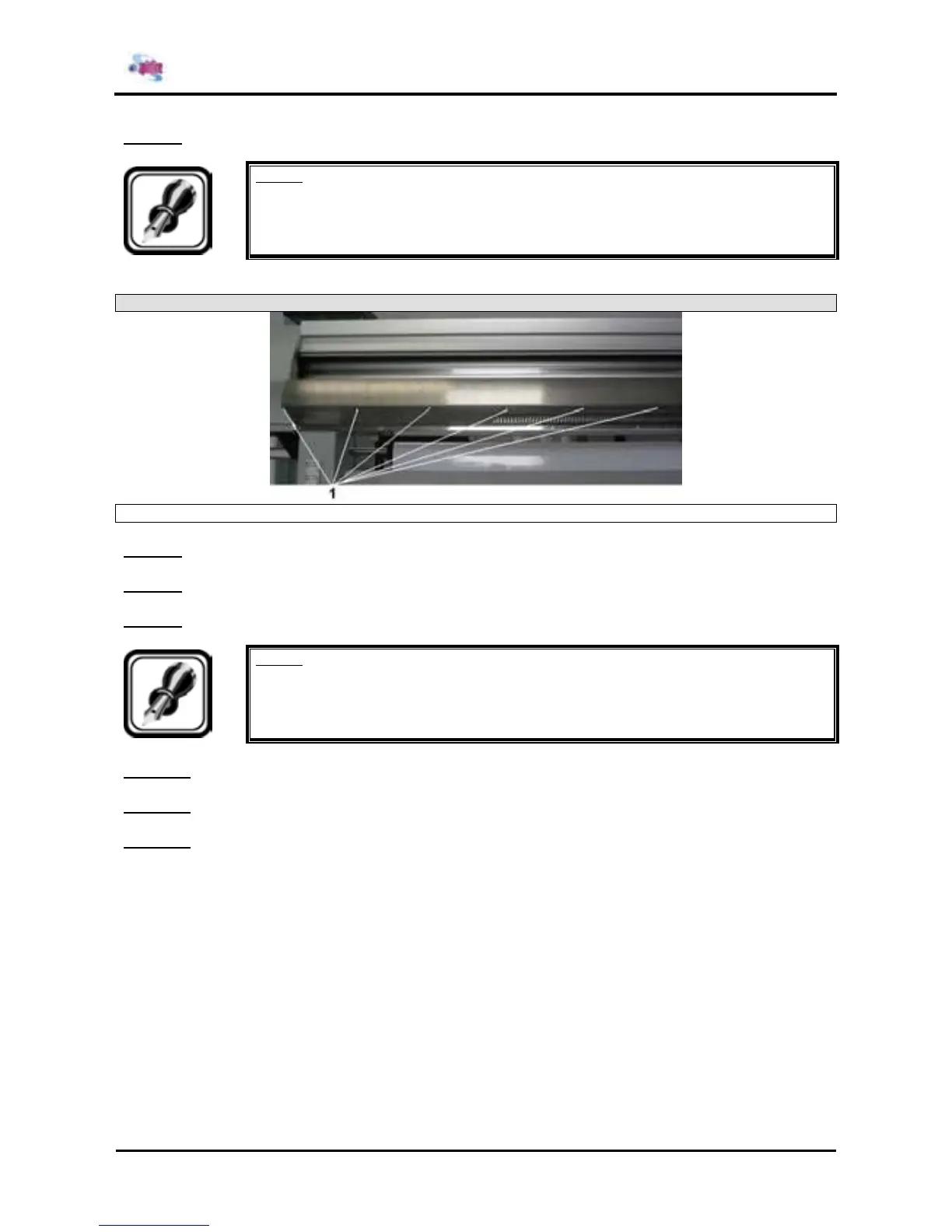

Step 6 : Remove the screws from the front of front media guide.
Notes :
¾ Please note that the amount of screws is size dependent.
Spitfire
1 = Screws on the front of front media guide
Step 7 : Standing before the unit move the front paper guide towards you.
Step 8 : Loosen the cables from their cable clamps.
Step 9 : Carefully loosen the connectors
Notes :
¾ Be sure not to damage the cables or connectors.
Step 10 : Remove the front paper guide.
Step 11 : Replace the parts inside the printer.
Step 12 : Reinstall all parts in the opposite order of the removal procedure.
