4 ENGIN E SY M PTOMS DIAGNOSTICS 127
17. Replace leaking fuel injector following the
procedure in the Engine Service Manual.
NOTE: If a set (six) of injectors must be replaced,
contact International® Technical Services to start
acasefile.
18. Remove the high-pressure oil rail following the
procedure in the Engine Service Manual.
19. Use the black light to inspect between each
injector and hold-down clamp. Do not remove the
injectors.
• If a leak is found, do steps 20 and 21.
• If no leak is found, do steps 22 through 24.
20. Relieve the pressure in the fuel system to avoid
further contamination of oil.
21. Replace leaking fuel injector following the
procedure in the Engine Service Manual.
NOTE: If a set of injectors (six) must be replaced,
contact International® Technical Services to start
acasefile.
22. Relieve the pressure in the fuel system to avoid
further contamination of oil.

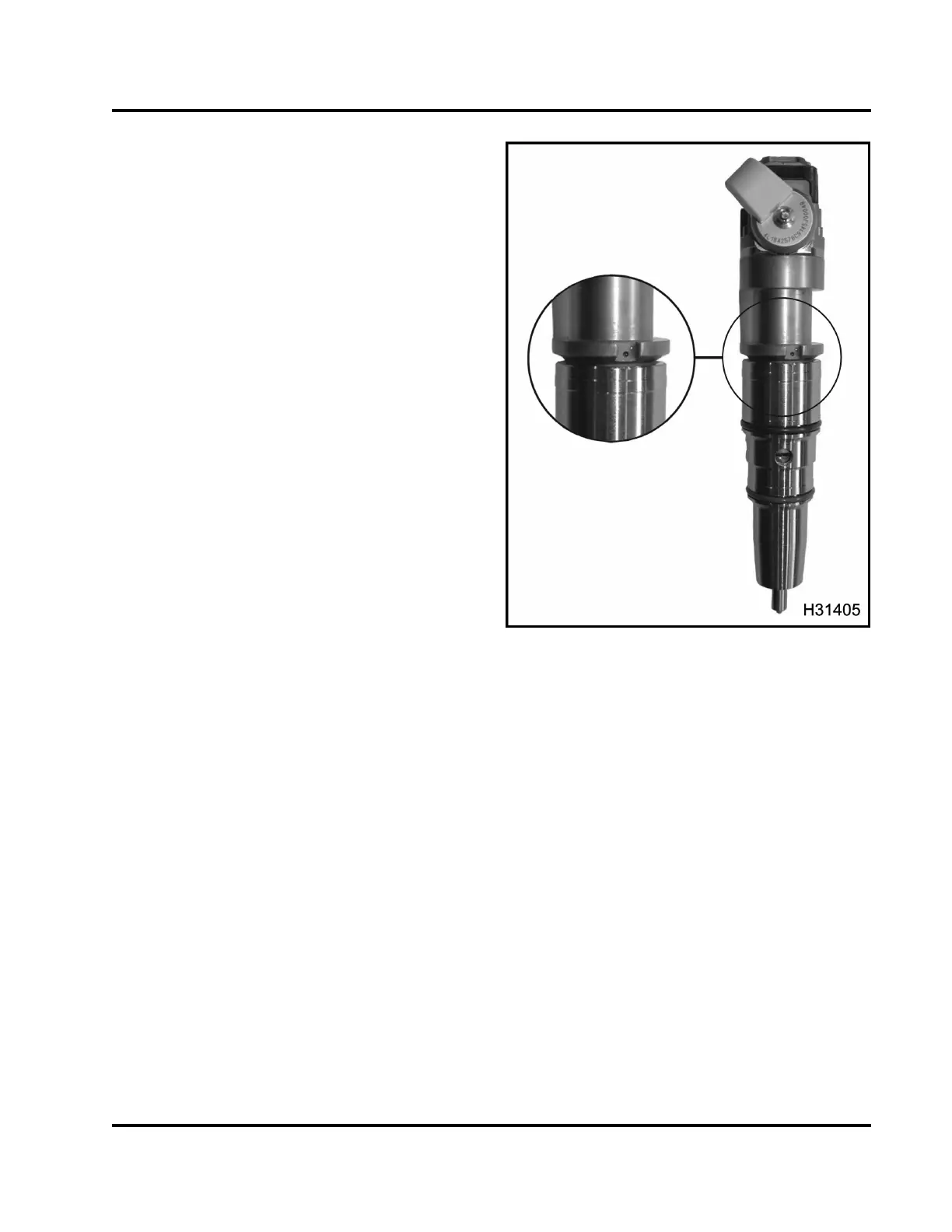

Figure 150 Fuel injector weep hole
23. Remove each injector (one at a time) following the
procedure in the Engine Service Manual.Hold
each fuel injector over their respective injector
opening for several seconds to allow fuel to drain
from injector. Inspect each injector.
24. Replace leaking fuel injector follow ing the
procedure in the Engine Service Manual.
NOTE: If a set of injectors (six) must be replaced,
contact International® Technical Services t o start
acasefile.
