426 7 ELECTRONIC CONTROL SYSTEMS DIAGNOSTICS
EOP Sensor (Engine Oil Pressure)

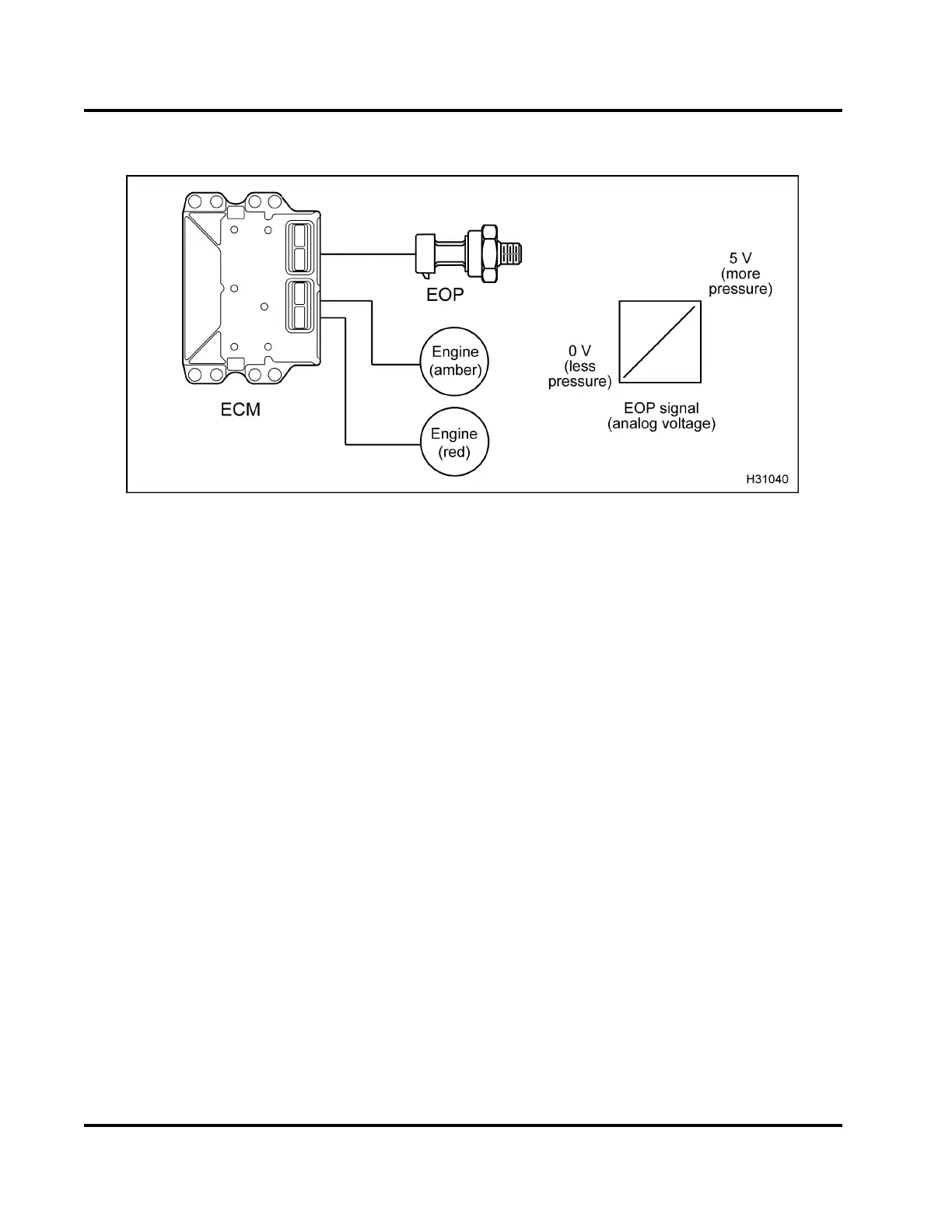

Figure 444 Function diagram for the EOP sensor
The function diagram for the EOP sensor includes the
following:
• EOP sensor
• Electronic Control Module (ECM)
• ENGINE lamp (amber and red)
Function
The EOP sensor is a variable capacitance sensor
installed in the left side of the crankcase below and
left of the fuel filter housing. The ECM supplies a
5 V reference signal which the EOP sensor uses
to produce a linear analog voltage that indicates oil
pressure.
An optional feature, the Engine Warning and
Protection System (EWPS), can be enabled to
warntheengineoperatorandshuttheenginedown
when a low engine oil pressure condition occurs.
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
