ECL Sensor (Engine Coolant Level)

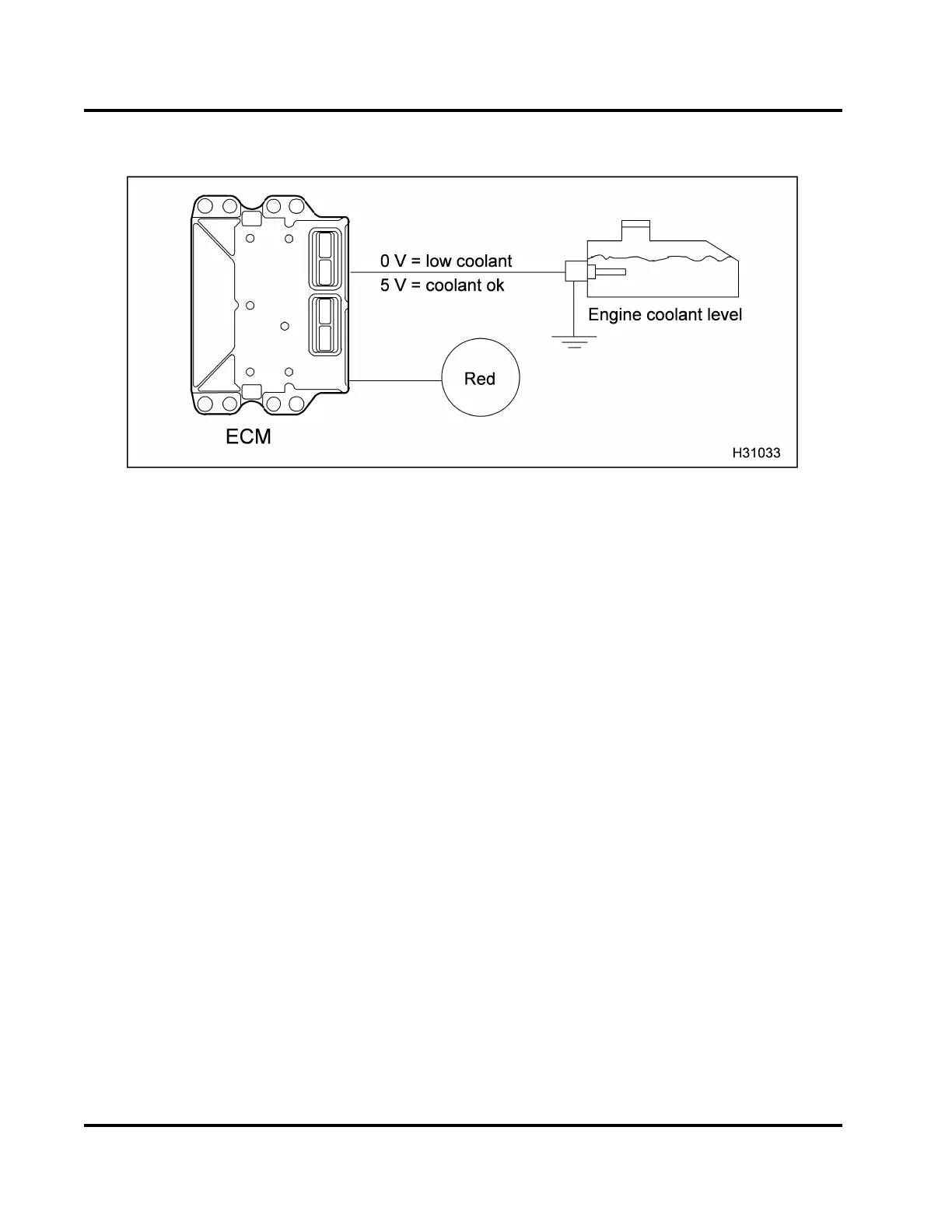

Figure 418 Function diagram for the ECL sy
stem
The ECM monitors engine coolant level
and alerts
the operator when coolant is low. T
he ECM can be
programmedtoshuttheengineoff
when coolant is
low.
The ECL system includes the Elect
ronic Control
Module (ECM) and the engine cool
ant tank with a
coolant level sensor. The ECL s
witchisusedinthe
plastic deaeration tank.
Coolant level monitoring is a custome
r programmable
feature that ca n be programmed by t
he EST. The
coolant level feature is operati
onal if programmed
for 3-way warning or 3-way prote
ction. The feature
can not be enabled if the ECM was
not factory
programmed for 3-way protecti
on.
