510 7 ELECTRONIC CONTROL SYSTEMS DIAGNOSTICS
MAT Operational Diagnostics

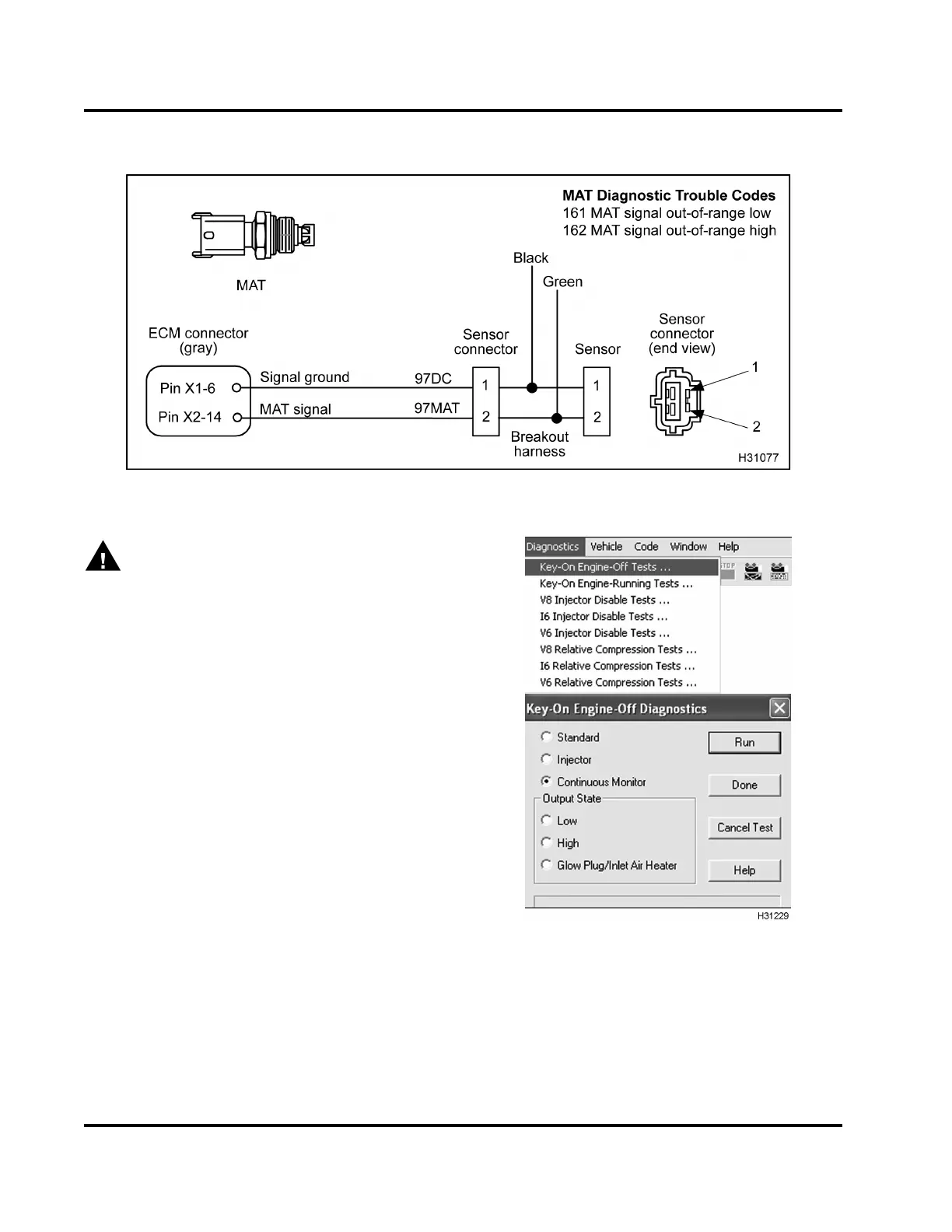

Figure 490 MAT circuit diagram
WARNING: To avoid serious personal injury,
possible death, or damage to the engine or vehicle
– comply with the following:
Be careful to avoid rotatin g parts (belts an d fan)
and hot engine surfaces.
1. Using EST, open the D_ContinuousMonitor.ssn.
Figure 491 Continuous Monitor Test
2. To monitor signal voltage, run KOEO Continuous
Monitor Test. For help, see “Continuous Monitor
Test” in Section 3 (page 68).
3. Monitor MAT signal voltage. Verify an active DTC
for the MAT circuit.
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
