26 1 ENGINE SYSTEMS
Injection Control Pressure ( ICP) System
Components and High-Pressure Oil Flow

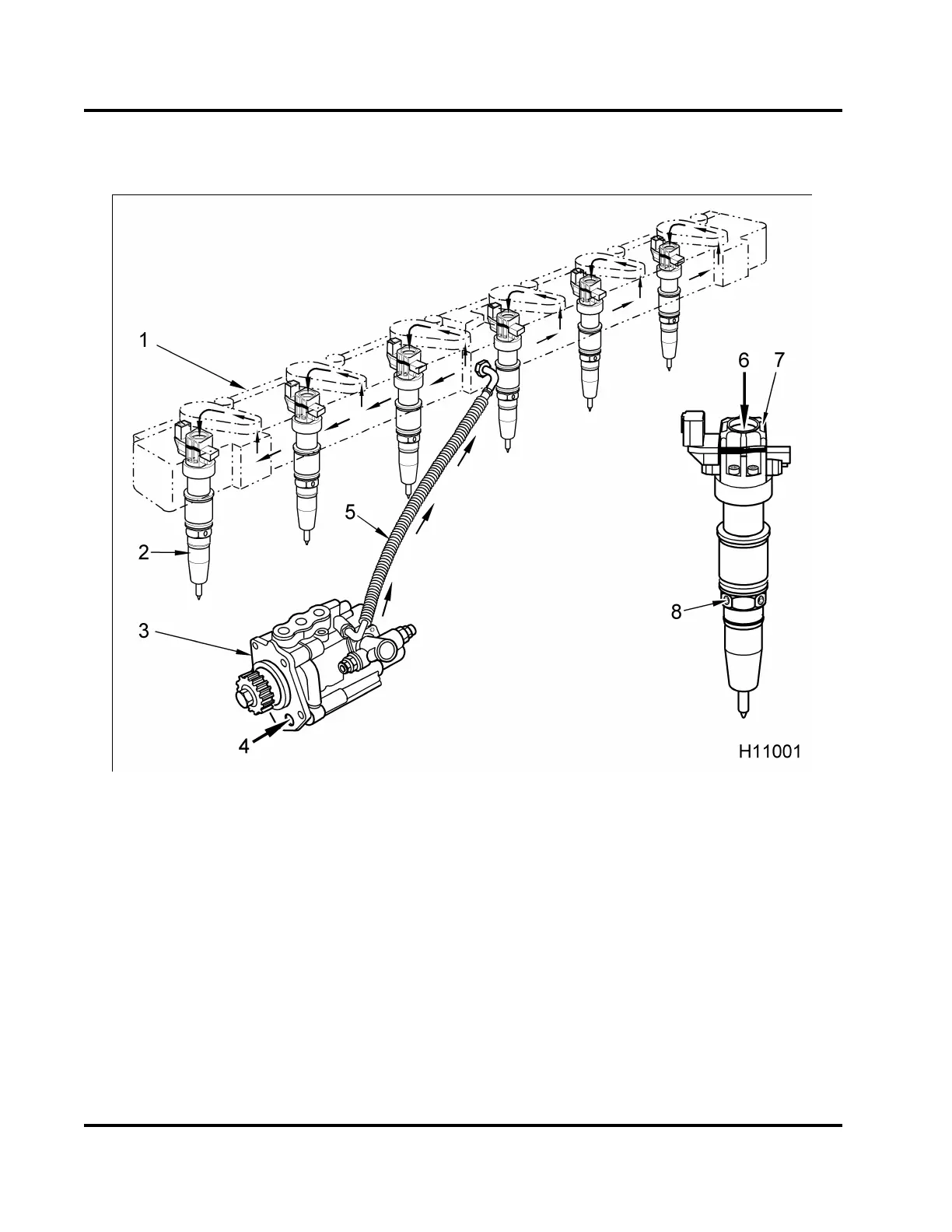

Figure 19 Injection Co
ntrol Pressure (ICP) system
1. High-pressure oil
manifold
assembly
2. Fuel injector
3. High-pressure pum
p assembly
4. Oil inlet (lube oil)
5. High-pressure oil ho
se
6. High-p ressure oi l
inlet (injector)
7. Oil exhaust port (2)
8. Fuel inlet (4)
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
