7 ELECTRONIC CONTROL SYSTEMS DIAGNOSTICS 285
Sensor and Actuator Locations
Engine Mounted Components

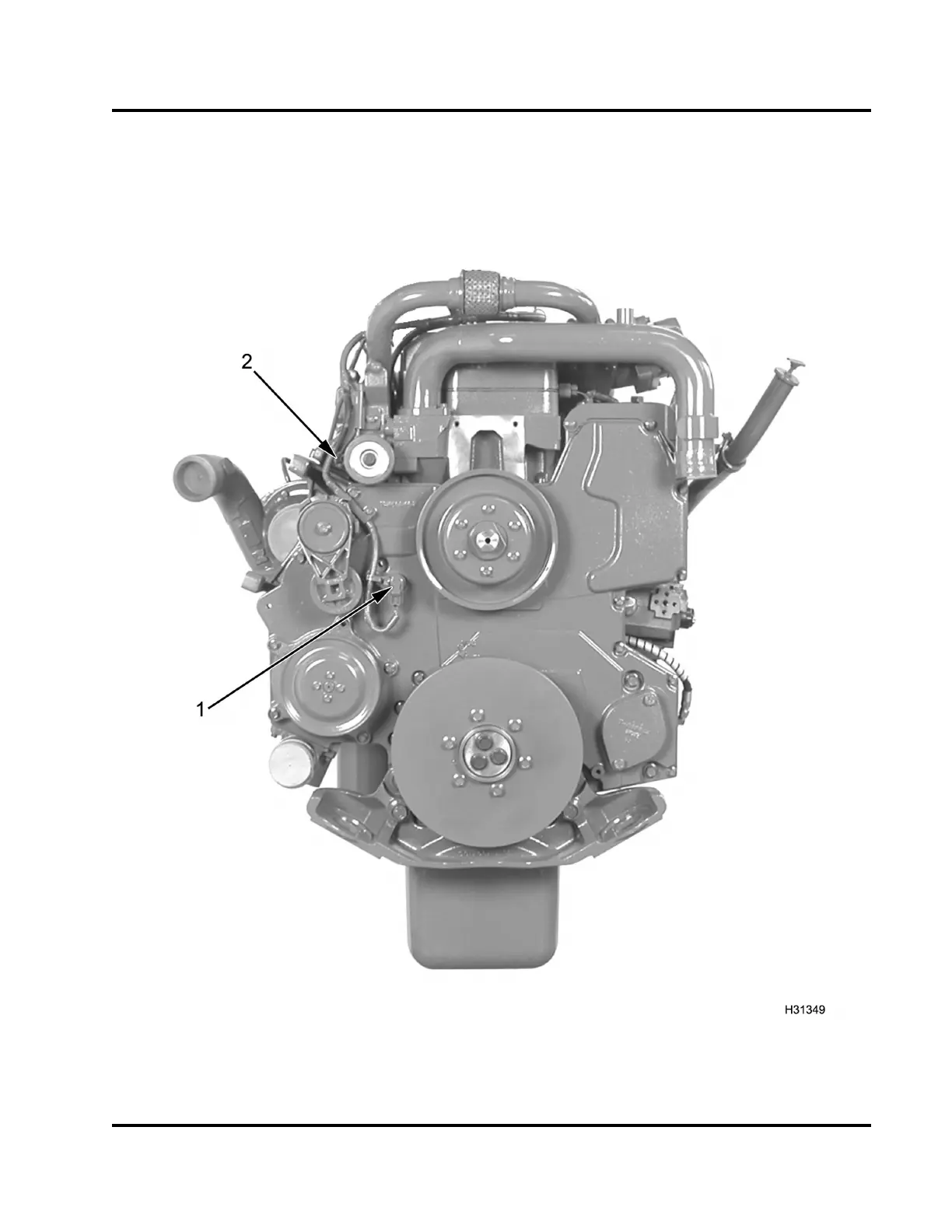

Figure 364 Sensor location – Front View
1. Camshaft Position (CMP) sensor 2. Engine Coolant Temperature
(ECT) sensor
EGES-270-1
