1 ENGINE SYSTEMS 25
Fuel Management System
Fuel Management Components

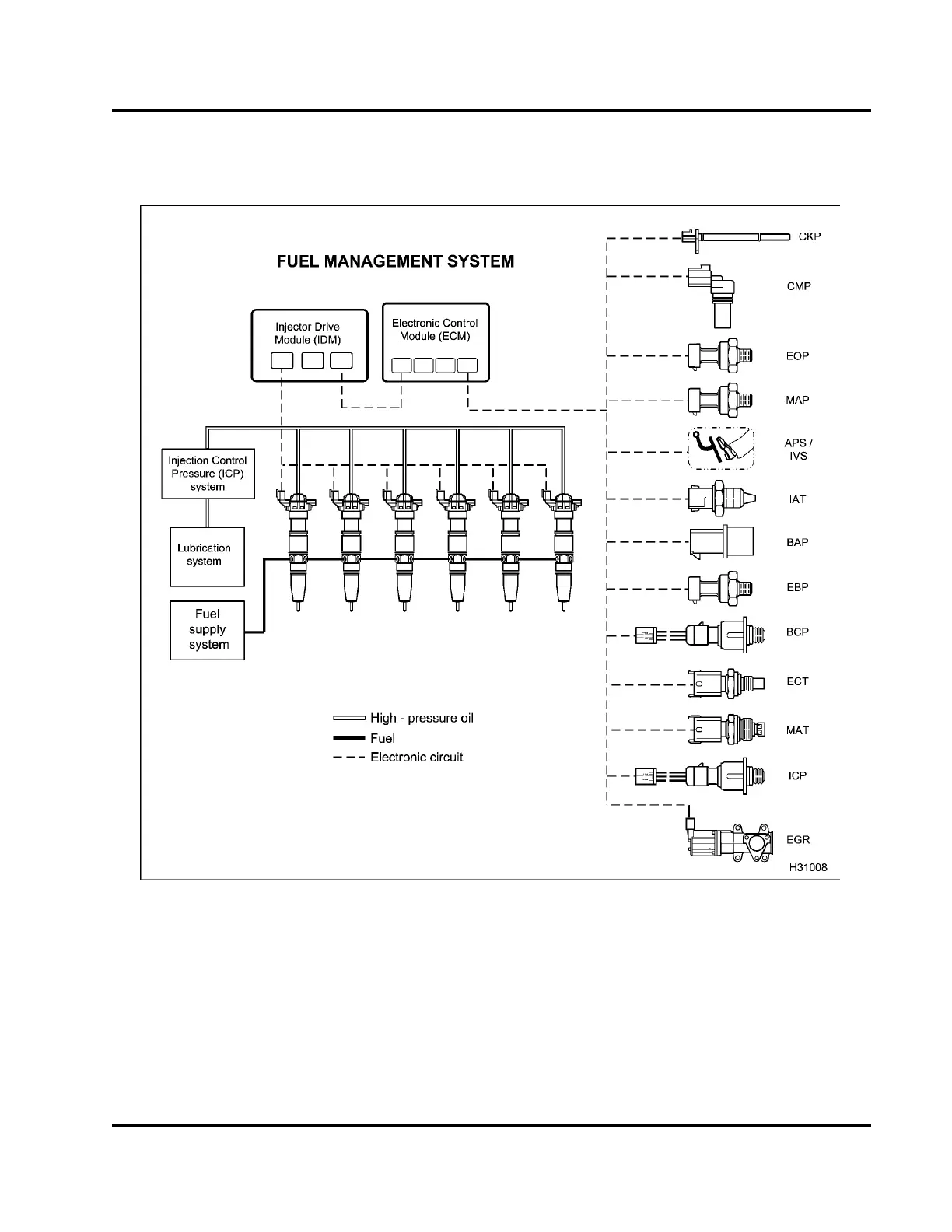

Figure 18 Fuel management system
The fuel m anagement system includes the following:
• Injection Control Pressure (ICP) system
• Fuel supply system
• Fuel injectors
• Lubrication system
• Electronic control system
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
