558 8 DIAGNOSTIC TOOLS AND ACCESSORIES
Digital Multimeter (Fluke 88)

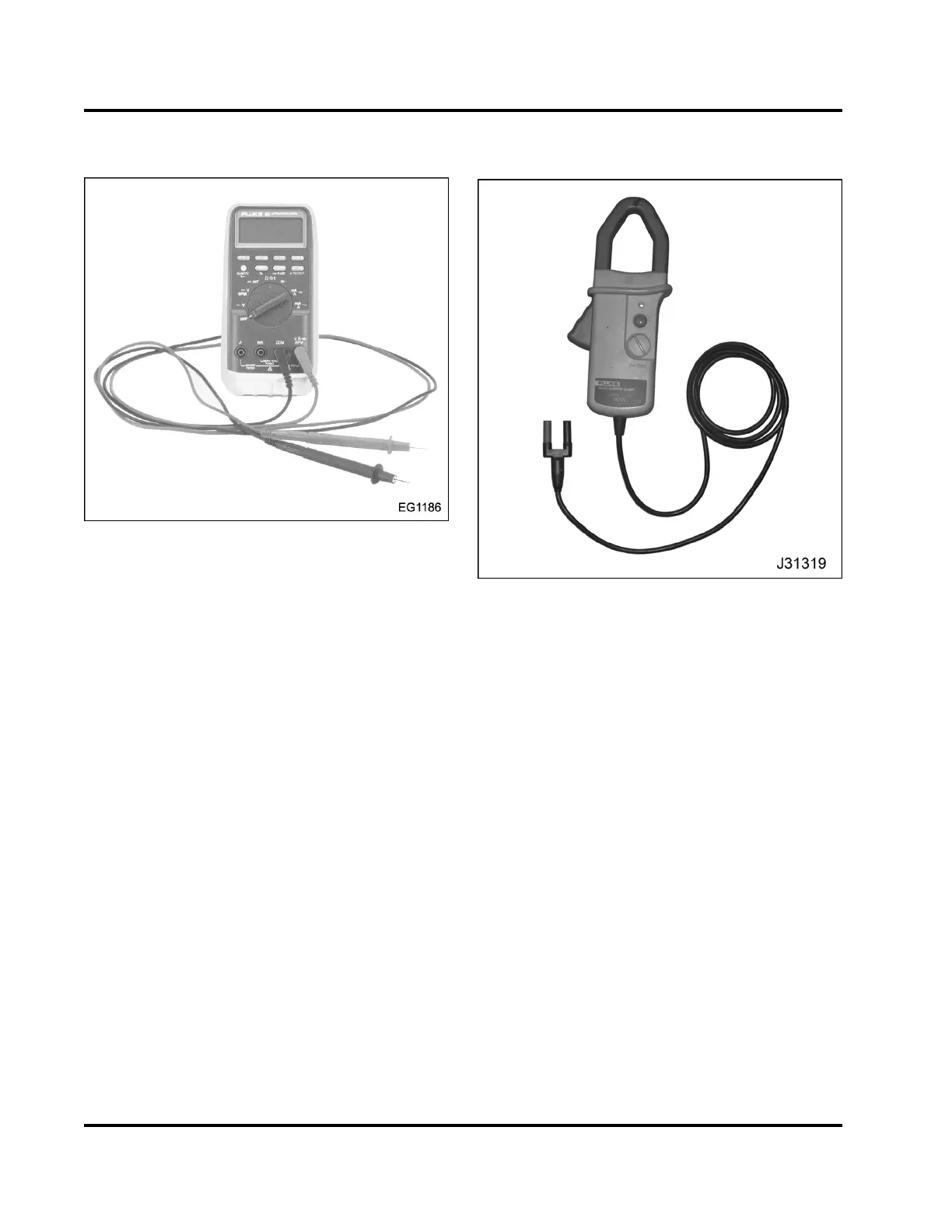

Figure 516 ZTSE4357
The Fluke 88 Digital Multimeter (DMM) is used to
troubleshoot electrical components, sensors, injector
solenoids, relays, and wiring harnesses. The DMM
has a high input impedance that allows testing of
sensors while t he engine is runn ing, without loading
the circuit being tested. This ensures that the signal
voltage measurem ent will not be affected by the
voltmeter.
Amp Clamp
Figure 517 ZTSE4575
The Amp Clamp is to measure amper
age d raw for the
glow plug and inlet air heater sy
stems.
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
