8 DIAGNOSTIC TOOLS AND ACCESSORIES 559

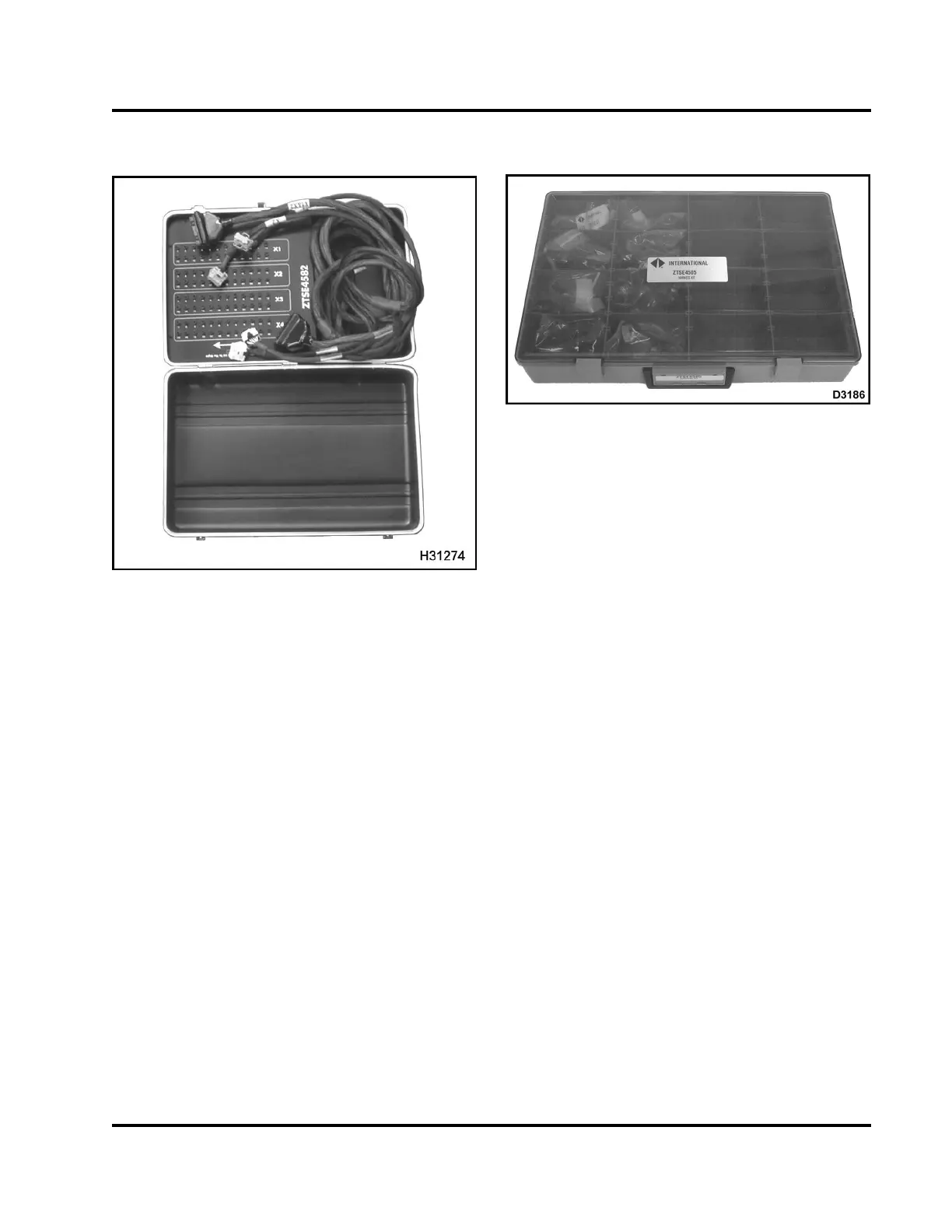

96-Pin Breakout Box – DLC II
Figure 518 ZTSE4582
The Breakout Box allows testing of the electronic
control system components without disturbing
connections or piercing wire insulation to access
various signal voltages in the electronic control
system.
CAUTION: The Breakout Box is used for
measurement only, not to activate or control circuits.
High current levels passing through the breakout box
will burn out the internal circuitry.
Breakout Harness Kit
Figure 519 ZTSE4505A
The Breakout Harness Kit contains the following
breakout harnesses and test leads:
• 3-Banana Plug Harness (ZTSE4498)
• VC Gasket Breakout Harness (ZTSE4658A)
• UVC Sensor Breakout Harness (ZTSE4686)
• 4-Pin Injector Harness (ZTSE4662)
• 12-Pin Breakout Harness (ZTSE4665)
• 500 Ohm Resistor Harness (ZTSE4497)
• Actuator Breakout Harness (ZTSE4484)
• APS/IVS Breakout Harness (ZTSE4485)
• Pressure Sensor Breakout Harness (ZTSE4347)
• Relay Breakout Harness (ZTSE4596)
• Relay Breakout Harness (ZTSE4674)
• Temperature Sensor Breakout Harness
(ZTSE4483)
• Temperature Sensor Breakout Harness
(ZTSE4602)
• Turbo Breakout Harness (ZTSE4659)
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
