1 ENGINE SYSTEMS 53
Diamond Logi Engine Brake
Engine Brake Components

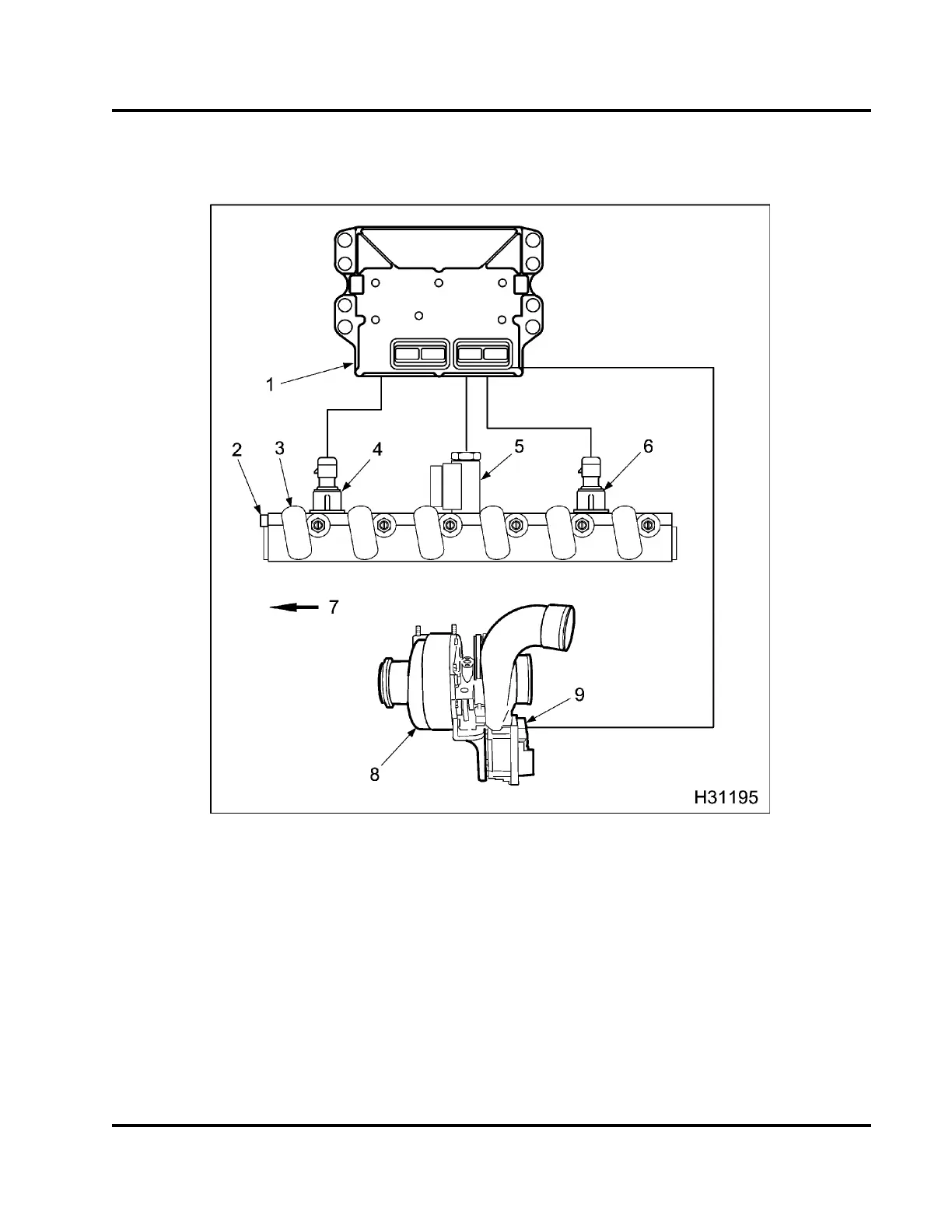

Figure 45 Diamond Logic® engine brake system
1. ECM
2. Brake pressure relief valve
3. High-pressure oil rail
4. Brake Control Pressure (BCP)
sensor
5. Brake shut-off valve assembly
6. Injection Control Pressure (ICP)
sensor
7. Front of engine
8. Variable Geometry Turbocharger
(VGT)
9. VGT control module
The Diamond Logic® engine brake, a compression
release brake system, pro vides the fo llowing:
Signicant noise reduction
Improved engine braking
High durability
Compatib ility with cruise control system
Lower operating cost and longer service life for
brake shoes
The Diamond Logic® engine brake is available for
all engine displacements. The operator can select
one of three brake settings, depending on terrain and
EGES-270-1
Read all safety instructions in the "Safety Information" section of this manual before doing any procedures.
Follow all warnings, cautions, and notes.
© August 2008 Navistar, Inc.
