38 1 ENGINE SYSTEMS

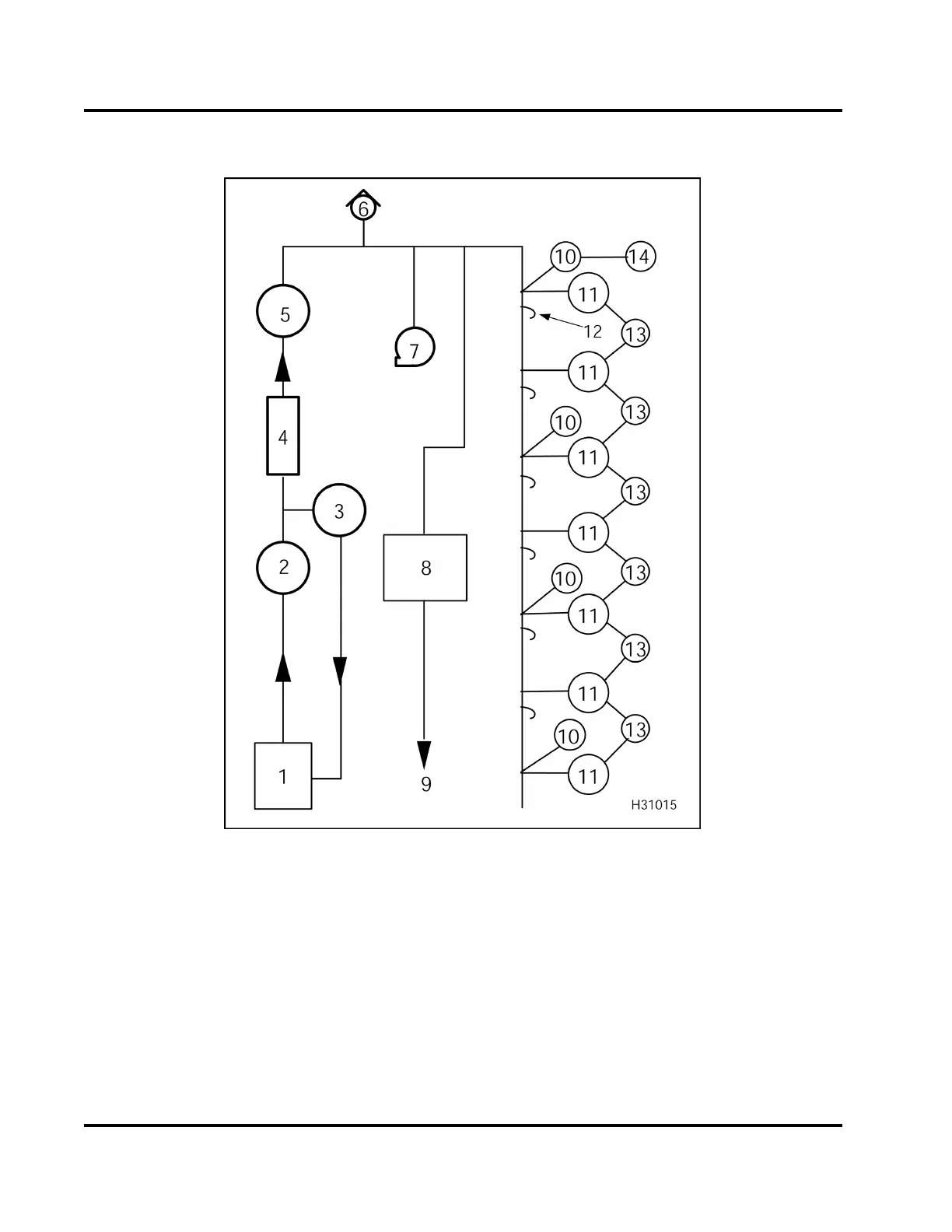

Oil Flow Diagram
Figure 32 Lubrication system
1. Sump
2. Oil pump
3. Secondary filter
4. Oil cooler
5. Oil filter
6. Oil pressure regulator relief
valve
7. Variable Geometry Turbocharger
(VGT)
8. Oil reservoi r for high-pressure
pump
9. To high-pressure oil system
10. Cam bearing
11. Main bearings
12. Piston cooling tube (6)
13. Connecting rods
14. Rocker arm shaft
The gerotor oil pump, driven by the engine crankshaft,
draws unfiltered oil from the oil pan through an oil
pick-up tube into the inlet port of the front cover.
Unfiltered oil (under pressure) flows through the
outlet port in the front cover into the unfiltered oil
gallery in the crankcase.
The unfiltered oil gallery has one exit port to the
header of the oil cooler. The oil is then internally
