Feature Descriptions
MDM9000 Satellite Modem
16.16.3 Practical Use Case

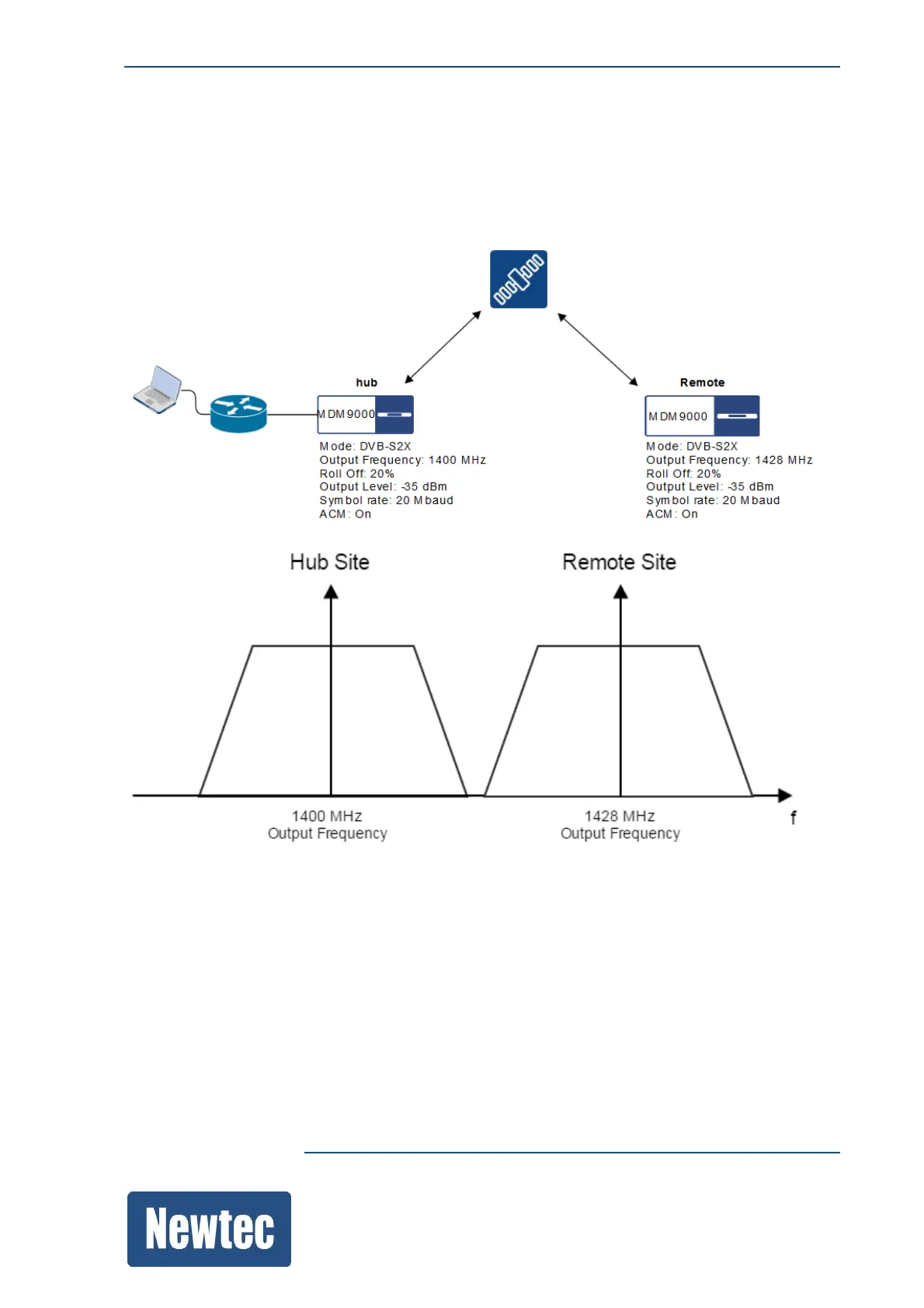

In the following example we consider a point to point link between a hub and a remote site.
In this example we consider a symmetrical point to point link with the following characteristics:
By using bandwidth cancellation it is possible to gain bandwidth and output power as displayed in
the following figure.
