Quick Configuration Templates
MDM9000 Satellite Modem
12.1 Layer 2 Point to Point
Load these templates (Hub and Remote) to make a back to back connection between two MDM9000
devices.

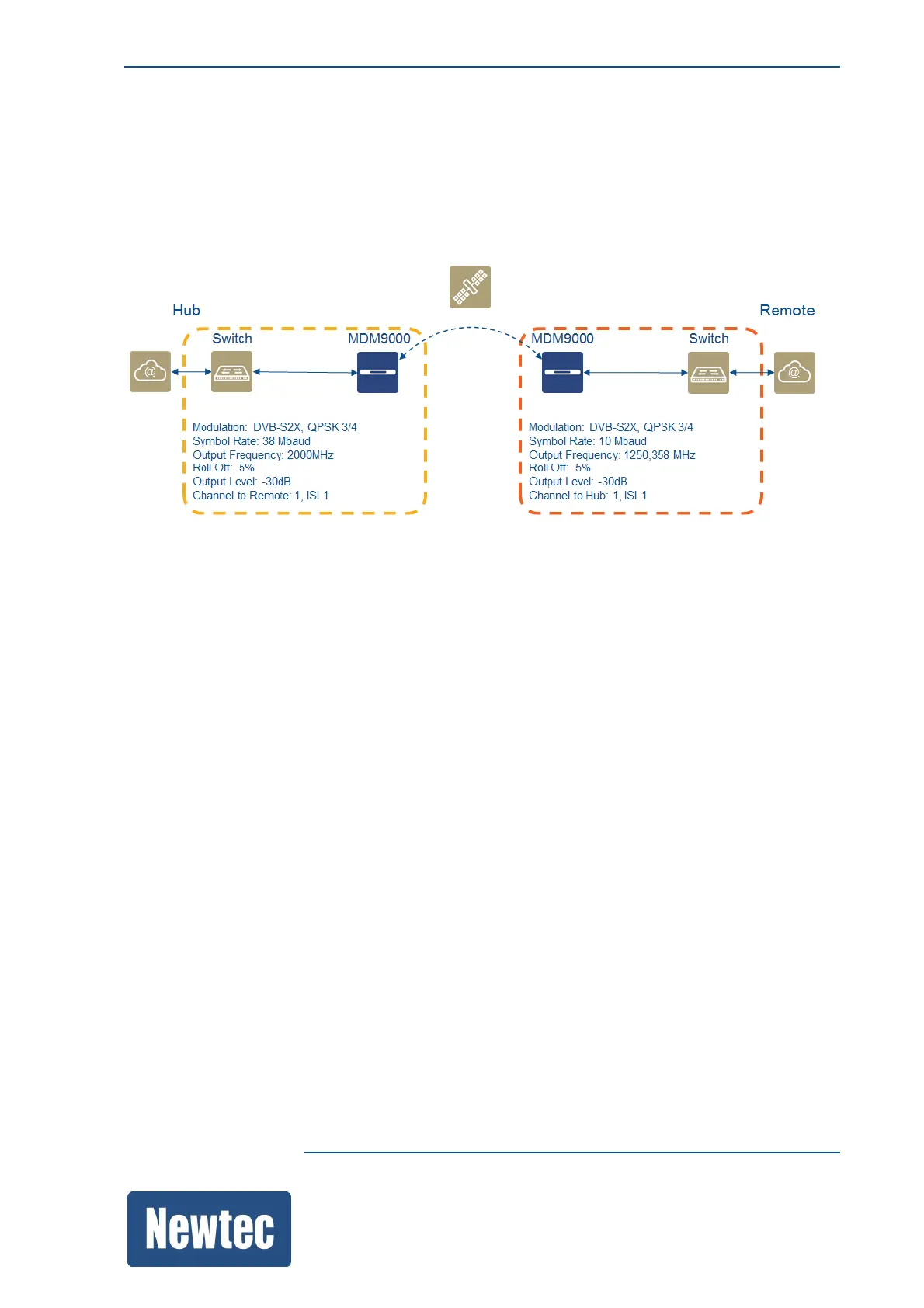

The following figure provides an overview of the system setup and the basic settings of the two
devices.
• On the hub site load the template "P2P L2 Hub".
• On the remote site load the template "P2P L2 Remote".
• Change the mentioned settings according to the system setup to get your point to point setup up
and running.
• Enable transmit on both modems.
