Physical Description
MDM9000 Satellite Modem

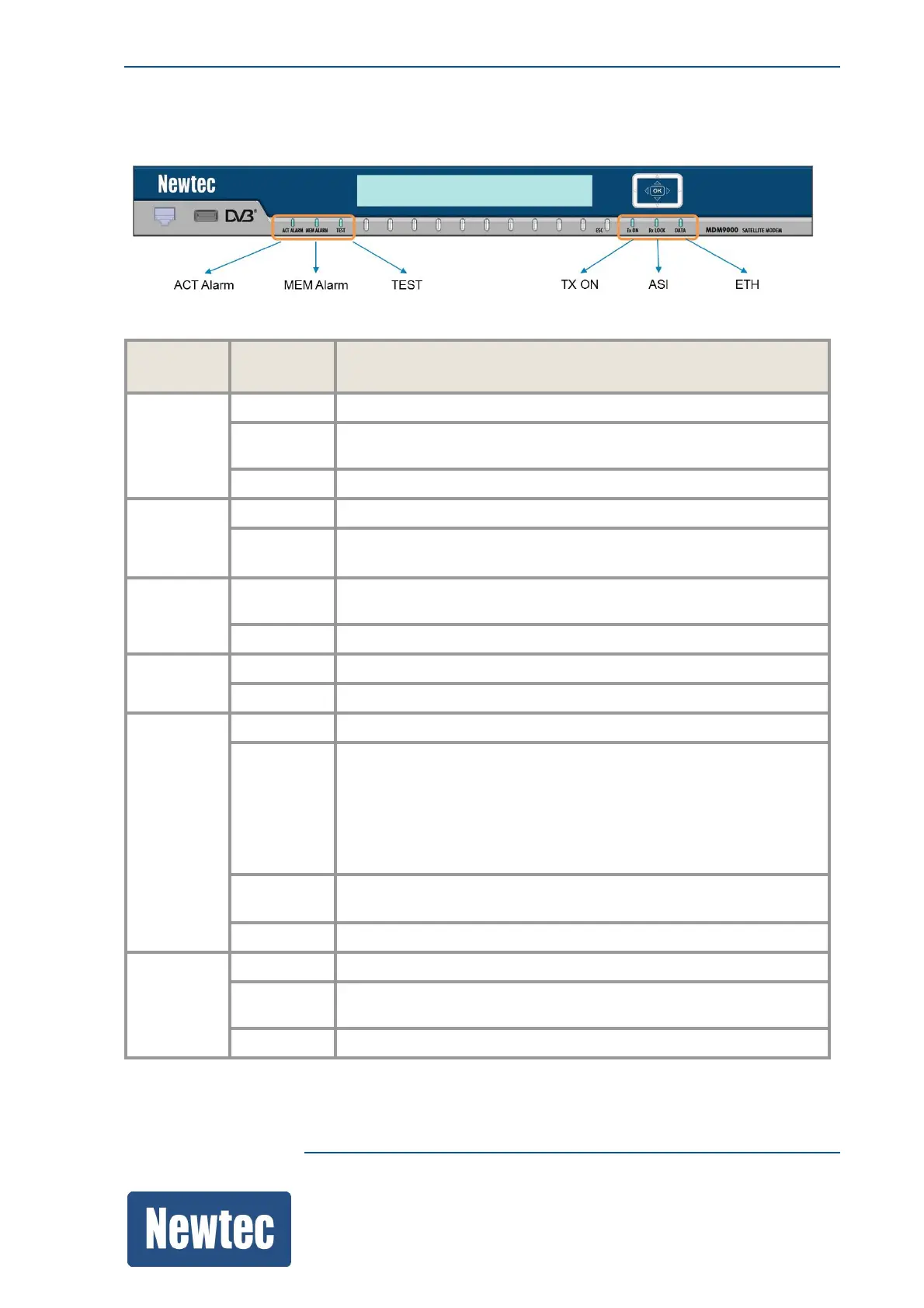

9.1.5 LED Status Indicators
The following table describes the LED status indicators.
LED LED
Color
Description
ACT
ALARM
Green
There are no alarms present on the device.
Yellow
Alarms other than the general device alarm or interface alarm are
present on the device.
Red
A general device or interface alarm is present on the device.
MEM
ALARM
Yellow
A memorized alarm is present on the device.
Off
Indicates that all alarms are cleared, no memorized alarm is
present on the device.
TEST Green
Green Indicates that the internal PRBS generator is activated on
the device.
Off
The internal PRBS generator is not activated on the device.
TX ON
Green
The device is transmitting.
Off
The transmission is disabled.
RX LOCK
Green
The demodulator part of the modem is locked.
Yellow
The demodulator is in PL lock (Physical Layer lock).
• Physical layer headers are decoded properly
• An Es/No estimation is available
• Equalizer is operational
But no decodable BB frame was received
Red
The demodulator part of the modem cannot lock to the incoming
carrier.
Off
The demodulator part of the modem is disabled.
Data Green
The incoming or outgoing data signal is valid.
Yellow
The input / output data interface is configured but there is no
activity monitored during the last second.
Off
The input / output interfaces are not enabled.
