Block Diagram
MDM9000 Satellite Modem
10.7 BBF over IP Out
The BBF over IP output functional block adds an IP header to the BBFs and then transmit the data
towards the NOP1760.

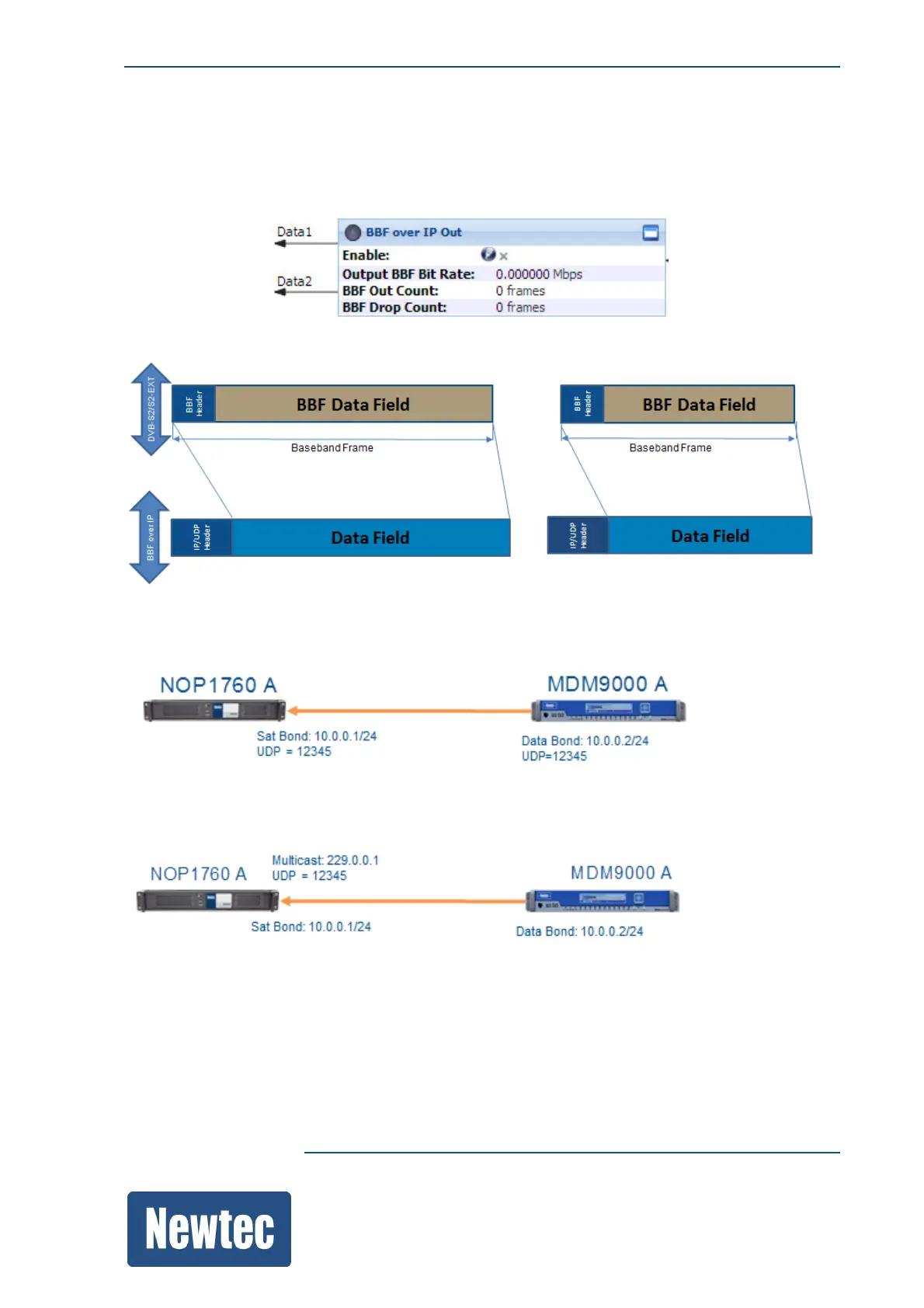

The following figure shows that this block adds an IP header to the BBFs.
The following figure shows the example of the BBF End Points using Unicast.
The following figure shows the example of the BBF End Points using Multicast.
