Appendix - Classification Expressions
MDM9000 Satellite Modem
19.1.2 Expression: All

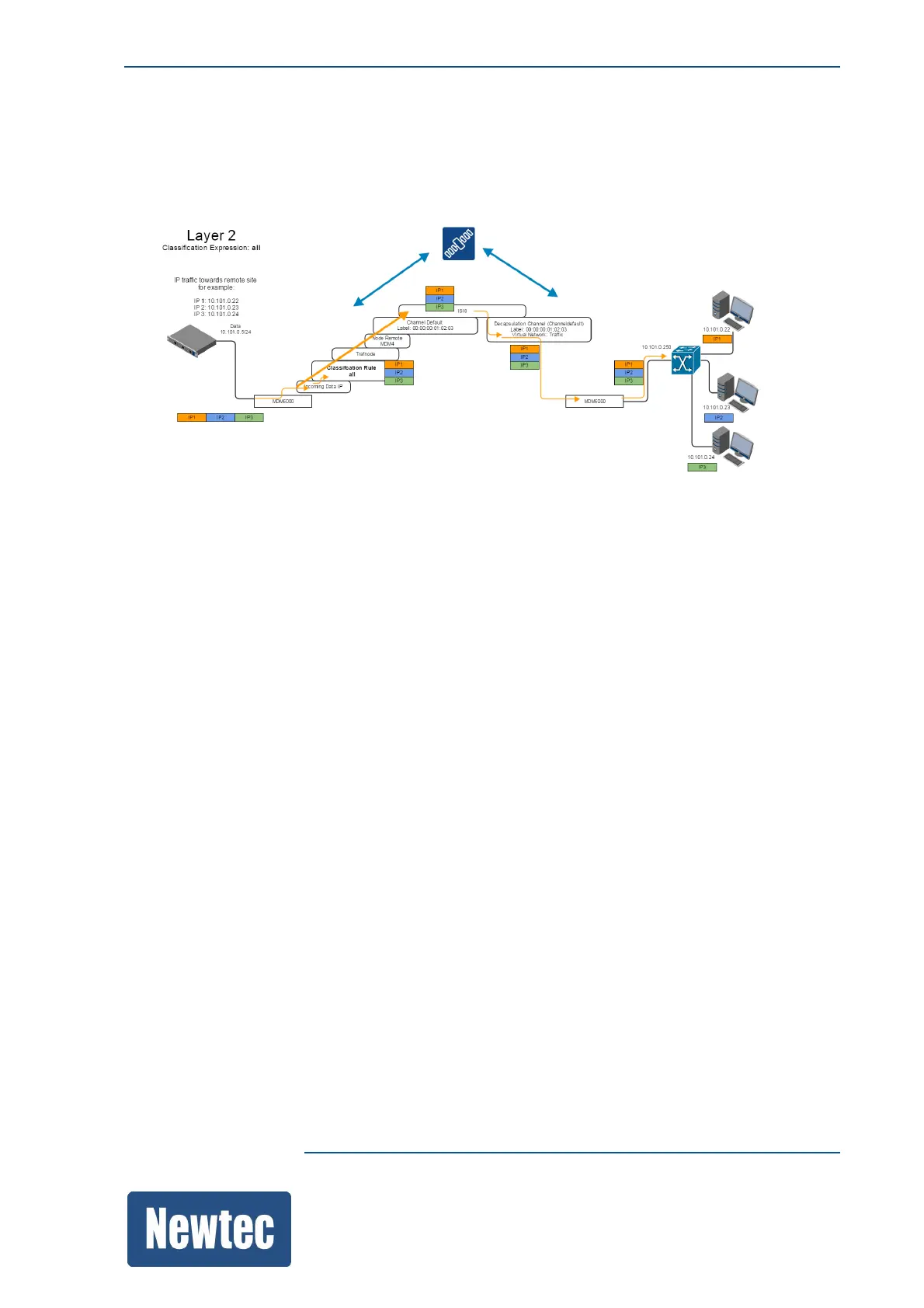

The following picture shows the basic expression "all".
Use this expression to capture all incoming packets.
The previous figure shows that IP traffic, with different IP destination addresses, is forwarded
towards the remote site.
Have a look at the following example video to see how to configure the Encapsulator.
classificationexpressionL2all.mp4
The following steps are taken:
Transmit
1. IP traffic is entering the MDM9000.
2. The traffic is inserted into the encapsulator.
3. The IP traffic is filtered according to the classification rule.
In this case "all", all IP packets are further processed by the shaping tree (Trafnode and Node
Remote MDM4).
4. The shaped traffic is inserted into a channel (Channel Default).
5. A label can be assigned to the shaped traffic.
6. The shaped traffic is linked to a specific Input Stream Identifier (ISI8).
7. The shaped traffic is modulated and transmitted.
