Appendix - Back Panel Combinations
MDM9000 Satellite Modem
23 Appendix - Back Panel Combinations
This appendix provides an overview of the possible back panel combinations for the MDM9000.

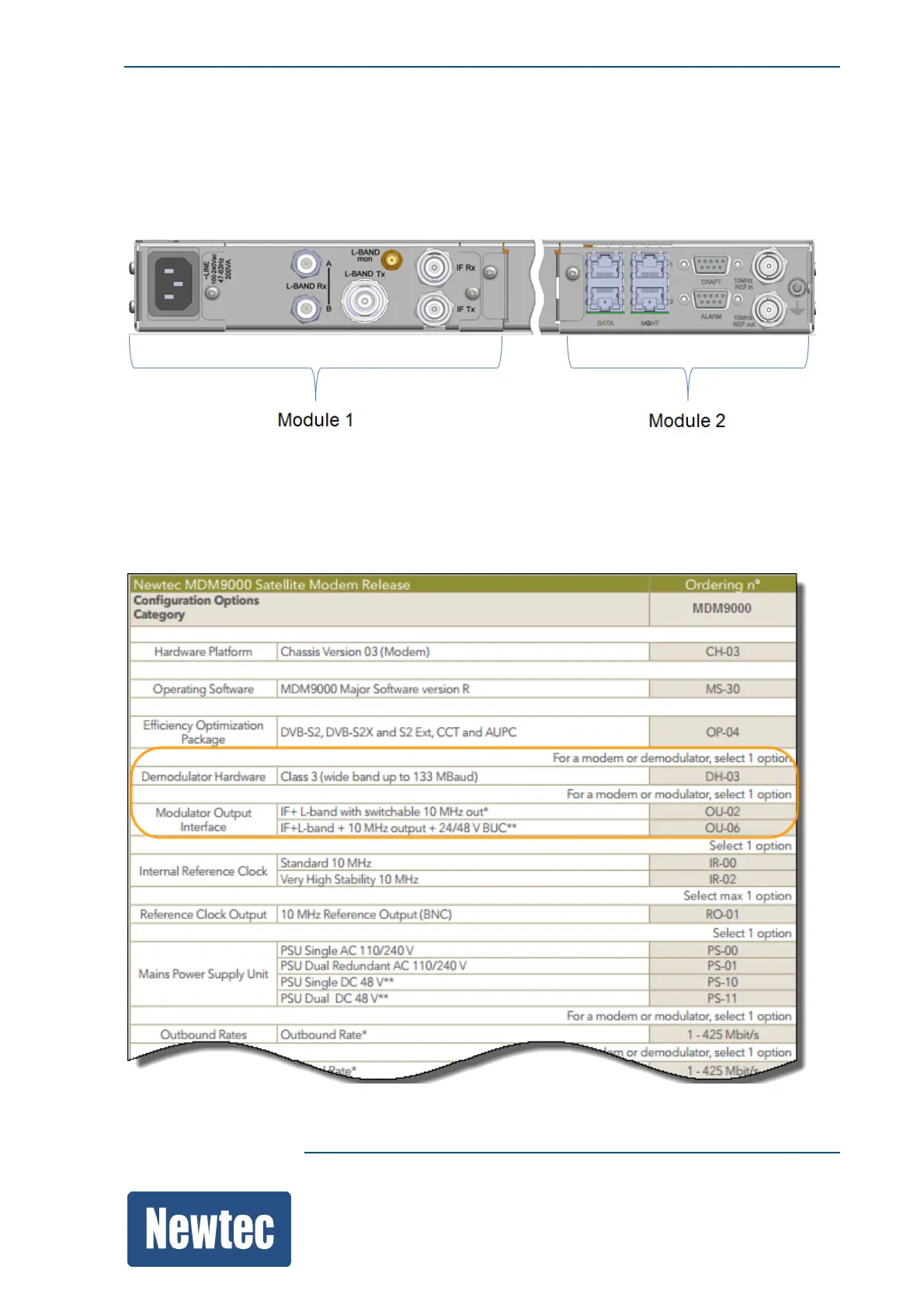

To provide the overview, the back panel is split up into two modules, this is shown in the following
figure:
23.1 Module 1
23.1.1 Demodulator Input and Modulator Output Interface
