How to Manage the Device
MDM9000 Satellite Modem
13.5.12 Parameters in the GUI

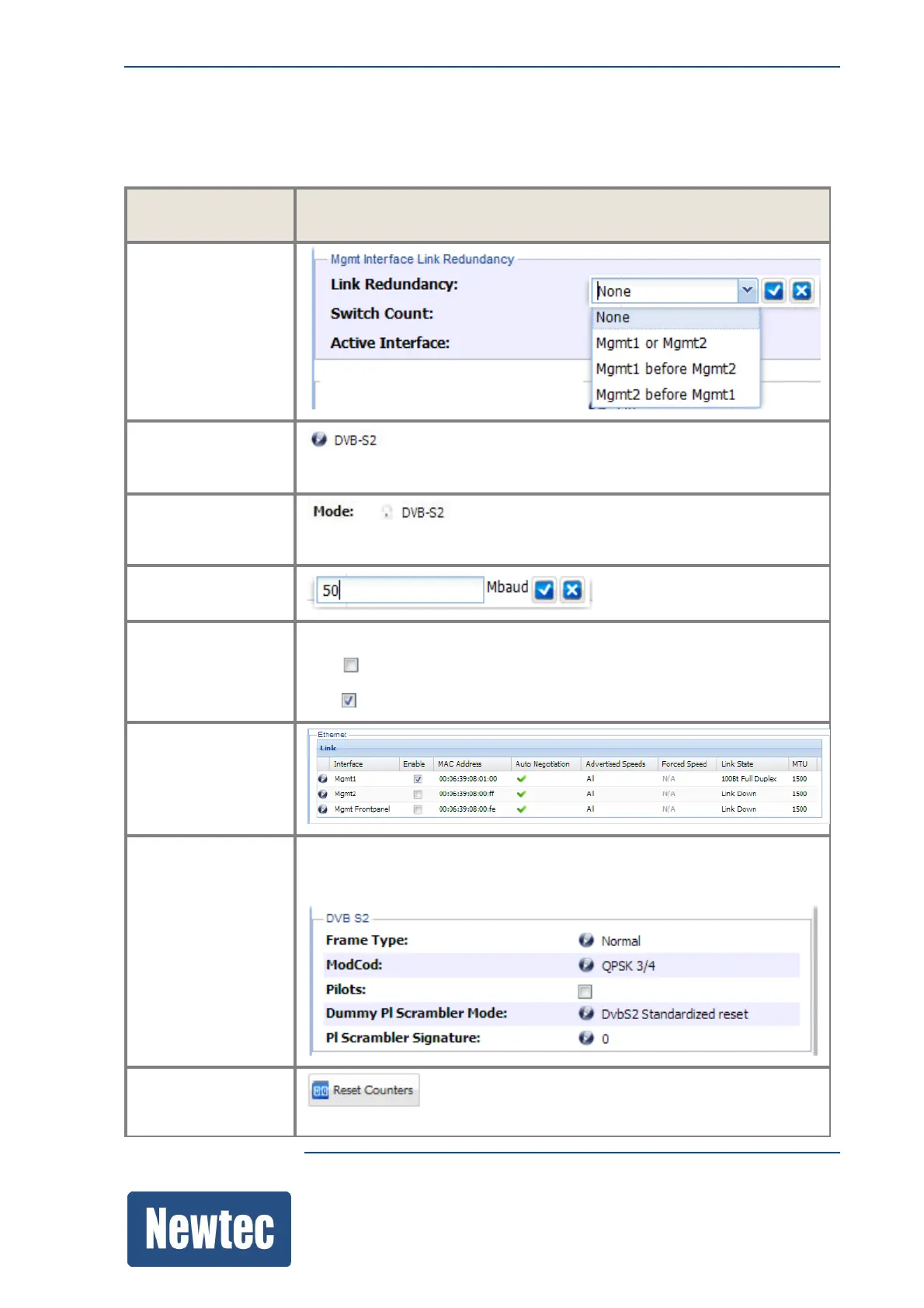

The GUI contains different types of parameter dialogue boxes to configure all parameters.
Dialogue Box
Type
Example
Drop-down-list-box
Edit
This pencil icon indicates that it is possible to edit the parameter.
Lock
The lock icon indicates that it is not possible to edit the parameter.
Data field
Check box The check box has two states.
Off
On
Table
Functional group This groups a set of parameters that belong together. The following
figure is an example of specific DVB-S2 settings (Note, this group can be
found under the modulator.)
Reset button
