Newtec MDM9000 - 128-Bit Keys

Newtec Proprietary
Confidentiality: Unrestricted
R3.2_v1.0
310/387
Feature Descriptions
MDM9000 Satellite Modem
16.18.4.1 128-Bit Keys

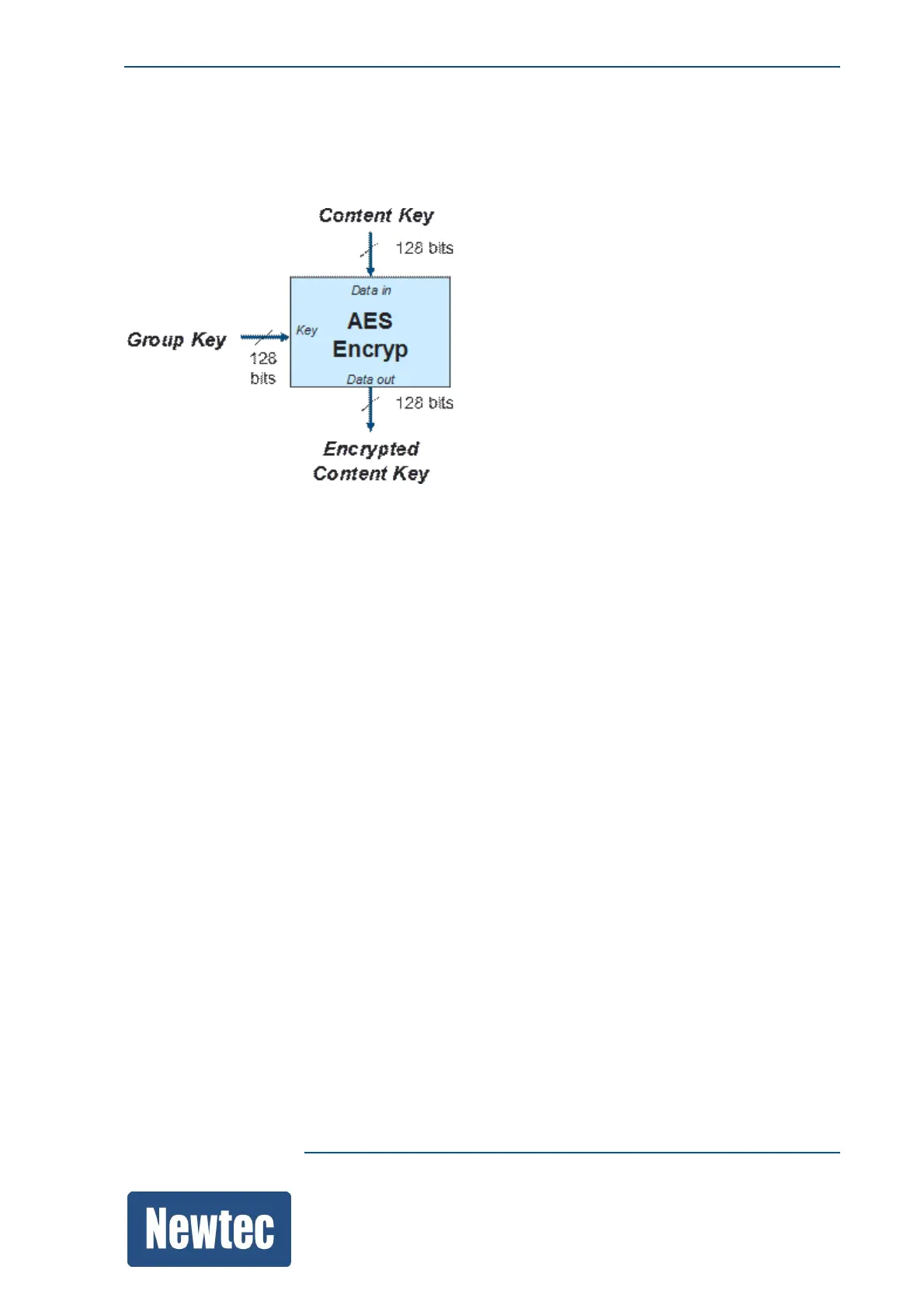

The computation of the encrypted content key from a given content key is depicted in the following
figure:
The following lines provide a few examples of key computations for reference:
Example 1:
• Content Key: e81816b87e5cf9c4e81816b87e5cf9c4
• Group Key: d9d47fae81fad3154384d79cf1278306
• Encrypted Content Key: be9c253b8e707ee851ba5ce6dd388753
Example 2:
• Content Key: 1234567890abcdef1234567890abcdef
• Group Key: d9d47fae81fad3154384d79cf1278306
• Encrypted Content Key: d52e1da09a29691f85f9d5da74e07bed
Example 3:
• Content Key: 1234567890abcdef1234567890abcdef
• Group Key: 06450f0aaa9b9655ee9c4073097c7b08
• Encrypted Content Key: 9df1586017ee2b0417eebf86ac6d4627
