Quick Configuration Templates
MDM9000 Satellite Modem
12.3 Layer 2 Point to Point ACM Enabled and In-Band
Management

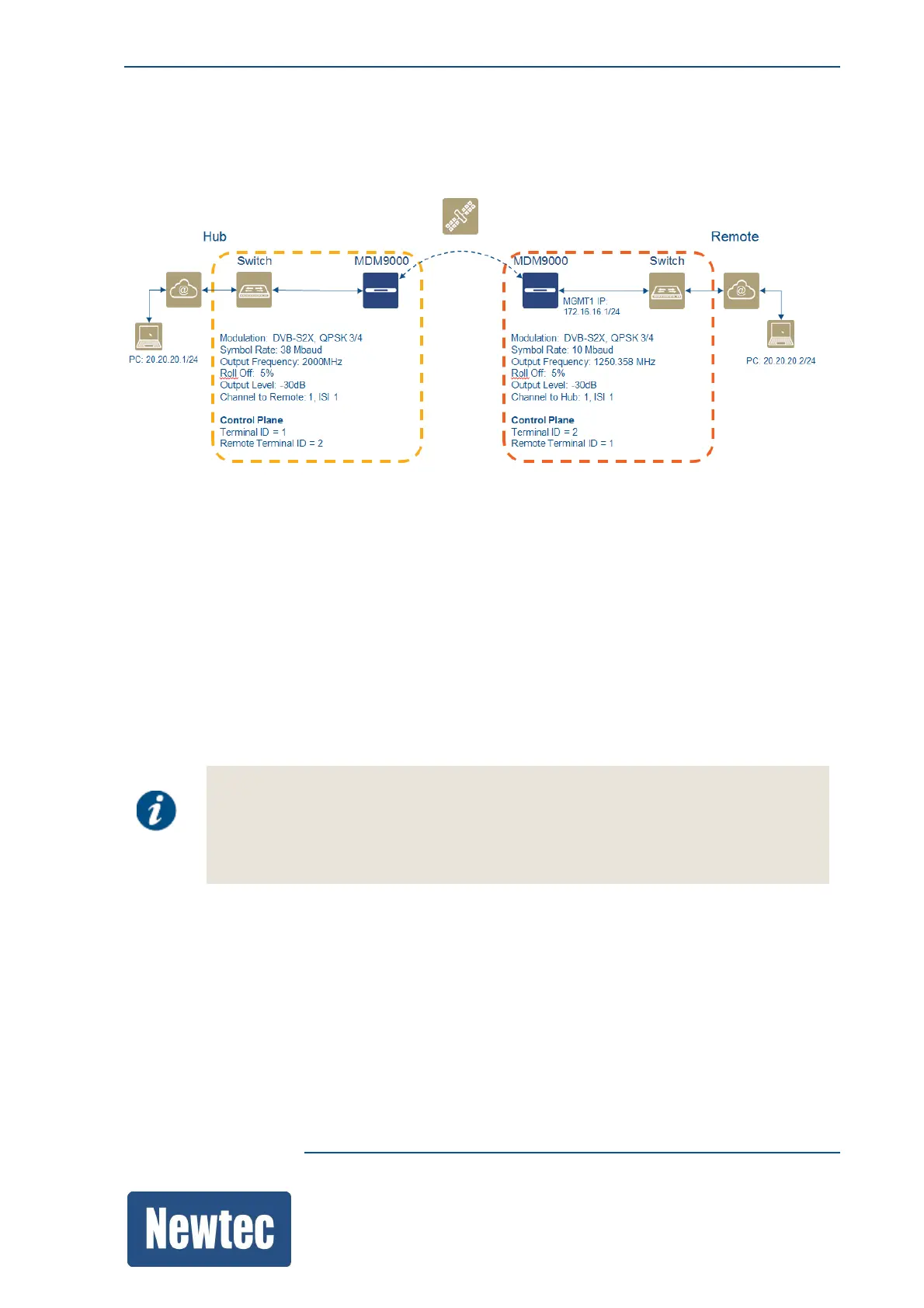

Load these templates (Hub and Remote to make a back to back connection between two MDM9000
devices with FlexACM enabled.
The templates are configured so that the ACM messaging is performed via the control plane
between the two MDM9000 devices. This means that both devices have their terminal ID defined
and enabled.
Next to this the In-band management feature is configured. Manage the remote devices or other
devices on the remote site over this in-band management "network". The in-band management
network is setup in a layer 3 configuration.
The data traffic is forwarded over a layer 2 network.
• On the hub site load the template "P2P L2 Hub ACM and In-band MGMT".
• On the remote site load the template "P2P L2 Remote ACM and In-band MGMT".
Make sure to select the correct Transponder Operation Mode.
(The list of available MODCODs depends on this setting.)
Navigate to:
Modulator >> Link Optimization >> Transponder Operation Mode
• Change the mentioned settings according to the system setup to get your point to point setup up
and running.
• Enable transmit on both modems.
