Block Diagram
MDM9000 Satellite Modem
10.6.1 L-band RX A / L-band RX B Input Interfaces
The carrier arriving from the satellite is taken in on one of the RF interfaces (Demod L-BAND RX A/
L-BAND RX B or IF RX).
The input selection is done in the relevant demodulator functional block of the MDM9000.

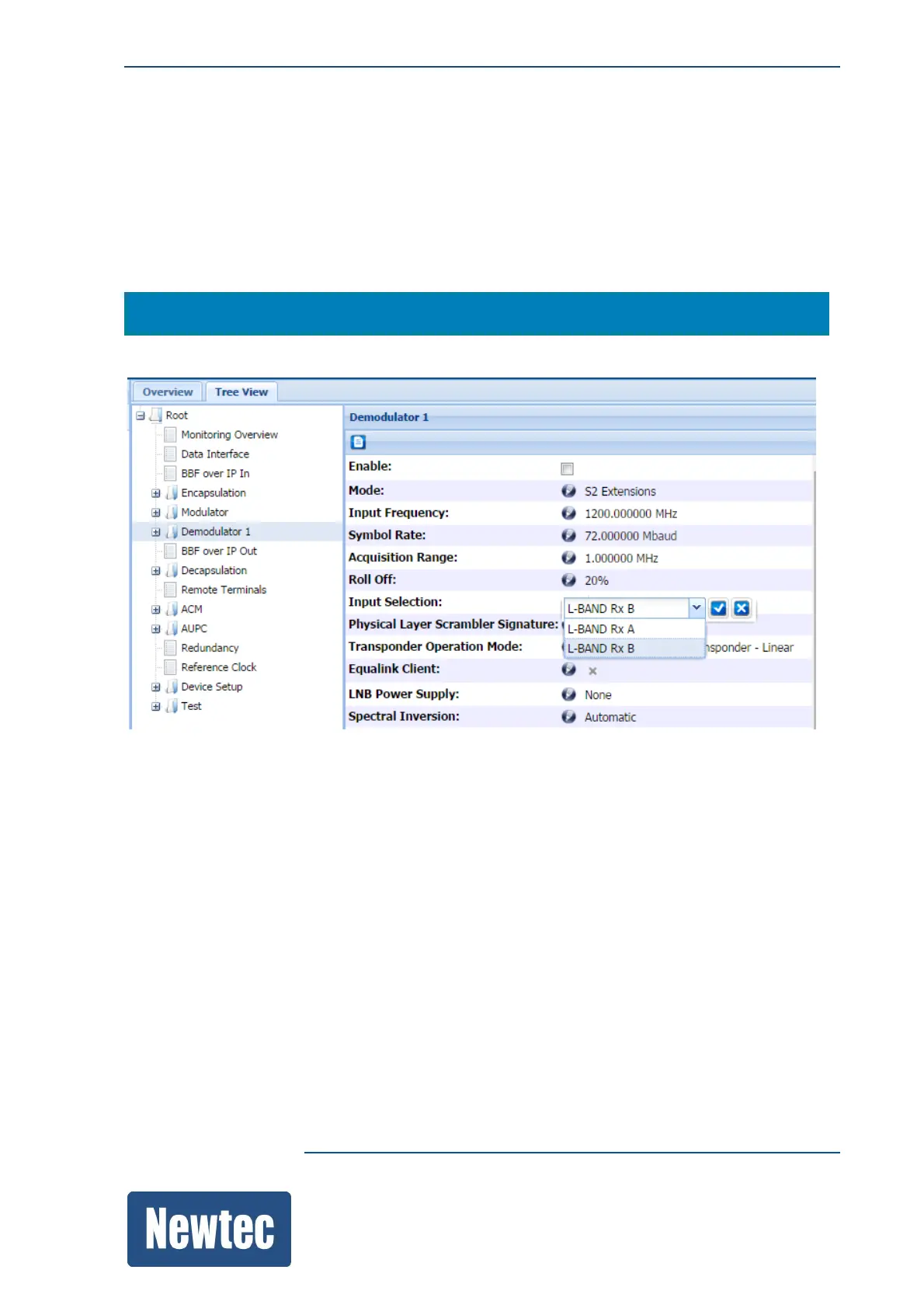

MDM9000 >> Demodulator >> Input Selection
