Appendix - Classification Expressions
MDM9000 Satellite Modem

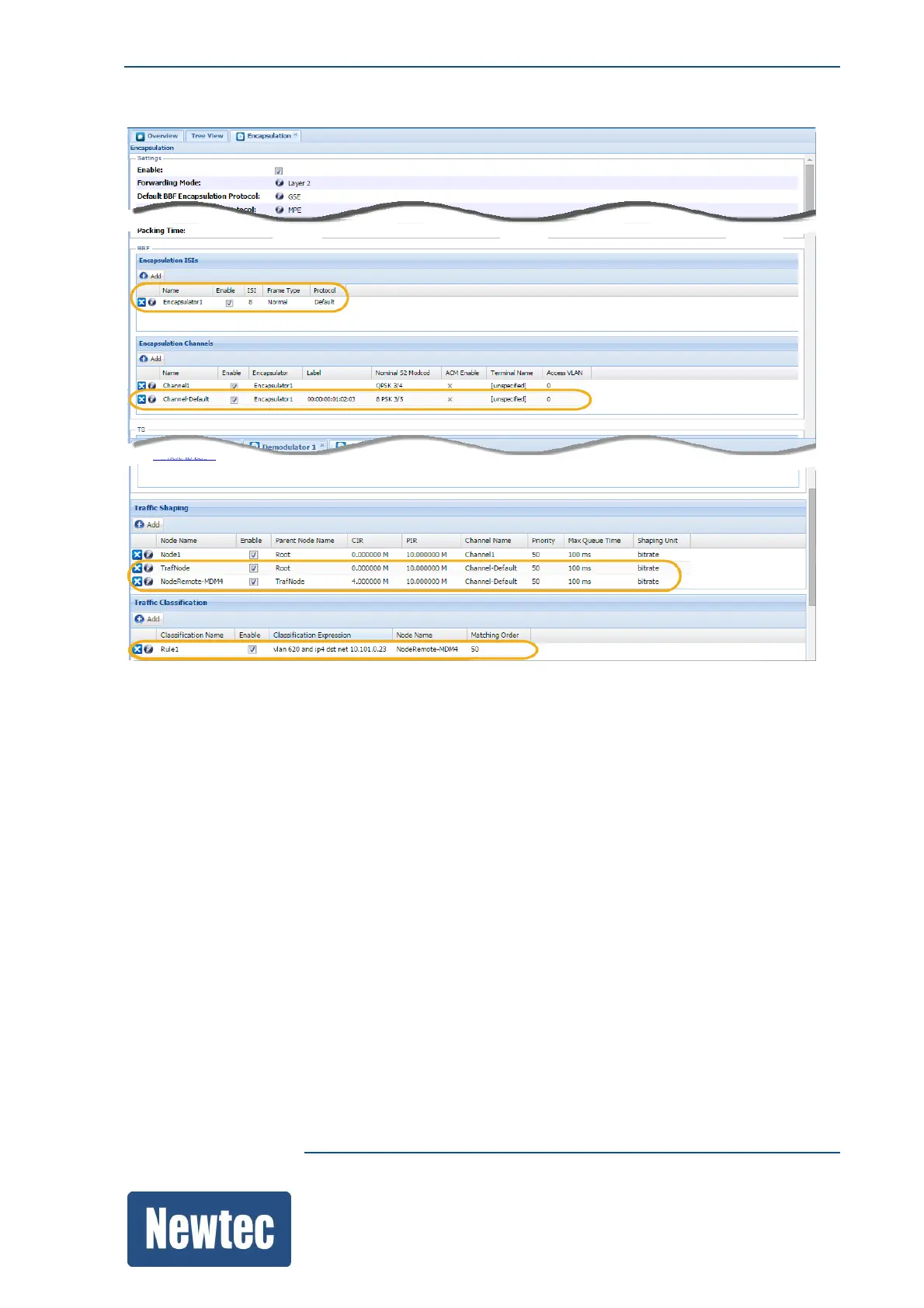

Please check the following screenshot:
Receive
1. The shaped traffic (VLAN620) is received and demodulated on the remote site.
2. The traffic of ISI8 is inserted into the decapsulator.
3. The decapsulator filters on the specified label (when a label is specified on the transmit site).
4. The traffic is forwarded towards the devices with the same VLAN ID.
