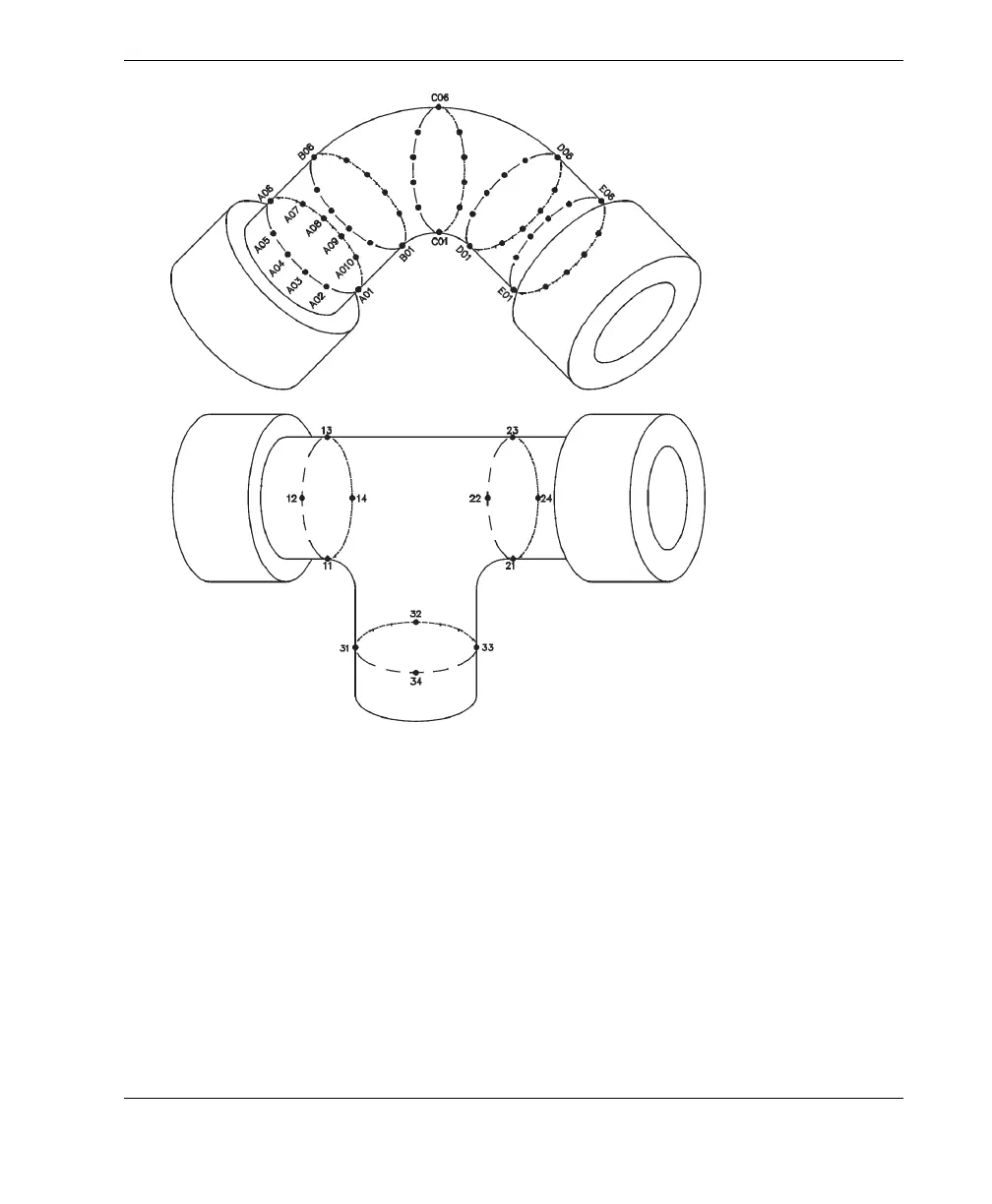

Figure 6-23 Differently named grid for each part
To create a 2-D grid data file
1. In the measurement screen, press [FILE], and then select CREATE (see “Creating
a Data File” on page 92 for details on the first parameters).
2. At the bottom of the CREATE screen, select CONTINUE.
3. In the second page of the CREATE screen (see Figure 6-24 on page 102):
a) Enter the START COLUMN, END COLUMN, START ROW, and END ROW
values.
Name: Elbow
Rows: 01 through 10
Columns: A through E
IDs: Elbow/A0 through
Elbow/E10
Name: Tee
Rows: 1 through 4
Columns: 1 through 3
IDs: Tee/11 through Tee/34
