Olympus 45MG - Figure 5-1 Plugging in the Transducer; Figure 5-2 Initial Screen with a Standard D79 X Dual Element Transducer

DMTA-10022-01EN, Rev. C, January 2015
Chapter 5 52

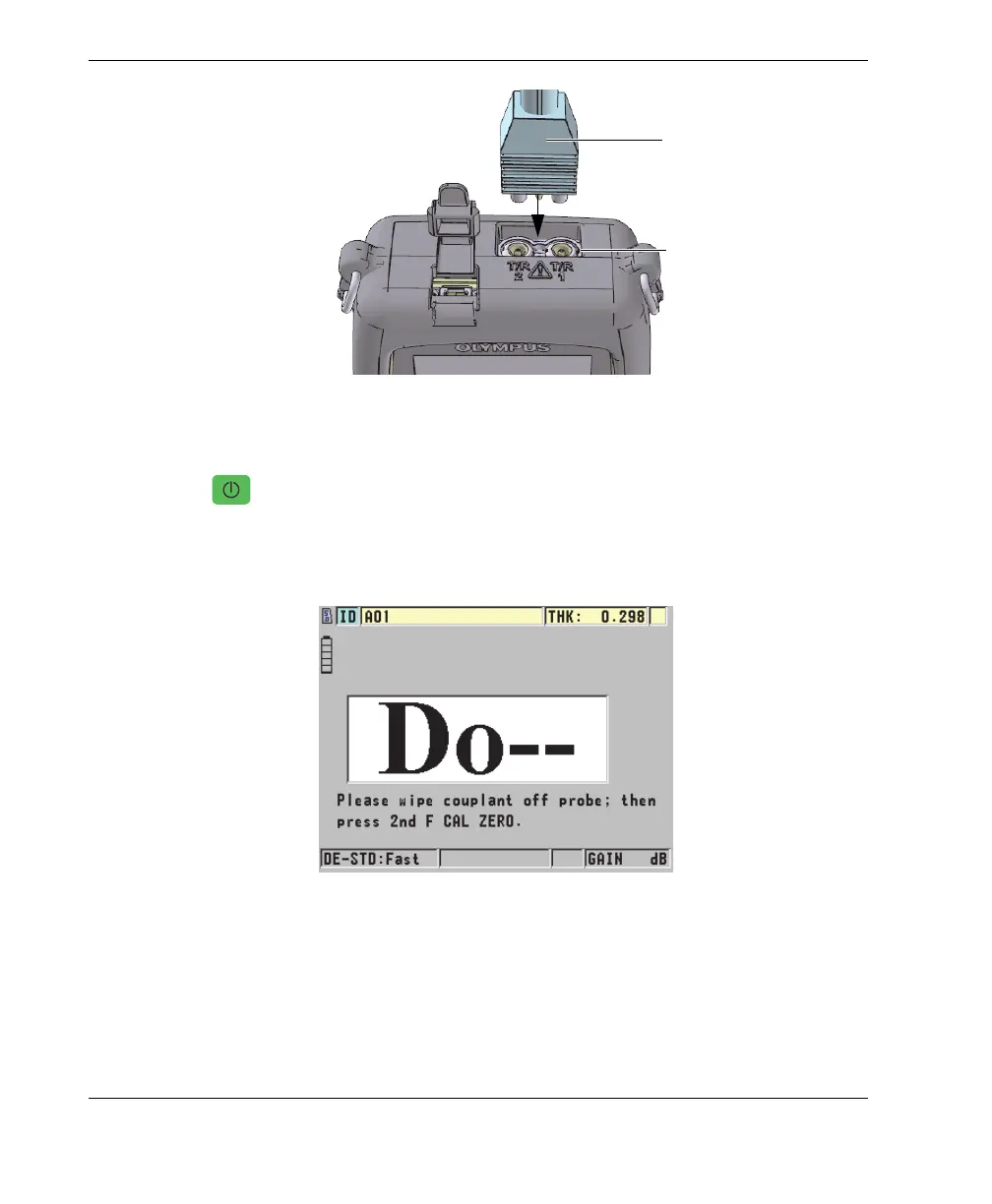

Figure 5-1 Plugging in the transducer
2. Press to start the instrument.
The measurement screen appears. With a standard D79X dual element
transducer, the “Do--” message appears in the measurement screen (see
Figure 5-2 on page 52).
Figure 5-2 Initial screen with a standard D79X dual element transducer
3. For dual element transducers, perform the transducer zero compensation:
a) Wipe the couplant off the tip of the transducer.
b) Press [2nd F], [CAL ZERO] (Do ZERO).
T/R 1 connector for a
single element transducer
Standard dual element
transducer connector
