Olympus 45MG - Figure 9-6 B-Scan Freeze Review Elements; Using the B-Scan

DMTA-10022-01EN, Rev. C, January 2015
Chapter 9 156
page 156). The displayed thickness is either the minimum, maximum, or current
thickness, depending on which B-SCAN FREEZE MODE option is selected. Use
the [] and [] keys to move the review marker and read the thickness at the
review marker location.
If the minimum or maximum value moves off the B-scan screen, press [FREEZE] to
center the B-scan and the review marker on the minimum or maximum thickness.

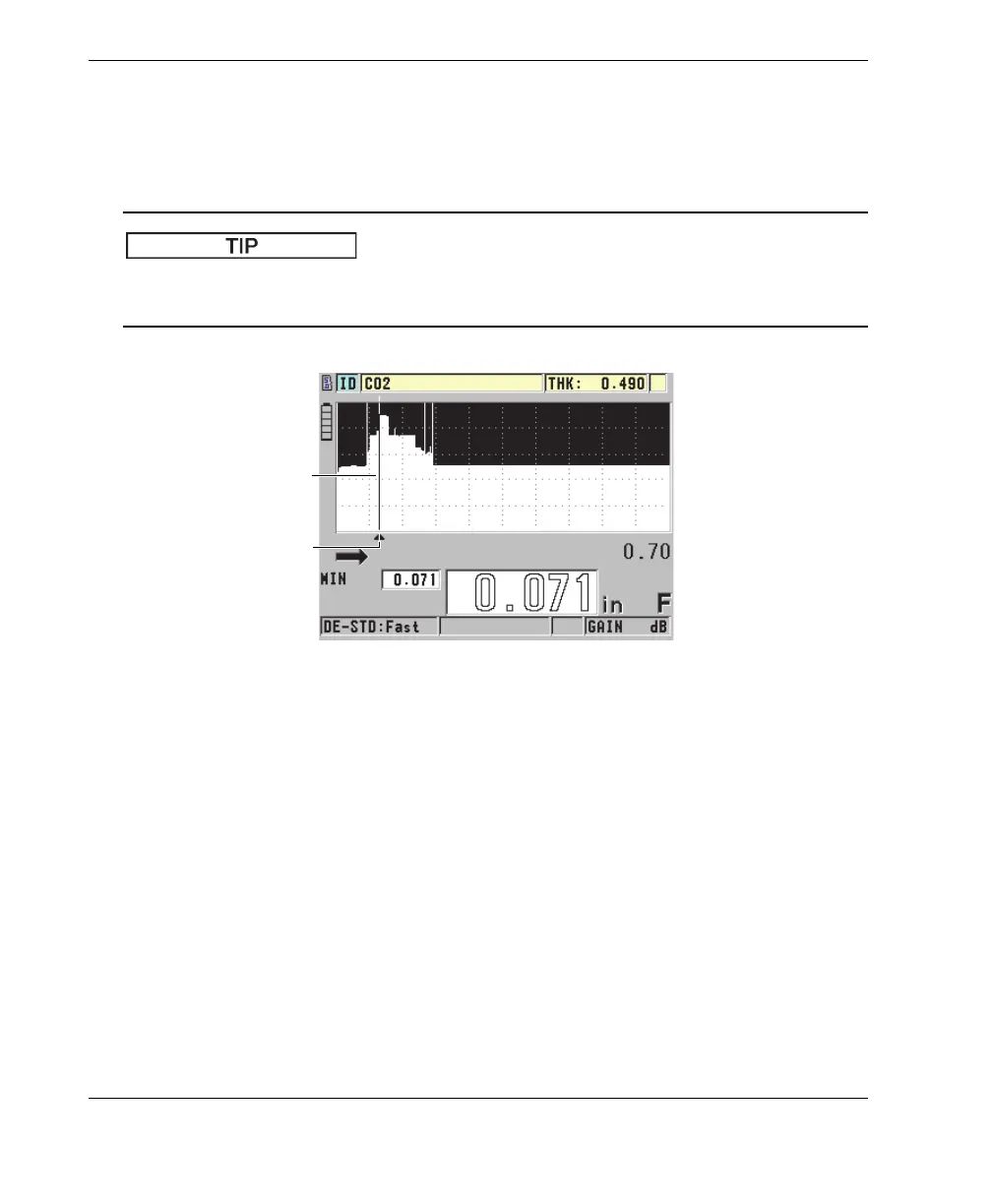

Figure 9-6 B-scan freeze review elements
MAX THK MODE:
Determines the vertical scale of the B-scan.
9.3.1 Using the B-Scan
The following procedure describes how to activate and use the B-scan.
To use the B-scan
1. While in the measurement screen, press [SETUP], and then select B-SCAN.
2. In the B-SCAN screen, set B-SCAN ENABLE to ON, and then configure the other
B-scan parameter as desired (see “B-Scan” on page 153).
3. Press [MEAS] to return to the measurement screen with the B-scan active.
TIP
Review marker
Minimum location
marker
