Olympus 45MG - Figure 6-4 Measuring with the Manual Echo-To-Echo Detection Mode

DMTA-10022-01EN, Rev. C, January 2015
Chapter 6 72

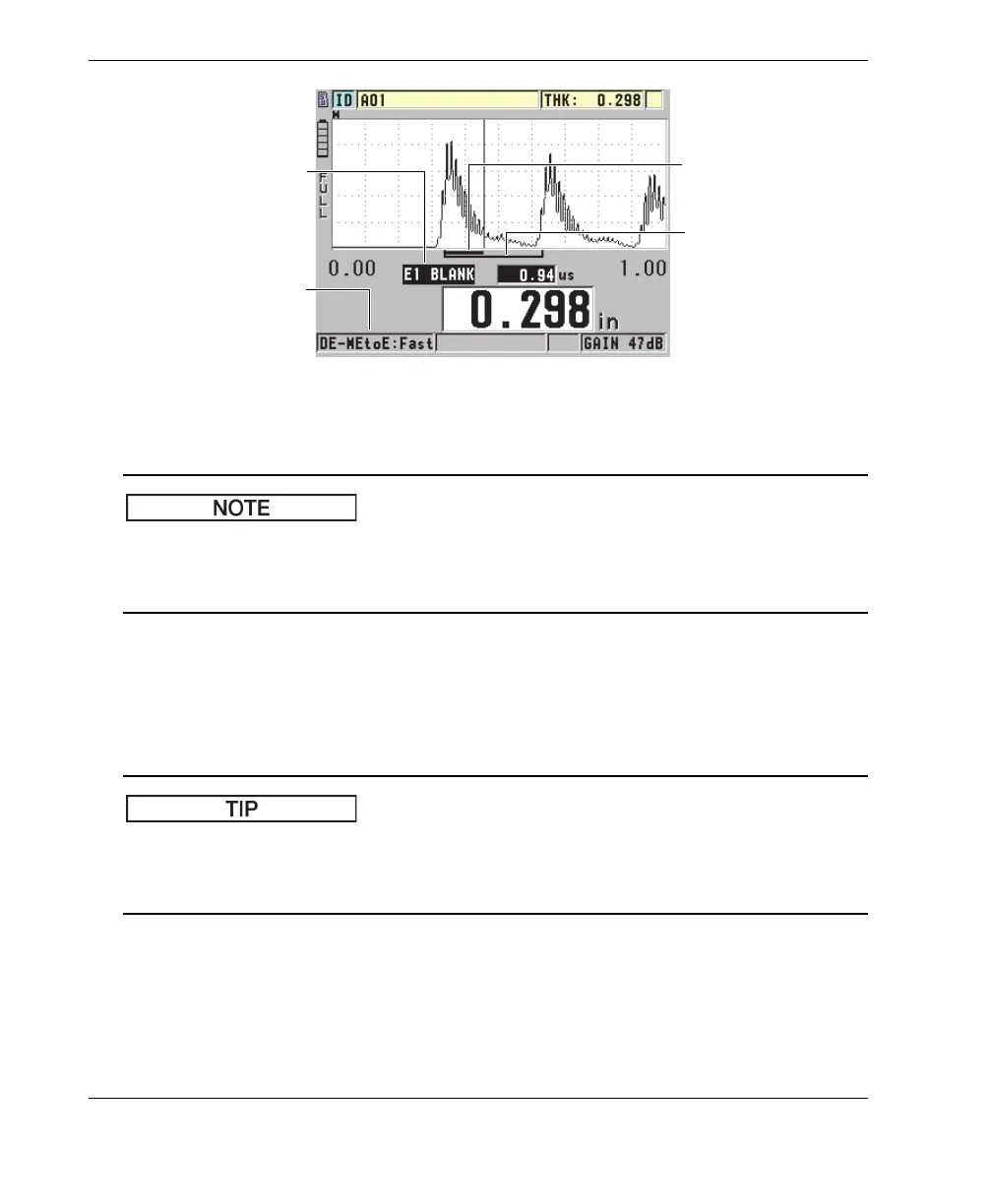

Figure 6-4 Measuring with the manual Echo-to-Echo detection mode
In severe corrosion situations where valid multiple echoes are not present, you must
use either the standard or optional THRU-COAT mode in order to be able to measure
thicknesses.
Dual element transducers can be used in all three modes, and all measurement,
display, and datalogger functions can be used with the echo-to-echo modes. The
internal datalogger recognizes all necessary echo-to-echo information, and saves it in
order to upload and download thickness, waveform, and setup data.
It is not necessary to switch between echo detection modes when measuring both
coated and uncoated areas, because it is possible to measure uncoated wall
thicknesses using an echo-to-echo mode.
To change the echo detection mode
1. In the measurement screen, press [SETUP], and then select MEAS.
Dual element (DE)
manual Echo-to-Echo
(MEtoE) detection mode
E1 blank bar
Echo-to-Echo detection
bar
[WAVE ADJ] parameter
NOTE
TIP
