Olympus 45MG - Menus and Submenus; Figure 3-7 Menu and Submenu Example

DMTA-10022-01EN, Rev. C, January 2015
Software User Interface Elements 37
3.2 Menus and Submenus
The 45MG displays menus and submenus when you press certain front panel keys.
The menu appears at the top-left corner of the screen (see Figure 3-7 on page 37). If
applicable, a submenu conveniently showing the parameters available for the
highlighted menu command also appears.

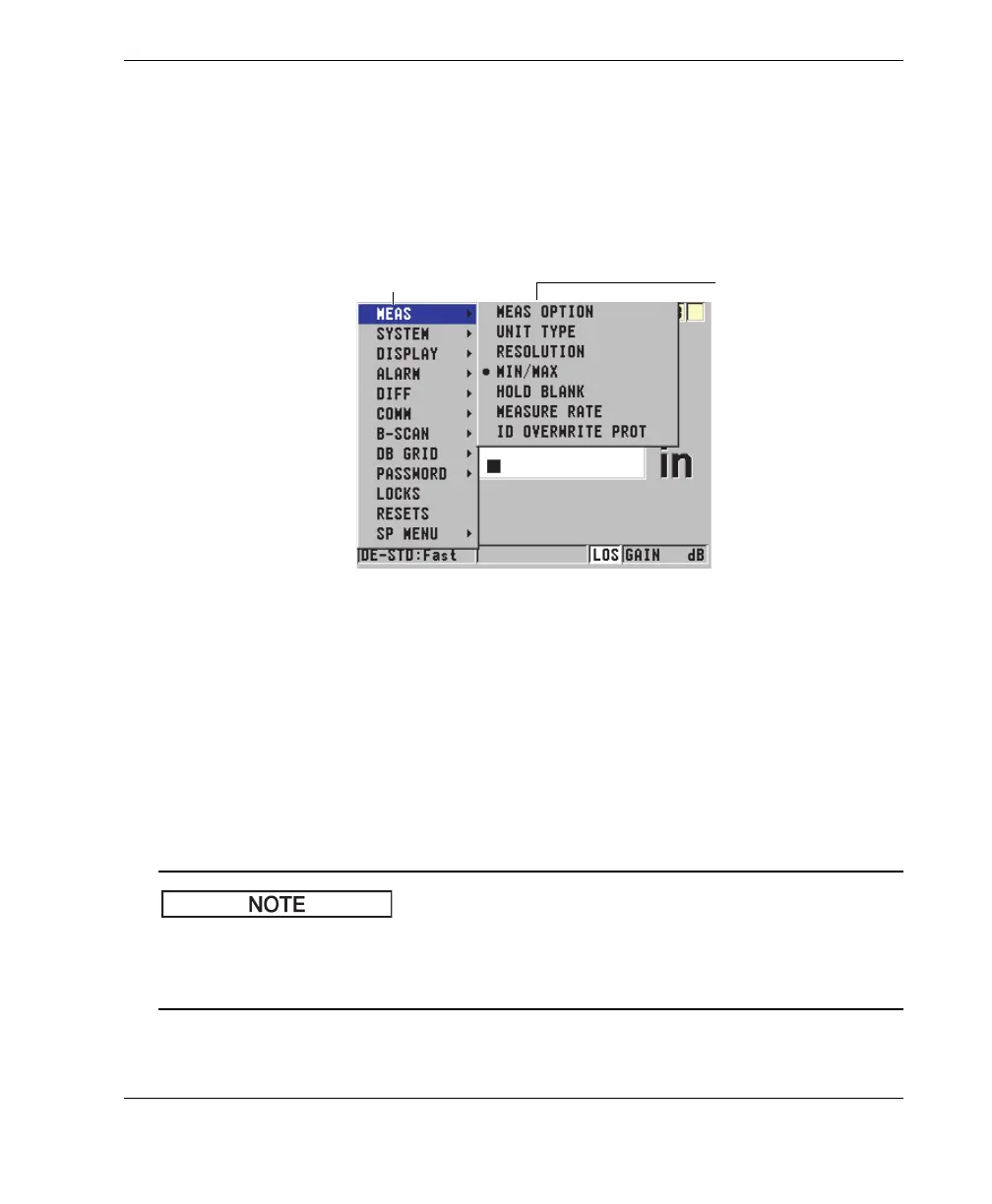

Figure 3-7 Menu and submenu example
To select a menu or a submenu command
1. Press [SETUP] or [FILE] (with the Datalogger option) to display a menu.
2. Use the [] and [] keys to highlight the desired menu command.
3. If applicable and needed, use the [] key to highlight the submenu, and then use
the [] and [] keys to highlight the desired submenu command.
4. Press [ENTER] to select the highlighted menu or submenu command.
In the remainder of this document, the above procedure is summarized by a simple
instruction to select a specific menu or submenu command. For example: “In the
menu, select MEAS.”
Menu Submenu for the
highlighted menu
command
NOTE
