The resulting zoomed waveform depends on the current measurement mode. The
zoom for D79X dual element transducers and mode 1 single element transducers
centers the first back-wall echo on the screen (see Figure 6-12 on page 85).

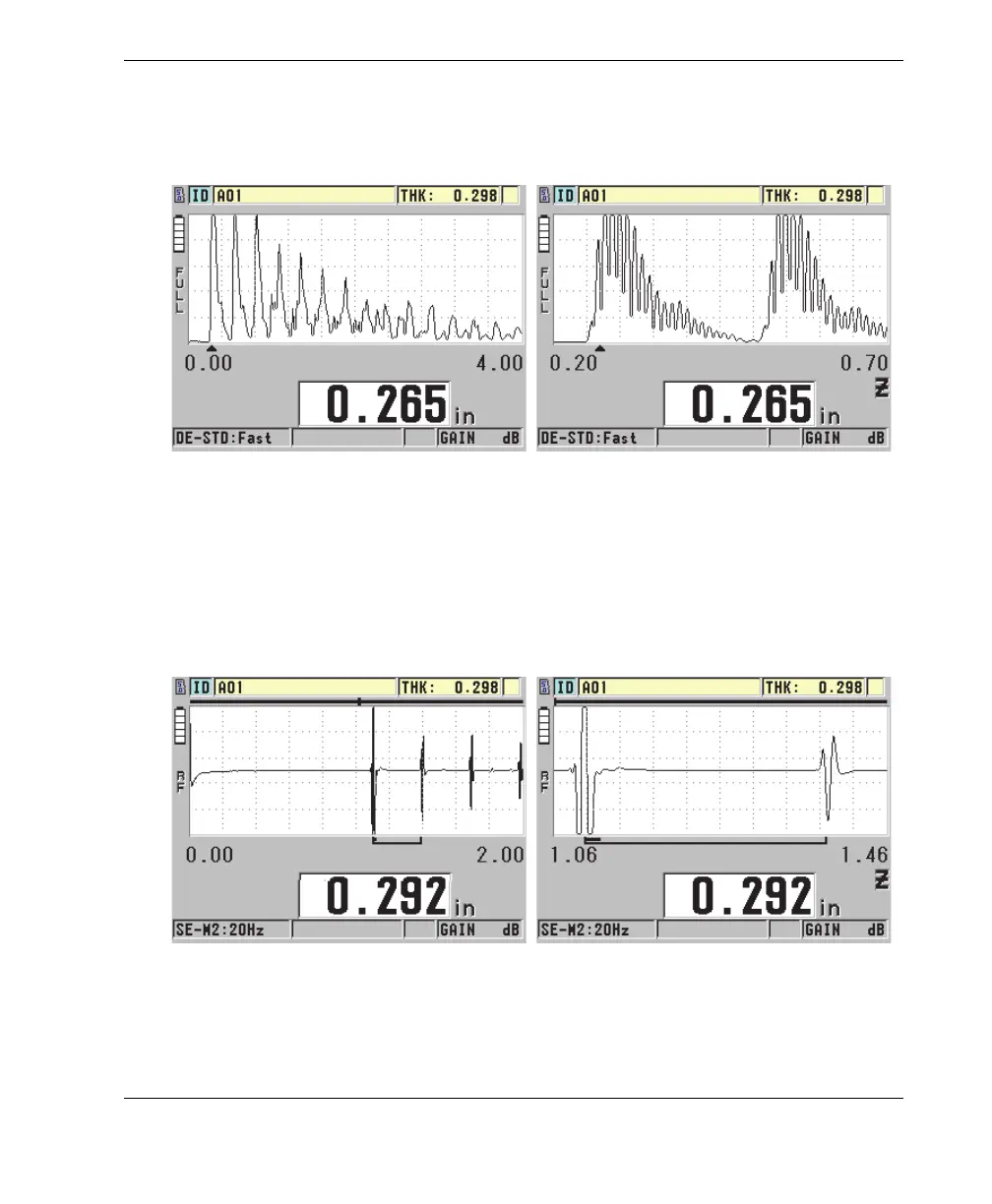

Figure 6-12 Comparing the normal and zoomed display in mode 1
The zoom with single element transducers in mode 2 adjusts the waveform range and
delay so that the interface echo and the first back-wall echo appear on the waveform
display (see Figure 6-13 on page 85).
Figure 6-13 Comparing the normal and zoomed display in mode 2
Normal display Zoomed display
Normal display Zoomed display
