Olympus 45MG - Figure 4-4 the DISPLAY Screen

DMTA-10022-01EN, Rev. C, January 2015
Chapter 4 46
To change the display settings
1. In the measurement screen, press [SETUP], and then select DISPLAY.
Many of the display parameters are only visible when the Waveform or Datalogger
options have been activated.
2. In the DISPLAY screen (see Figure 4-4 on page 46), select the desired parameter
and value for the following parameters:
• WAVEFORM ENABLE allows you to activate or deactivate the waveform
display (see “Waveform Software Option” on page 78 for details).
• ZOOM OPTION allows you to activate or deactivate the zoom function (see
“Activating the Zoom Function (Available Only with the Waveform Option)”
on page 84 for details).
• RECTIFICATION allows you to select one of the rectification modes (see
“Waveform Rectification” on page 80 for details).
• WAVEFORM TRACE is used to select one of the trace types (see “Waveform
Trace” on page 82 for details).
• COLOR SCHEME is used to select either the INDOOR or OUTDOOR
optimized visibility (see “Color Schemes” on page 47 for details).
• DISPLAY BRIGHTNESS is used to select one of the predefined brightness
levels (see “Display Brightness” on page 48 for details).
• ID REVIEW LINE is used to activate or deactivate the feature.

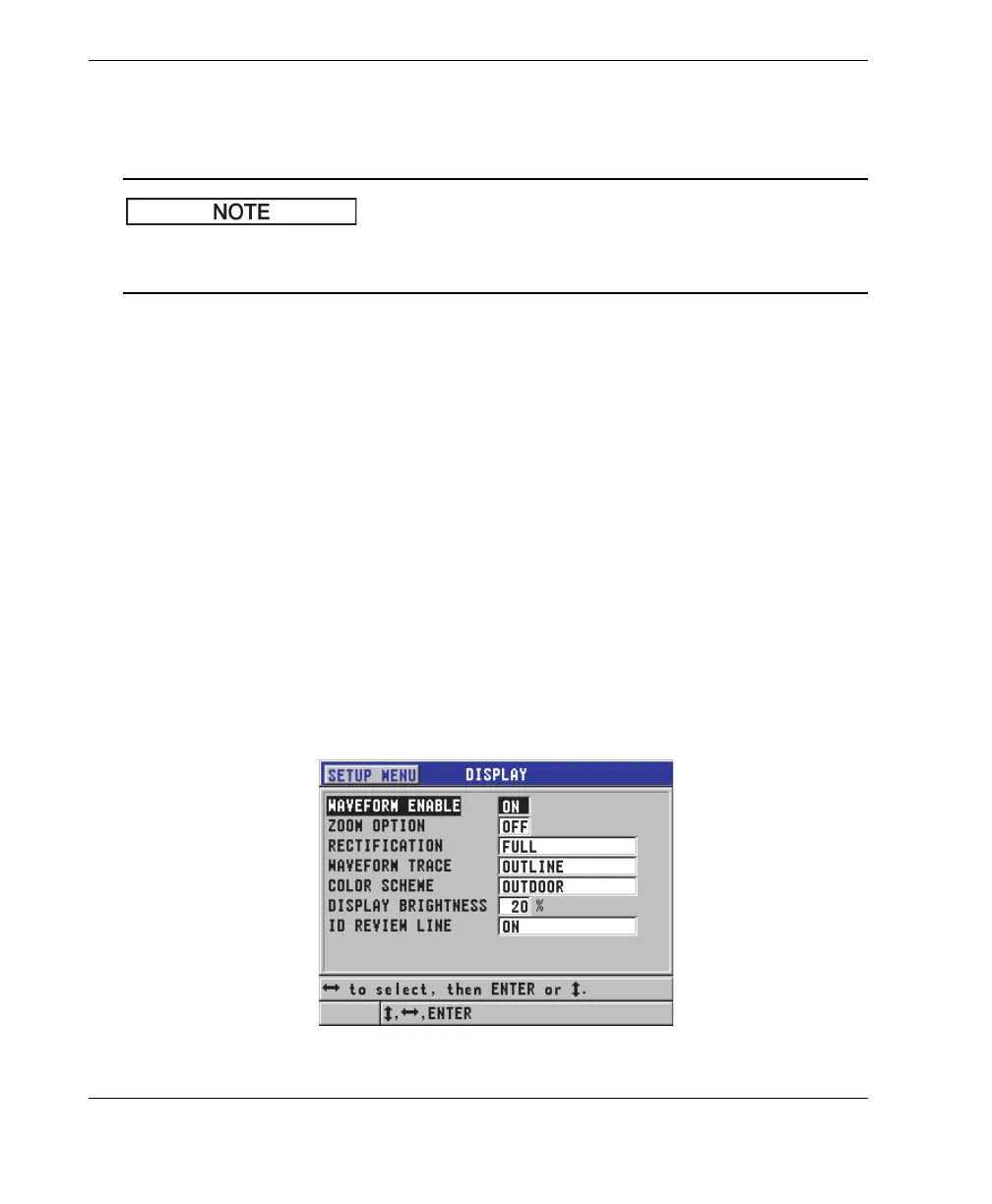

Figure 4-4 The DISPLAY screen
NOTE
