Olympus 45MG - Figure 6-29 Entering New File Information

DMTA-10022-01EN, Rev. C, January 2015
Chapter 6 110

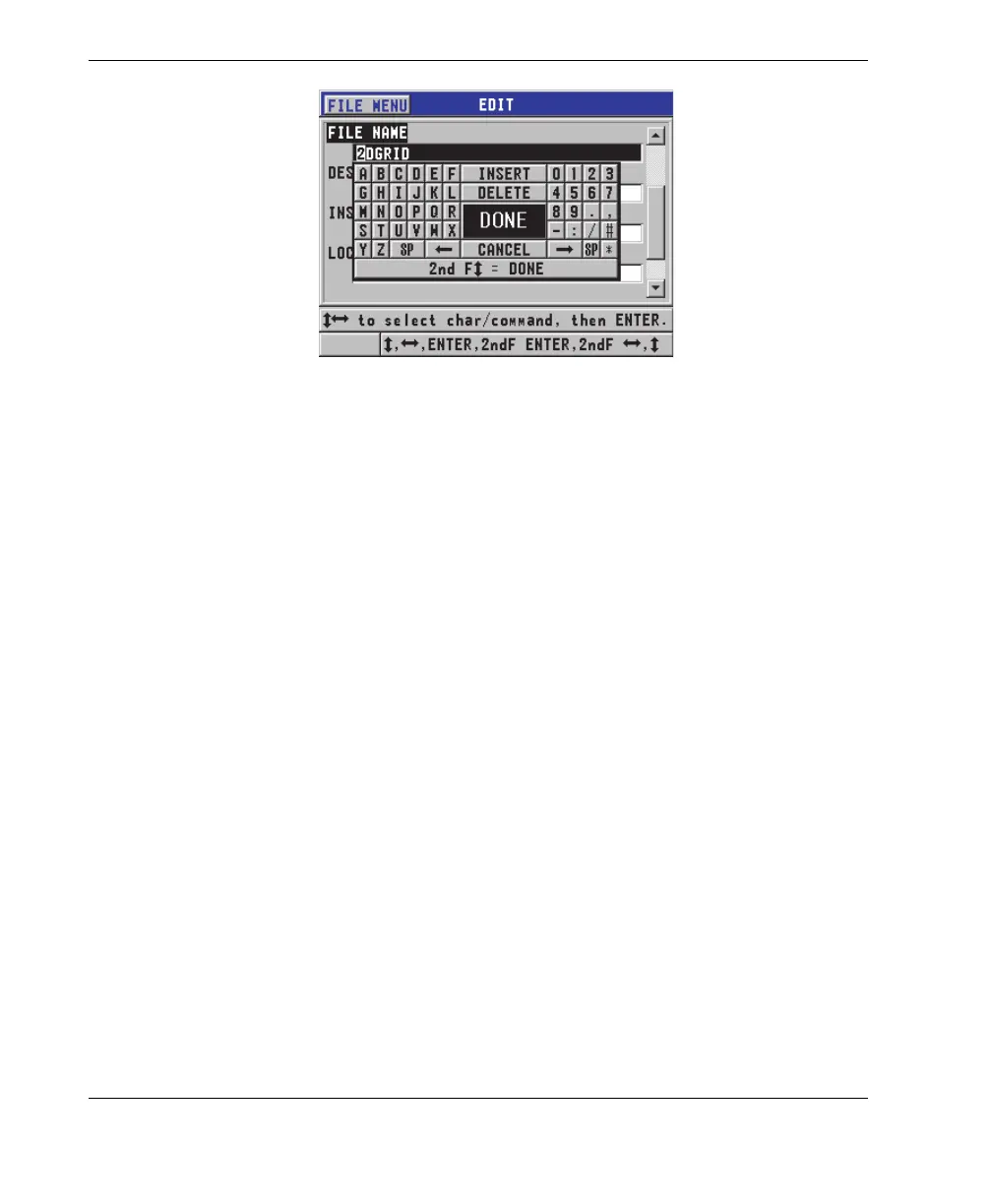

Figure 6-29 Entering new file information
3. For a grid file, select CONTINUE, and then perform the following actions in the
second page of the EDIT screen (see Figure 6-30 on page 111):
a) Increase the END COLUMN and END ROW values as needed. These values
cannot be decreased.
b) If needed, change the INC 1ST BY value.
c) Change the incrementing direction of rows, columns, points, tubes, and
elevations.
FORWARD increments in the direction specified when the file was created,
and REVERSE increments in the opposite direction of how the file was
originally created.
d) Select UPDATE.
