Olympus 45MG - 12.7 Viewing the Instrument Status; Figure 12-4 Example of the SW DIAG Screen

DMTA-10022-01EN, Rev. C, January 2015
Chapter 12 206
2. In the SP MENU (see Figure 4-2 on page 45), select SW DIAG.
The SW DIAG screen appears, which contains the error log (see Figure 12-4 on
page 206).

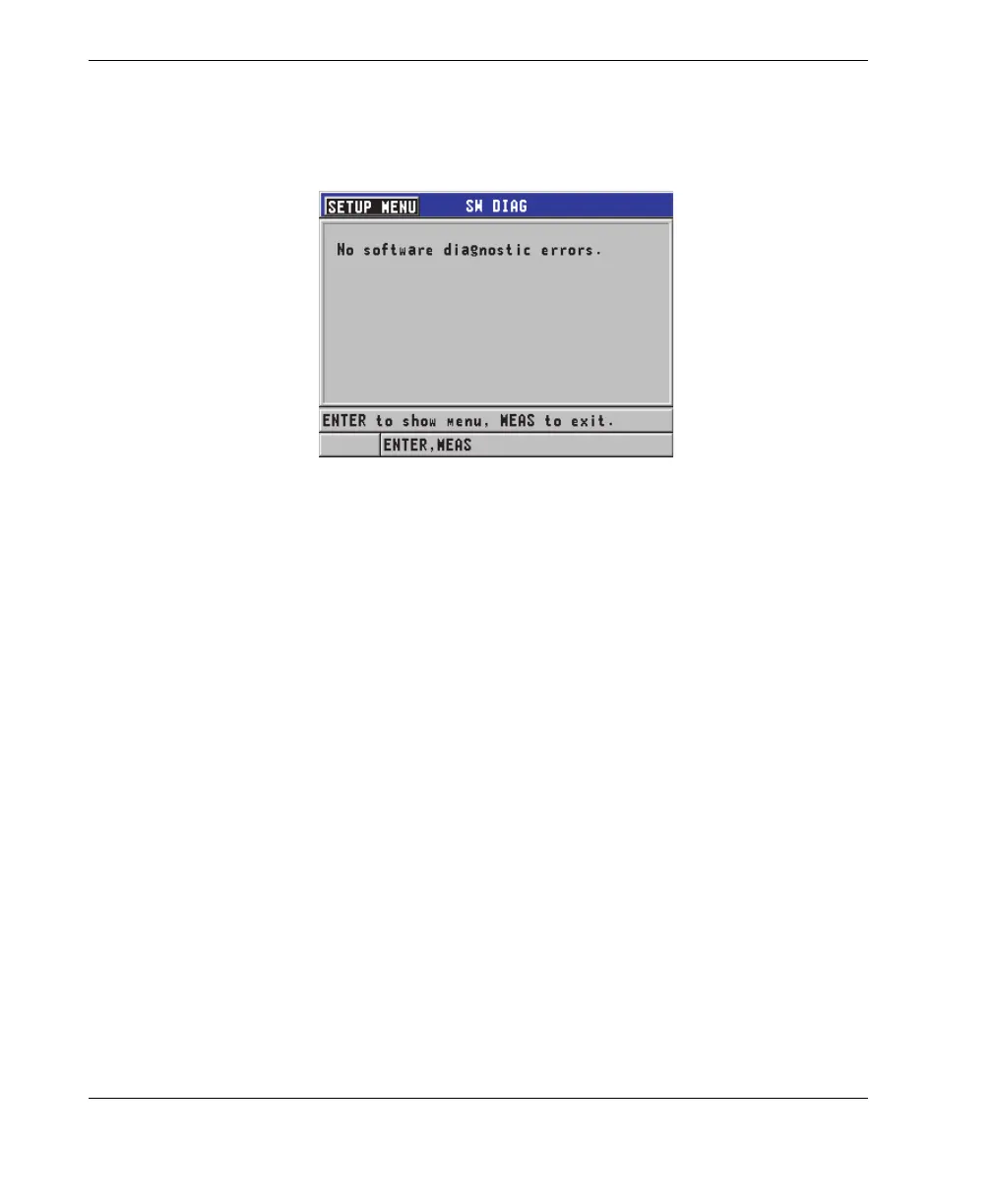

Figure 12-4 Example of the SW DIAG screen
3. Press [MEAS] to return to the measurement screen.
12.7 Viewing the Instrument Status
The STATUS screen lists important information about the instrument. The status
screen displays the following information:
• Current instrument internal temperature
• Current battery charge level
• Instrument model
• Software release date (build date)
•Software version
• Hardware version
• Options code (S/N) to be communicated to Olympus for software option
activation
To view the instrument status
1. In the measurement screen, press [SETUP], then select SP MENU.
