Olympus 45MG - Figure 6-41 the MIN;MAX SUMMARY Report Screen

DMTA-10022-01EN, Rev. C, January 2015
Chapter 6 122
highlighted (see Figure 6-41 on page 122).

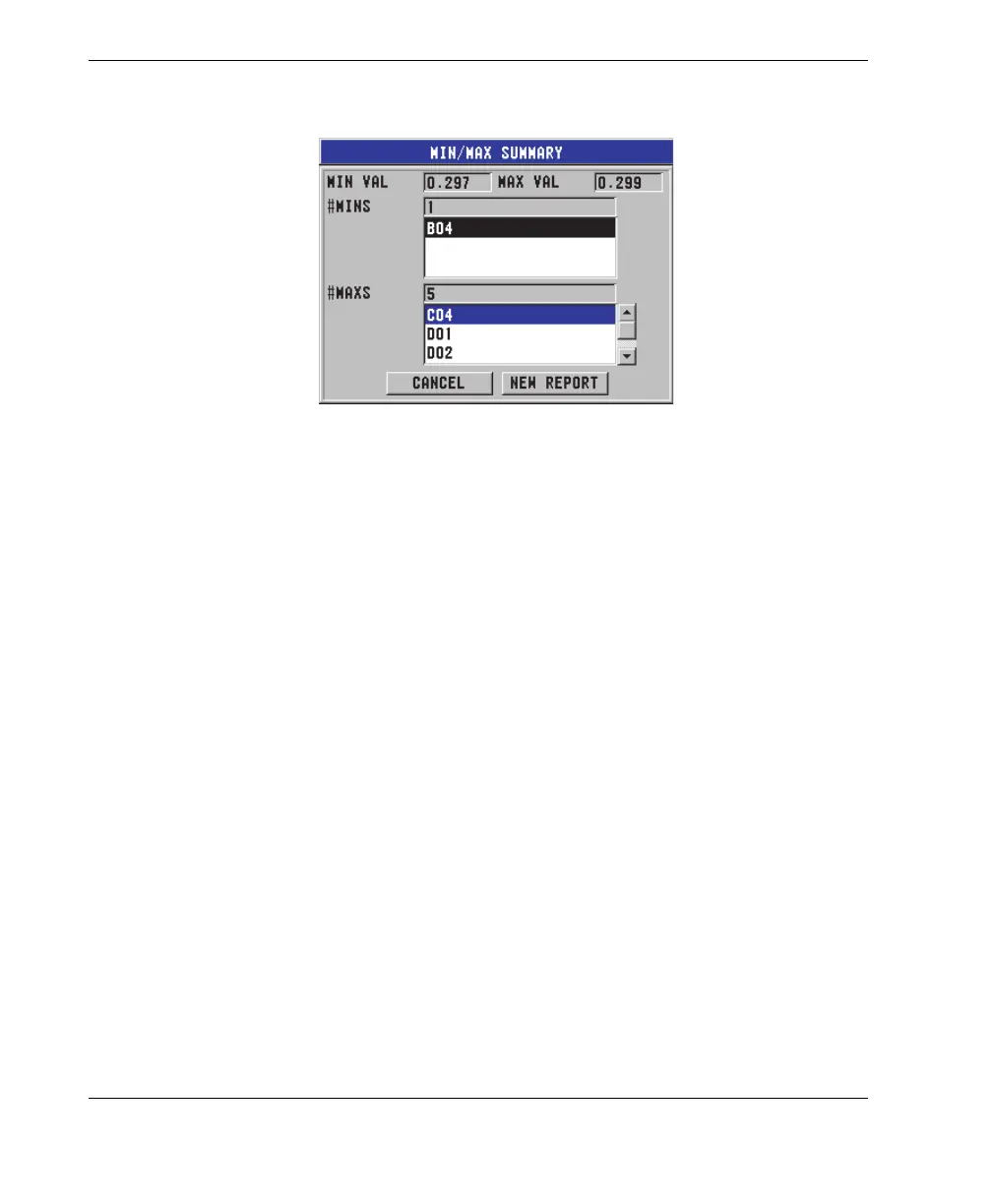

Figure 6-41 The MIN/MAX SUMMARY report screen
c) Press [2nd F], [] or [2nd F], [] to move between the #MINS and #MAXS
lists.
d) Select CANCEL to return to the measurement screen, or NEW REPORT to
generate another report.
5. In the FILE COMPARISON screen (see Figure 6-42 on page 123):
a) In the upper list, select the reference file you want to use in the comparison.
b) In the lower list, select the comparison file (containing newer data for the
same measurement points).
c) Select REPORT.
The FILE COMPARISON report result screen opens with the first maximum
wall-loss ID highlighted (see Figure 6-43 on page 123).
