Olympus 45MG - Boiler Data File Type; Figure 6-24 Configuring the ID Range for a 2-D Grid Data File Type

DMTA-10022-01EN, Rev. C, January 2015
Chapter 6 102
b) Select the ID FORMAT to determine how letters are incremented after Z:
STANDARD: A, B, C... Z, AA, AB, AC... ZZ.
EPRI: A, B, C... Z, AA, BB, CC... ZZ.
c) In INC 1ST BY, select which parameter increments first (ROW or COLUMN).
d) Select CREATE.

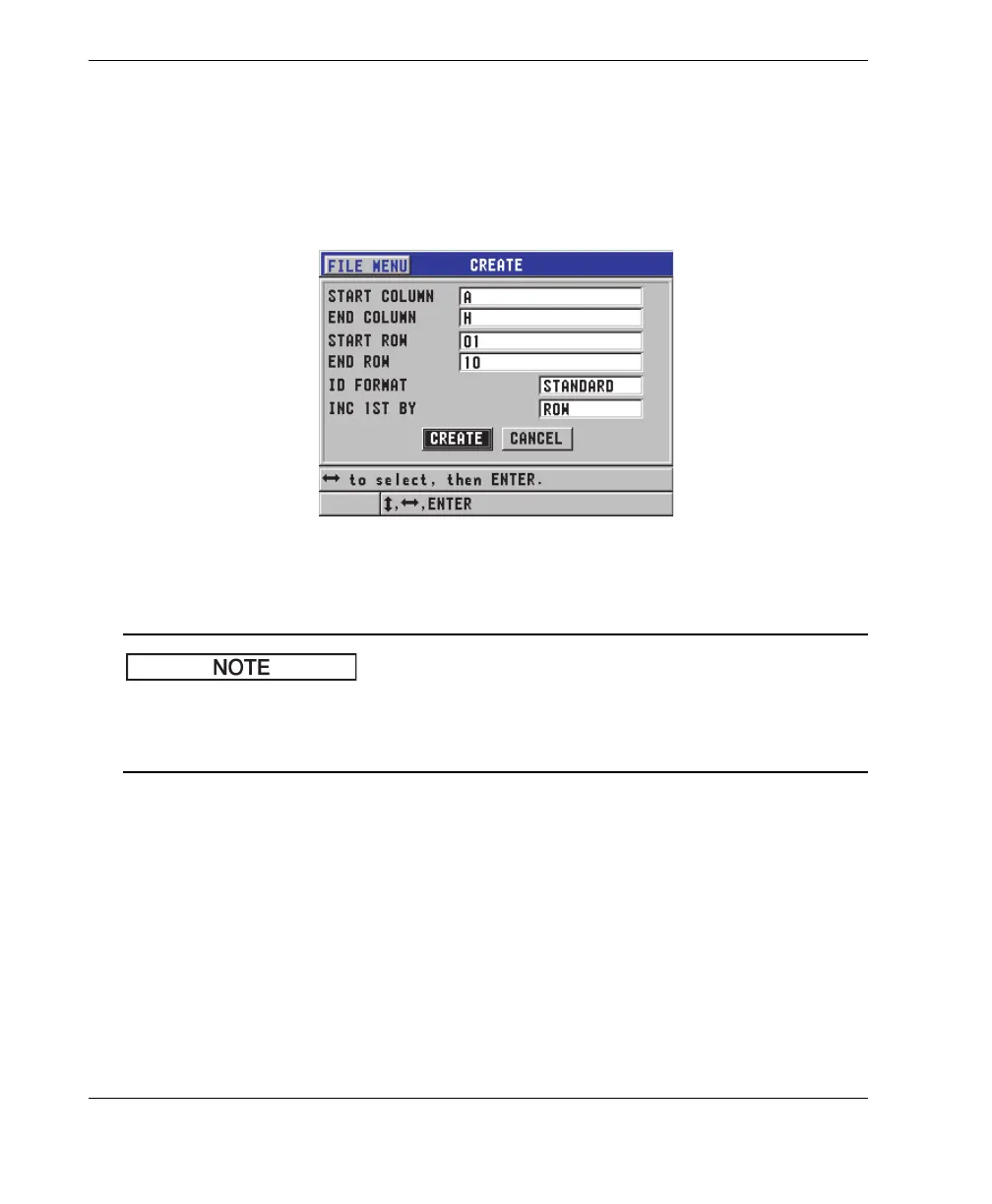

Figure 6-24 Configuring the ID range for a 2-D grid data file type
The 45MG has the capability to add a row or a column, and to change the
incrementation direction after a grid file is created (see “Editing a File” on page 108
for details).
6.7.2.6 Boiler Data File Type
A boiler file is a special file type designed specifically for boiler applications. A
common method for identifying a thickness-measurement location is to use the
following three dimensional approaches:
Elevation
The first dimension refers to the physical distance from the bottom of the boiler to
the top.
NOTE
