DMTA-10022-01EN, Rev. C, January 2015
Chapter 9 154
The B-scan can be actively configured from the B-SCAN screen (see Figure 9-4 on
page 154), which is accessible by pressing [SETUP], and then selecting B-SCAN in the
menu.

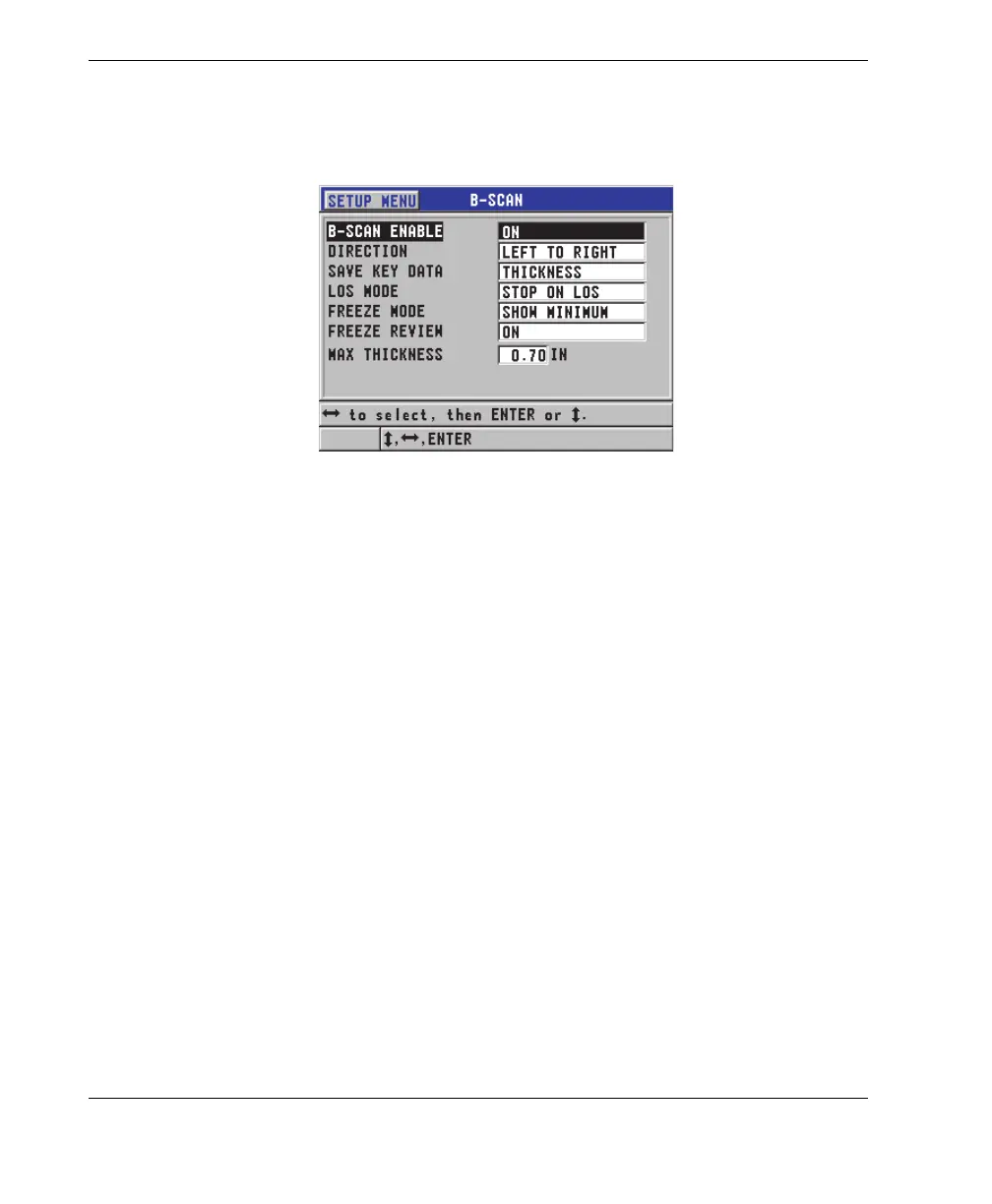

Figure 9-4 Changing B-scan parameters
The B-SCAN screen contains the following parameters:
DIRECTION:
Choose the B-scan direction to match the direction of transducer movement. A
scan direction arrow appears below the left corner of the B-scan display to
indicate the transducer scan direction (see Figure 9-5 on page 155). The data starts
appearing on-screen in the opposite direction.
LEFT TO RIGHT
The transducer scans the part from left to right, and the data appears on the
right of the screen, scrolling right to left.
RIGHT TO LEFT
The transducer scans the part from right to left, and the data appears on the
left of the screen, scrolling left to right.
