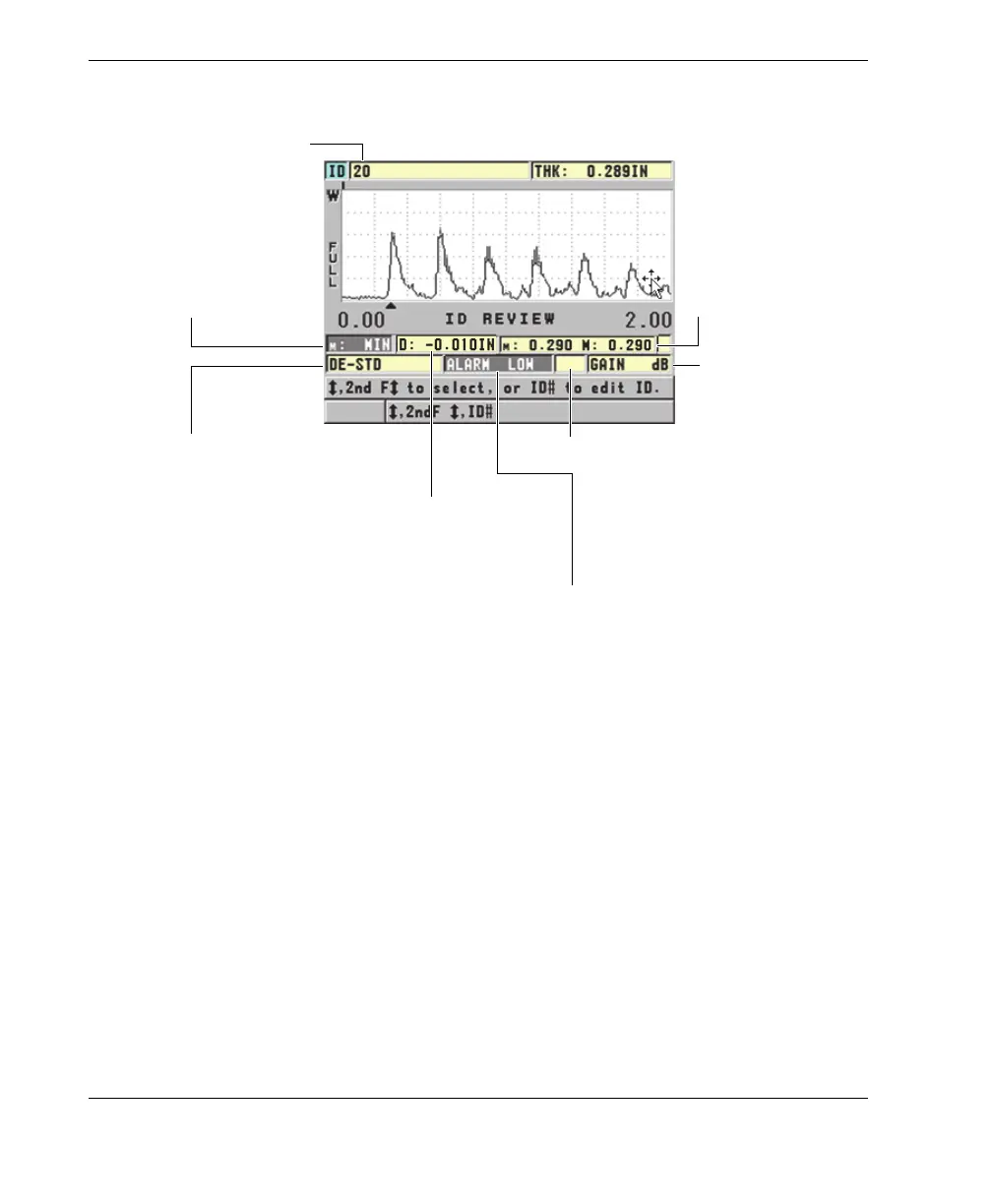

Figure 6-36 Identifying the ID review screen
The ID review screen has three purposes, as follows:
• Reviewing datalogger contents by scanning through stored ID locations in the
active file.
• Moving within the data file and changing the current ID location to any location
that already exists in the data file.
• Changing the current ID location to any location that already exists in the data file
for the purpose of editing that ID location.
6.7.6.1 Reviewing Stored Data and Changing the Active ID
The ID review screen is used to review the data in the active file.
Gain when using a
dual element
transducer
Active ID
Dual element transducer:
DE-STD: Standard
DE-AEtoE: Automatic Echo-to-
Echo
DE-MEtoE: Manual Echo-to-Echo
Single element transducer:
SE-M1: Mode 1
SE-M2: Mode 2
SE-M3: Mode 3
Differential mode:
D:X.XXXIN: Normal
D: XX.X%: Percentage
Alarm:
LOW: Low alarm
HIGH: High Alarm
m: MIN / MAX
LOS: Loss-of-signal indicator
m: Minimum value
M: Maximum value
