DMTA-10022-01EN, Rev. C, January 2015
Chapter 10
168
c) Select SAVE.
8. Press [MEAS] to return to the measurement screen.
The saved setup becomes the active setup.
10.2 Quickly Adjusting Waveform Parameters For Single Element
Transducers
With single element transducers, you can quickly adjust individual waveform
parameters using the [GAIN/WAVE ADJ] key.
To quickly adjust individual waveform parameters
1. Ensure that a single element transducer is connected to the 45MG.
2. In the measurement screen, press [GAIN/WAVE ADJ].
The waveform adjustment parameter appears above the thickness value on the
measurement screen (see Figure 10-2 on page 168).

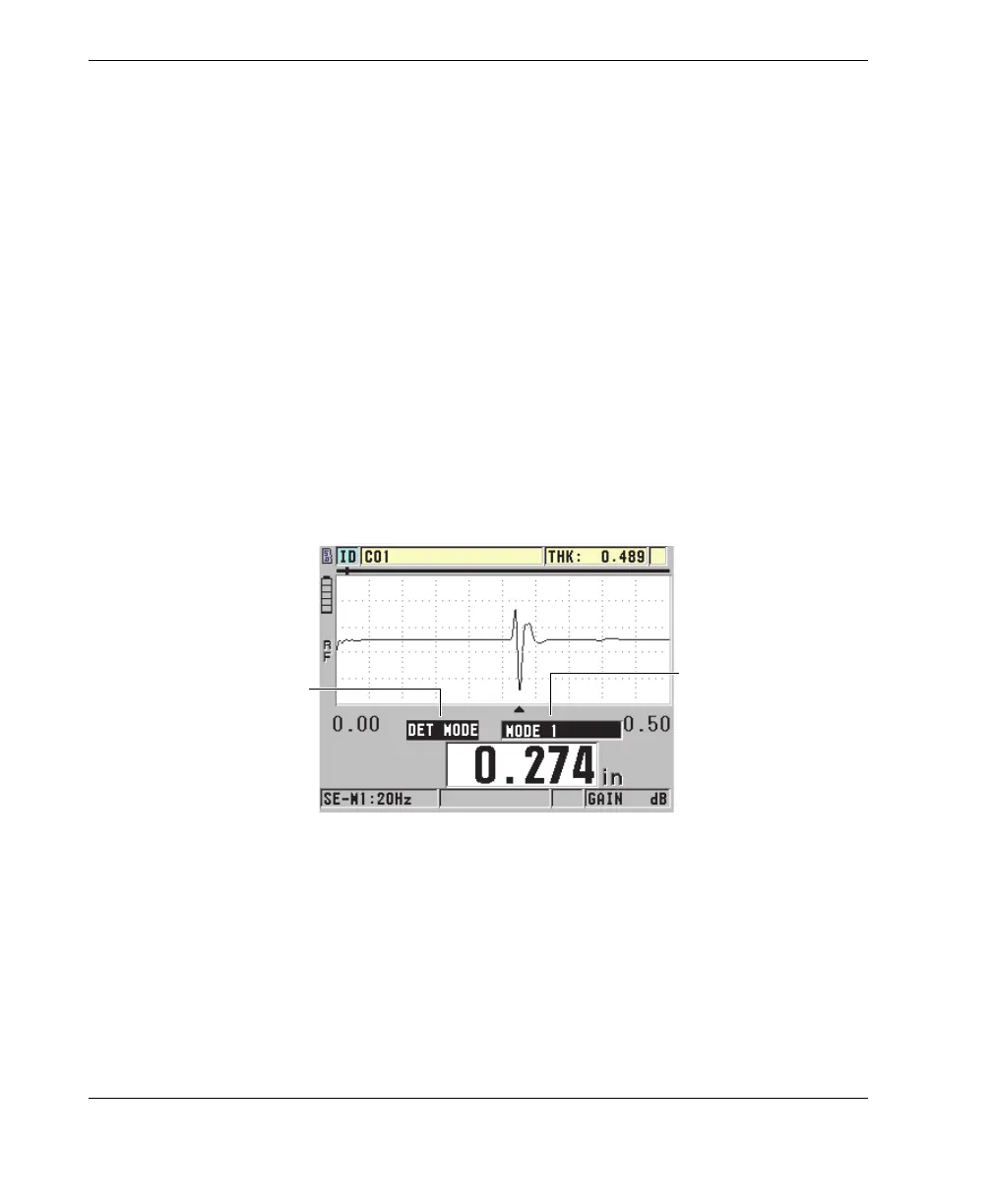

Figure 10-2 Adjusting the waveform parameters
3. Use the [] or [] key to select the parameter that you want to adjust. The choices
are as follows:
• DET MODE (see “Detection Modes” on page 169 for details)
• M3 BLANK in mode 3 only (see “Mode 3 Echo Blank” on page 182 for
details)
Waveform parameter
value
Waveform parameter
