Olympus 45MG - Activating and Configuring the DB Grid; Figure 9-8 Changing DB Grid Parameters; Figure 9-9 Grid Transposition Example

DMTA-10022-01EN, Rev. C, January 2015
Chapter 9 160
9.4.1 Activating and Configuring the DB Grid
Activate and configure the DB grid options from the DB GRID screen.
To activate and configure the DB grid
1. In the measurement screen, press [SETUP], and then select DB GRID.
2. In the DB GRID screen (see Figure 9-8 on page 160), perform the following steps.

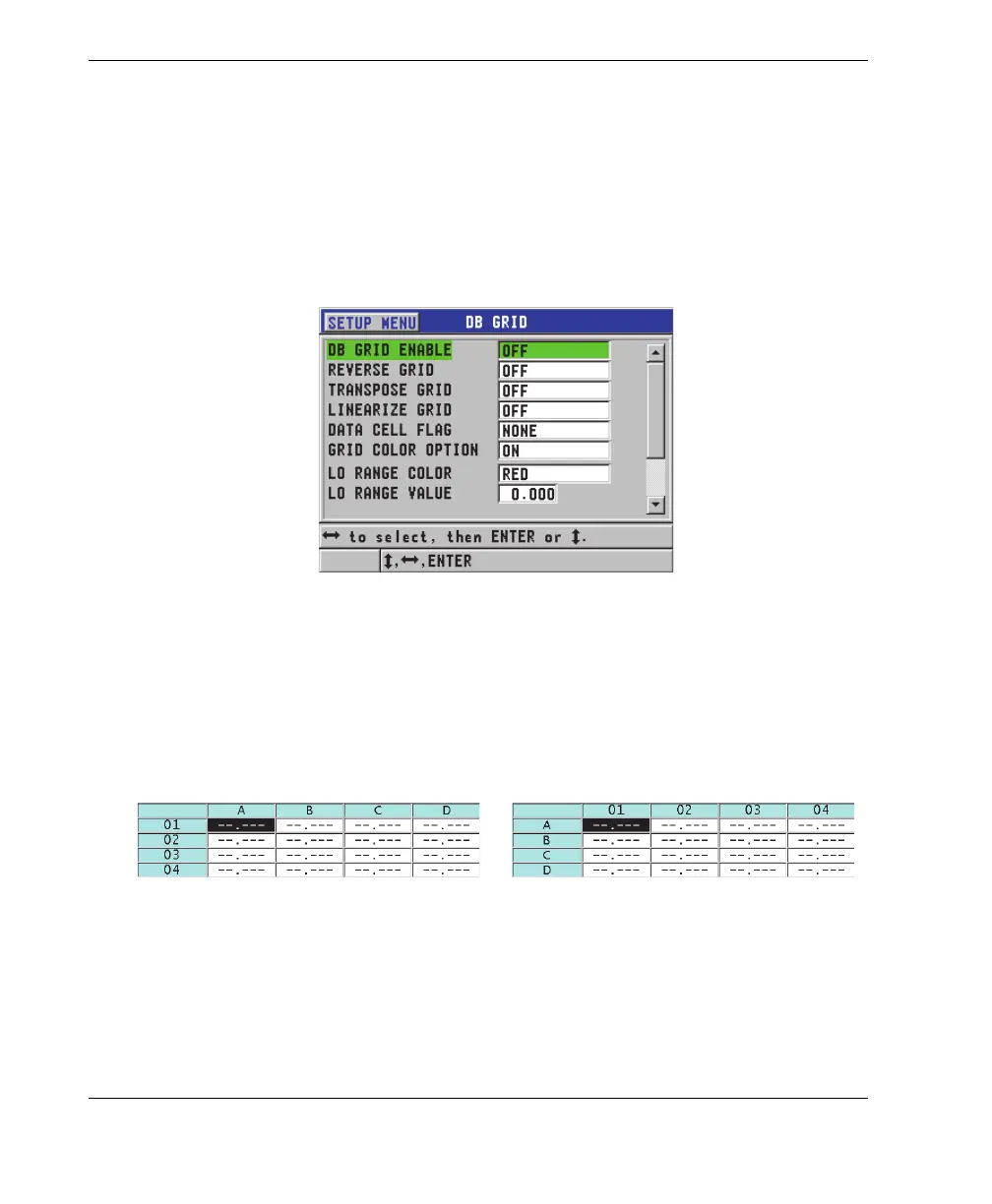

Figure 9-8 Changing DB grid parameters
3. Set DB GRID ENABLE to ON to activate the DB grid.
4. Set TRANSPOSE GRID to ON to interchange the rows and columns in a grid
(see Figure 9-9 on page 160).
Figure 9-9 Grid transposition example
TRANSPOSE GRID set to OFF
TRANSPOSE GRID set to ON
