Olympus 45MG - Saving Data; Figure 5-12 Reading the Measured Thickness; Figure 5-13 the Active File Name Appearing in the ID Bar

DMTA-10022-01EN, Rev. C, January 2015
Basic Operation 65

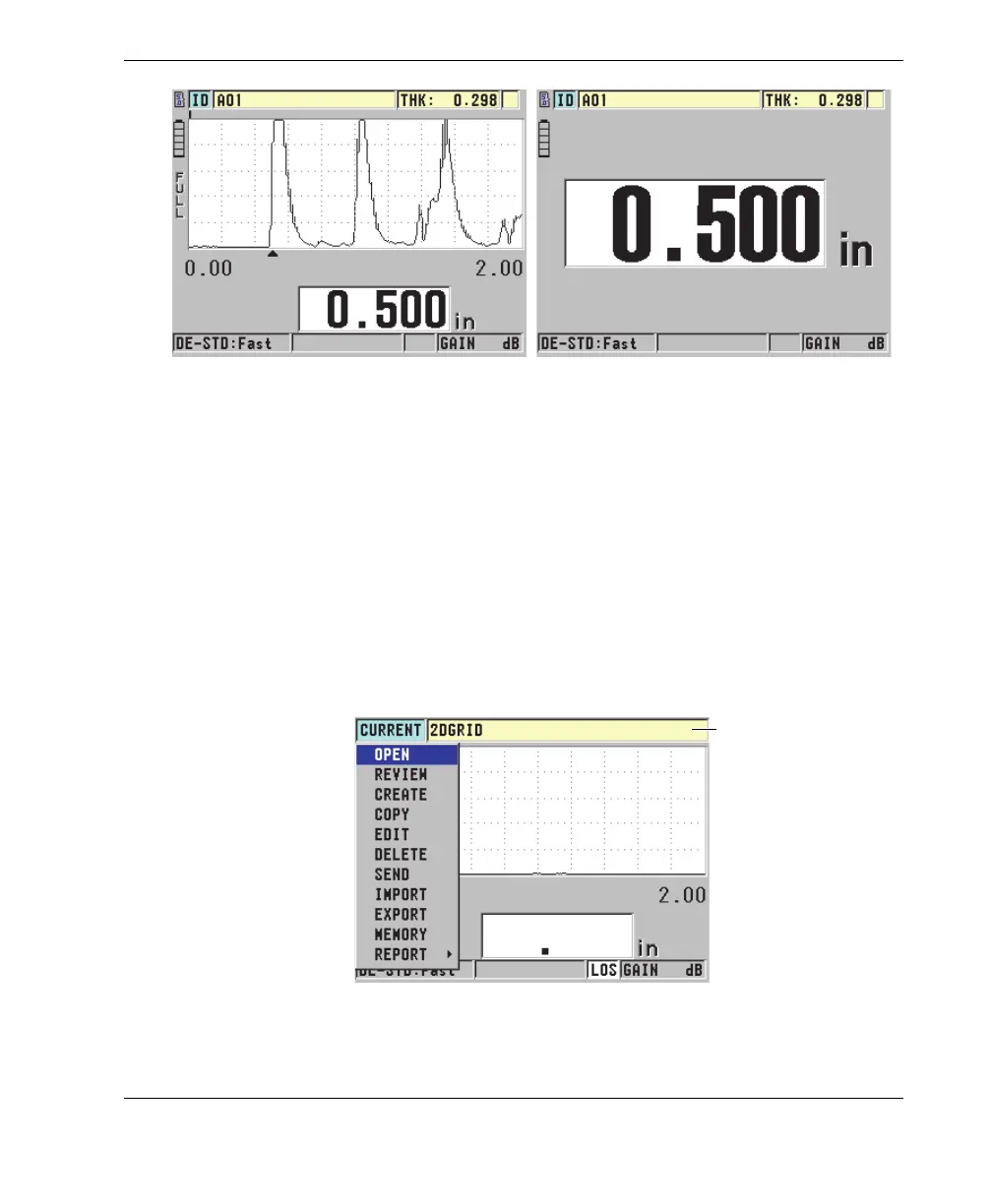

Figure 5-12 Reading the measured thickness
5.4 Saving Data
The 45MG optional datalogger is a file-based system, in which one file is opened at a
time. The active file stores a measurement at a thickness-measurement location ID.
Each time you press [SAVE], the displayed value is saved to the active file at the
current ID. The ID is automatically incremented for the next measurement. When you
press [FILE], the name of the active file appears in the ID bar above the menu (see
Figure 5-13 on page 65).
Figure 5-13 The active file name appearing in the ID bar
Without Waveform software optionWith Waveform software option
Name of active file
