DMTA-10022-01EN, Rev. C, January 2015
Chapter 11
194

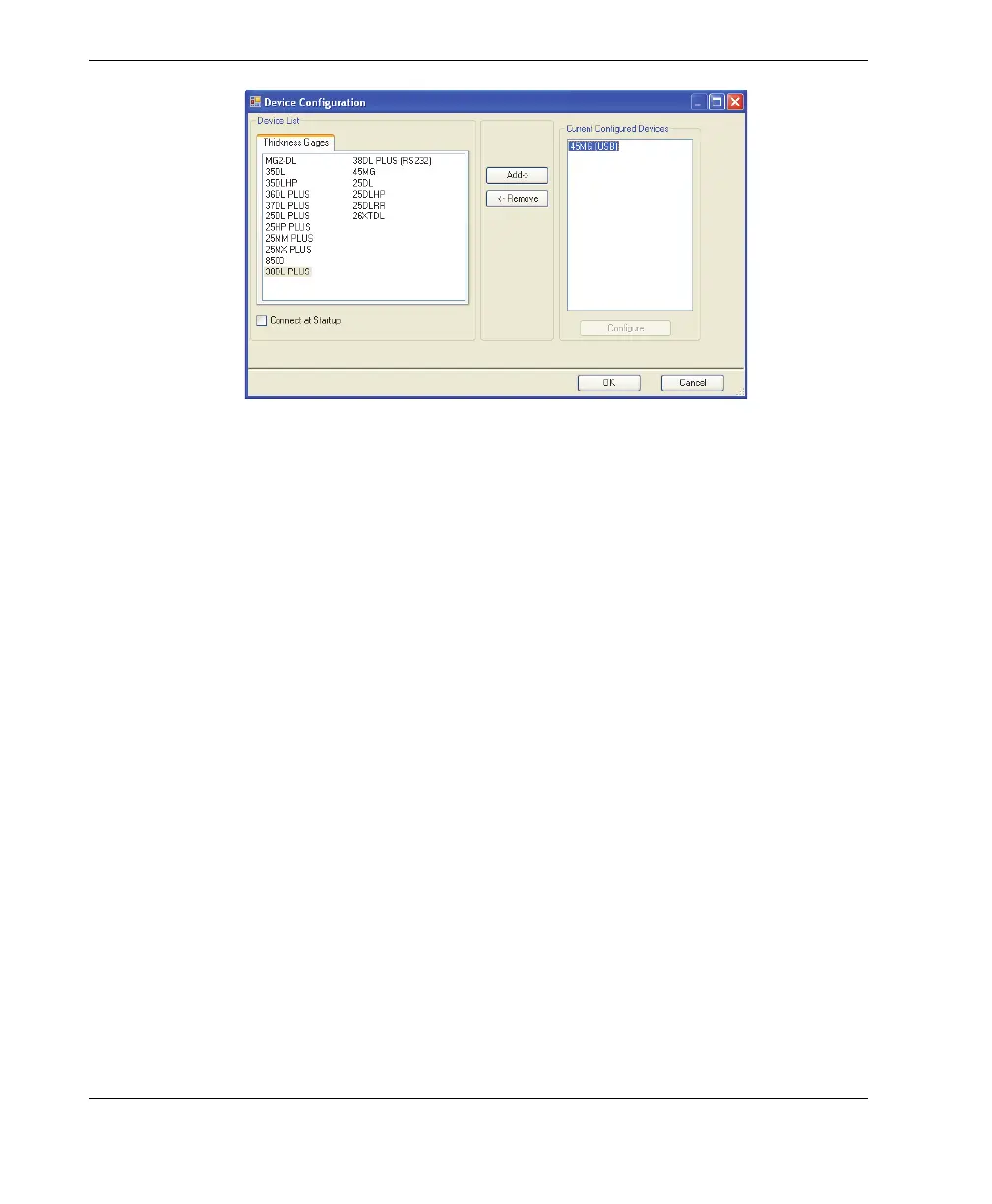

Figure 11-4 The Device Configuration dialog box
5. In GageView, perform the following tasks:
a) On the menu, select Device > Tools.
b) In the Device Tools dialog box (see Figure 11-5 on page 195), select Screen
Capture, and then click Receive.
The screen image appears once the data transfer is complete.
c) Click Copy to copy the screen capture to the Windows clipboard.
OR
Click Save to save the image as a BMP file using the folder and file name of
your choice.
