7. In the Hardware configuration area, set the hardware configuration and check whether Primary
Test Manager recognized all connected CB MC2 modules.

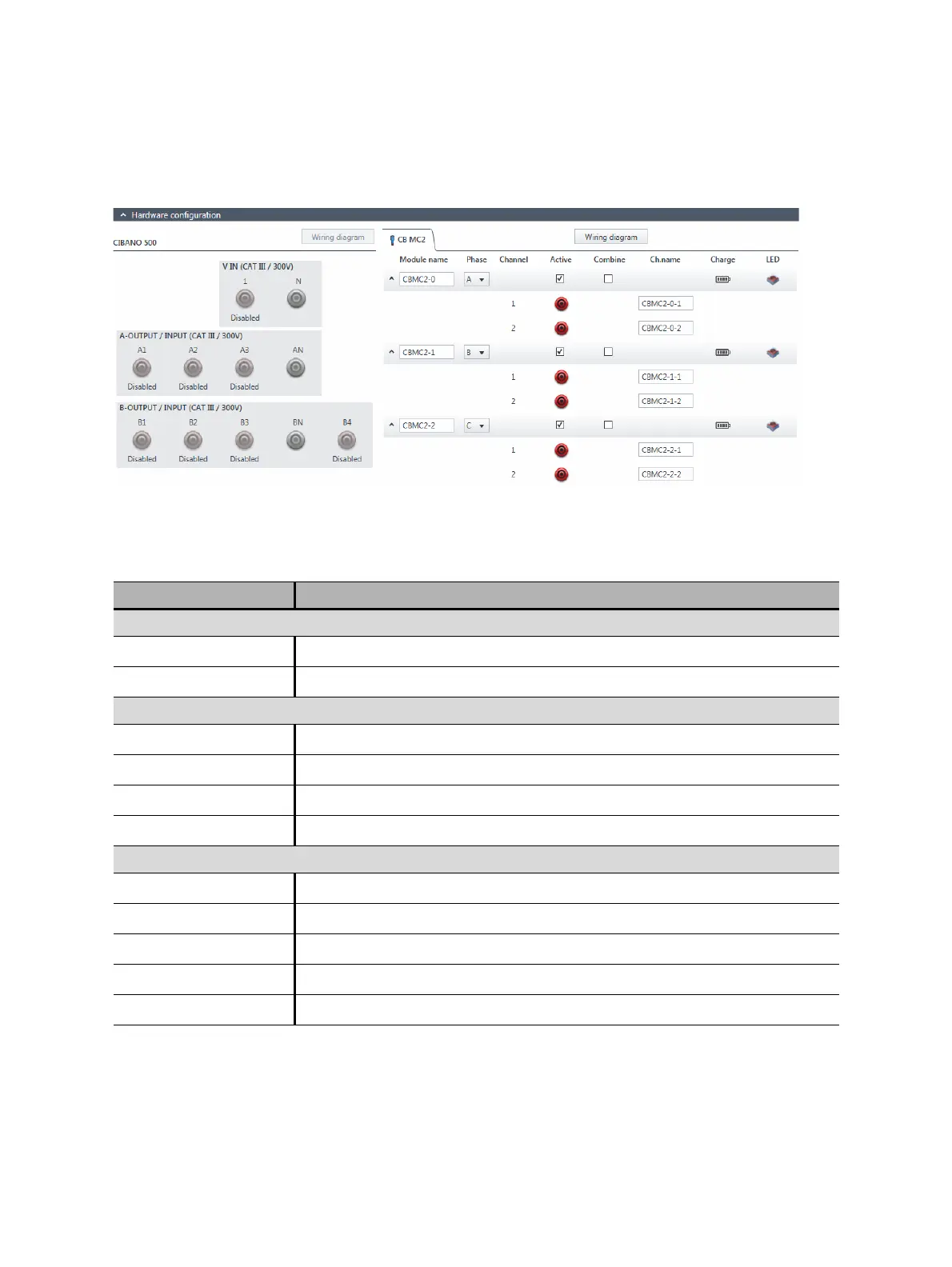

Figure 17-22: Hardware configuration of the Contact Resistance test
Table 17-33: Hardware configuration options of CIBANO 500
CIBANO 500 Option
V IN (CAT III / 300 V)
1 External source or Disabled
N Neutral connection of VIN
A-OUTPUT / INPUT (CAT III / 300 V)
A1 Disabled
A2 Disabled
A3 Disabled
AN Common neutral connection for outputs/inputs in group A
B-OUTPUT / INPUT (CAT III / 300 V)
B1 Trip or Disabled
B2 Close or Disabled
B3 Supply or Disabled
BN Neutral connection of outputs in group B
B4 Motor or Disabled
