Omicron CIBANO 500 PTM User Manual

OMICRON 241
Off-service diagnostic methods
4. Make sure that all cable connectors are clean and dry before being tightly connected.
5. Connect CIBANO 500 to the motor of the circuit breaker according to the wiring diagram displayed in
Primary Test Manager and the following figure.

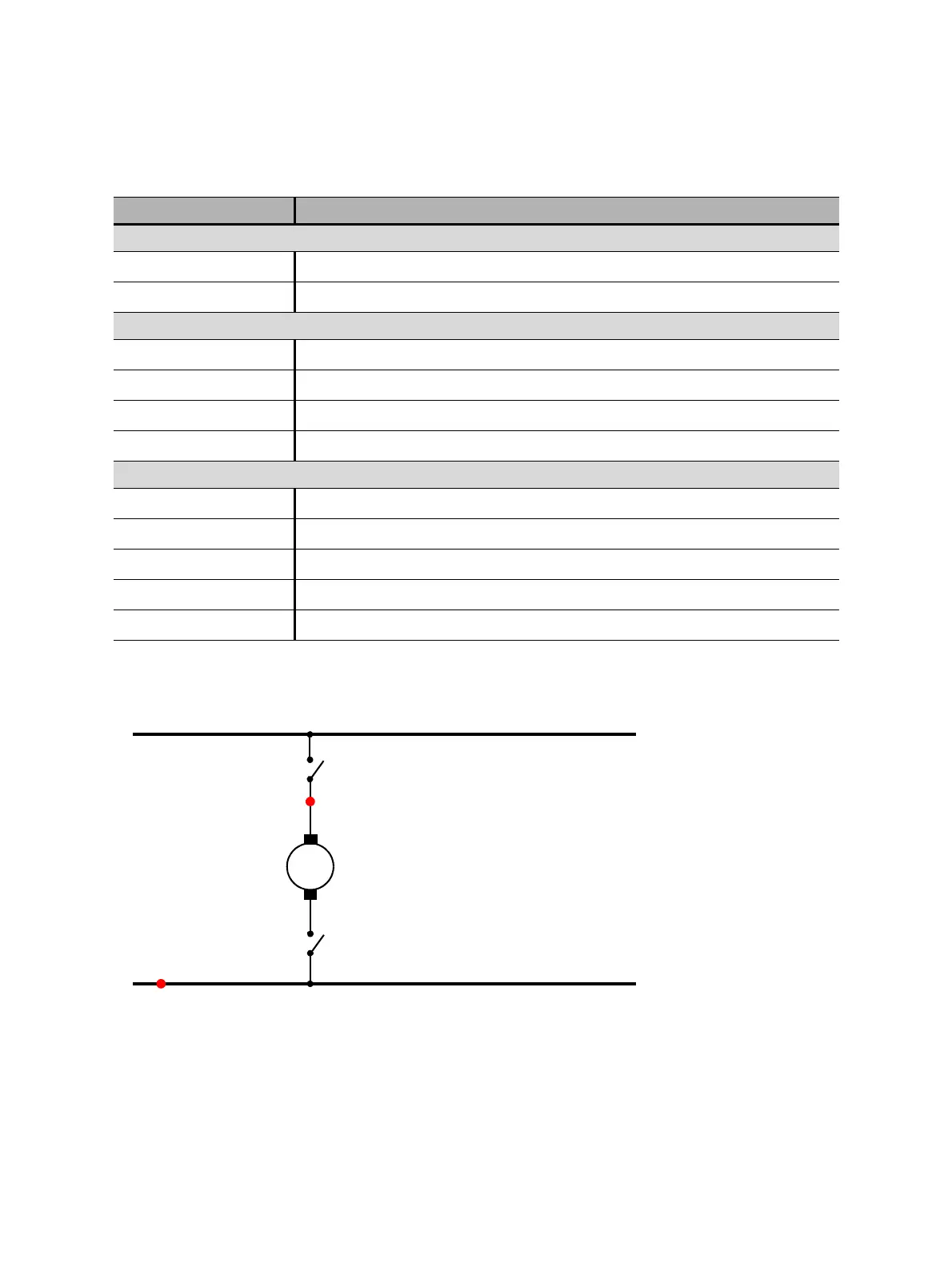

Figure 17-47: Connecting CIBANO 500 to the circuit breaker for the Motor Current test (The end position
switch opens when the spring is charged.)
Table 17-80: Hardware configuration options of CIBANO 500
CIBANO 500 Option
V IN (CAT III / 300 V)
1 External source or Disabled
N Neutral connection of VIN
A-OUTPUT / INPUT (CAT III / 300 V)
A1 Motor A or Disabled
A2 Motor B or Disabled
A3 Motor C or Disabled
AN Common neutral connection for outputs/inputs in group A
B-OUTPUT / INPUT (CAT III / 300 V)
B1 Trip or Disabled
B2 Close or Disabled
B3 Supply or Disabled
BN Neutral connection of outputs in group B
B4 Motor or Disabled
+
Common (for example, BN)
Motor (for example, B4)
End position switch
–
Motor
